| Price | negotiable |
| MOQ | 100pcs |
| Delivery Time | 15-25 days |
| Brand | HBGB |
| Place of Origin | China |
| Certification | ISO 9001 |
| Model Number | GB-006 |
| Packaging Details | Steel Pallet or customized |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000 pcs per day |
| Place of Origin | China | sales mode | factory direct sale |
| Bearing bar pitch | 20,25,30,32.5,34.3,40,50,60,62,65 mm | Product namee | Galvanized Serrated Bar Grating |
| Packaging Details | Steel Pallet or customized | Model Number | GB-006 |
| Supply Ability | 2000 pcs per day | Certification | ISO 9001 |
| Grating type | Serrated type | Surface treatment | Galvanized, painting, untreated, powder coating |
| Brand Name | HBGB | Payment Terms | L/C, T/T |
| Grating shape | Square, rectangle, circle,anomaly,ect | Price | negotiable |
| Delivery Time | 15-25 days | Minimum Order Quantity | 100pcs |
| Features | Highly Anti-corrosion | Bearing bar size | 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8 mm, etc |
| Cross Bar Size | 6 mm, 8 mm, 10 mm | Grating color | Silver,black,painted in colorful |

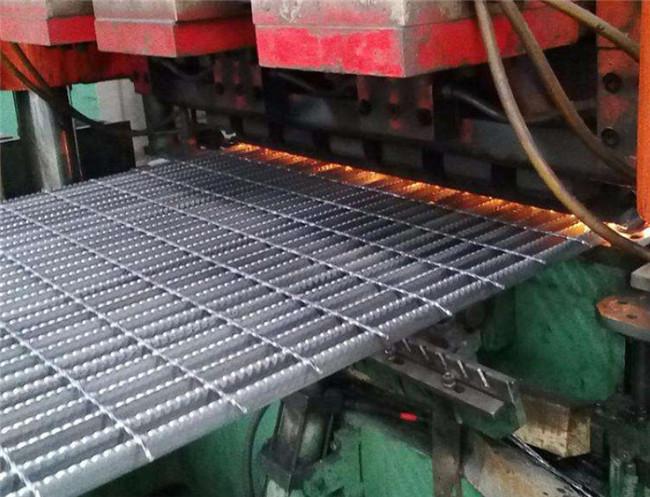

Steel
Grating
is
made
by
welding
with
flat
steel
and
bars
with
certain
distances.
It
goes
through
cutting,
opening,
edging
and
other
processes.
The
products
enjoy
the
feature
of
high
strength,
light
structure,
high
bearing,
convenience
for
loading
and
other
features.
The
hot
dipped
zinc
coating
gives
the
product
excellent
anti-corrosion.
Bearing
Bars
–
Load
carrying
main
elements
made
from
steel,
aluminum,
or
stainless
steel,
extending
in
the
direction
of
the
grating
span.
Bearing
Bar
Centers
–
The
distance
center-to-center
of
the
bearing
bars.
Carriers
–
Flats
or
angles
which
are
welded
to
the
grating
panel
and
nosing
of
a
stair
tread
and
are
bolted
to
a
stair
stringer
to
support
the
tread.
Clear
Opening
–
The
distance
between
faces
of
bearing
bars
in
rectangular
gratings,
or
between
a
bent
connecting
bar
and
a
bearing
bar
in
a
riveted
grating.
Cross
Bars
–
The
connecting
bars
which
extend
across
the
bearing
bars,
usually
perpendicular
to
them.
They
may
be
bent
into
a
corrugated
or
sinuous
pattern
and,
where
they
intersect
the
bearing
bars,
are
welded,
forged
or
mechanically
locked
to
them.
Cross
Bar
Centers
–
The
distance
center-to-center
of
the
cross
bars.
There are three types:hot-dipped galvanized , electro-galvanized and spraying brushing and soaking.anti-acid and alkali corrosion capacity the range PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good anti-corrosive property.surface treatment.
| Product name | *Steel grating |
| Material |
*Mild steel (Carbon steel) *stainless steel 304, SS316 |
| Material standard |
*USA:ASTM A36 *UK:BS4360 *Australia:AS3679 *China:Q235 |
| Bearing bar type |
*Smooth/flat bar *serrated/toothed bar *Smooth I bar *Serrated I bar |
| Bearing bar thickness | *2mm to 10mm, 3mm and 5mm recommended |
| Bearing bar pitch | *12.5-30mm/40mm/50mm/60mm/80mm/90up,30and40mm recommended |
| Bearing bar specification |
*flat bar and serrated bar 20*3,20*5,25*3,25*5,30*3,30*4,30*5,32*3,32*5,35*3,35*5,40*3,40*5, 45*5,50*3,50*5,55*5,60*5,65*5,70*6,75*6,75*8,80*8,90*8,100*8, 120*8,130*8,150*8 *I-section bar 25*5*3,32*5*3,38*5*3,44*5*3,50*5*3,50*7*4,55*7*4,60*7*4, 65*7*4,75*7*4 |
| Cross bar | *5*5mm,6*6mm,8*8mm |
| Cross bar pitch | *30mm,38mm,50mm,76mm,100mm,50mm and 100mm recommended |
| Surface treatment |
*Hot dipped galvanized *Untreated(self-color) *Painted |
| HDG standard |
*ASTM A123 *BS729 *AS1650 |
| Grating Standard |
*AS1657-2013 *BS4592-2006 *ANSI/NAAMM(MBG531-88) |
*
Anti
slip
bridge
decking
*
Bridge
walkway
*
Drainage
systems
*
Fire
truck
platforms
*
Mass
transit
platforms
*
Marine
and
ship
decks
*
Mezzanines
*
Non-slip
walkways
*
Non-skid
pit
covers
*
Slip
resistant
platforms
*
General
Industries
*
Truck
platforms
*
Vault
covers
*
Wet
Decks
*
Wastewater
treatment
plant
grating
*
Stair
treads
