| Price | negotiable |
| MOQ | 100pcs |
| Delivery Time | 10-20 days |
| Brand | HBGB |
| Place of Origin | China |
| Certification | ISO, SGS |
| Model Number | GB-005 |
| Packaging Details | in bundle or bulk |
| Payment Terms | L/C, T/T |
| Supply Ability | 3000 pcs per day |
| Place of Origin | China | Packaging Details | in bundle or bulk |
| Mesh length | max 6m | Material | Q195, Q235 etc. |
| Spacing | 100, 150, 200, 250 mm | Model Number | GB-005 |
| Mesh width | max 2.4m | Supply Ability | 3000 pcs per day |
| Certification | ISO, SGS | Steel bar type | round steel bar, ribbed steel bar |
| Brand Name | HBGB | Payment Terms | L/C, T/T |
| Price | negotiable | Delivery Time | 10-20 days |
| Product name | reinforcing welded wire mesh | Minimum Order Quantity | 100pcs |
| Process of Mesh | welded | Application | Road, bridge and tunnel,building construction |
| Diameter of rod | customized |

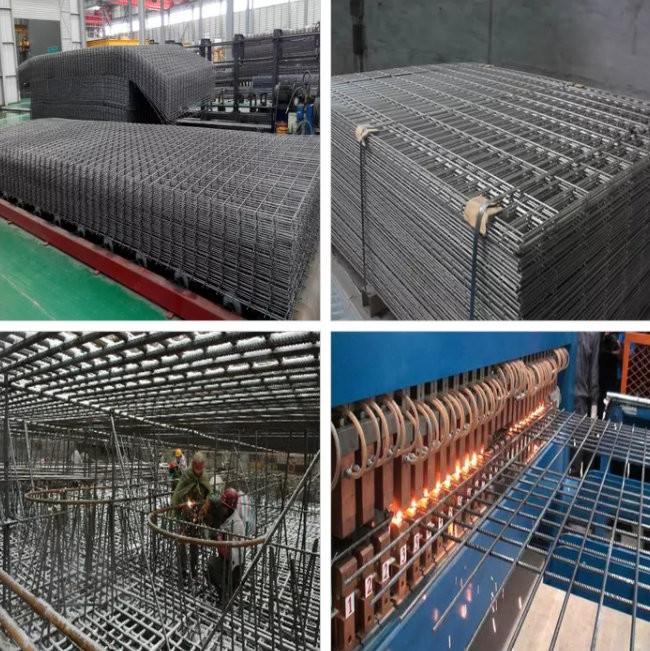

Concrete Reinforcing Welded Wire Mesh Description:
Reinforcing welded wire mesh is made up of reinforcing wires welded at the intersection spots, which does not disturb the structure of the metal. It's easier to move and laid in concrete, and the mesh still holds its shape. With the high strength and good stability, it's widely used for road reinforcement and concrete structure reinforcement in building.
Concrete Reinforcing Welded Wire Mesh Detailed Information:
|
Product
Name
|
Concrete
Welded
Wire
Mesh/Welded
Reinforcing
Rib
Mesh
|
||
|
Material:
|
Low
carbon
steel,
Q195,Q235
etc.
|
Wire
diameter:
|
3-16mm
|
|
Length:
|
1m-12m
or
custom
|
Width:
|
0.5m-3m
or
custom
|
|
Hole
shape:
|
Rectangle,
Square
|
Mesh
opening:
|
100--400mm
or
custom
|
|
Applications:
|
widely
used
in
construction
reinforcemet,the
ground
for
the
tunnels,
bridges,
highway,
airport
and
wharf,
also
in
construction
of wall body. |
||
Theoretical
weight
of
welded
reinforcement
mesh
(KG)
=
length
of
reinforcement
used
in
reinforcement
mesh
(M)
*
wire
diameter(MM)*
wire
diameter
(MM)
*
0.00617
(φ10
reinforcement
0.616539kg
/
m)
1.
To
advance
the
quality
of
engineering;
2.
Improve
the
function
of
concrete
anti-seismic
and
crack
resistance;
3.
Reduce
the
amount
of
steel
usage;
4.
High
operating
effciency.
| Concrete Reinforcing Mesh | ||||
SQUARE MESH6m X 2.4m Sheets |
Code |
Longitudinal Wires: Number x Size (mm) @ Pitch (mm) |
Cross Wires: Number x Size (mm) @ Pitch (mm) |
Approx Mass Kg/Sheet |
| SL52 |
10 x 4.77mm @ 200mm +4 x 4.00mm @ 100mm |
30 x 4.77mm @ 200mm | 21kg | |
| SL62 |
10 x 6.00mm @ 200mm +4 x 4.77mm @ 100mm |
30 x 6.00mm @ 200mm | 33kg | |
| SL72 |
10 x 6.75mm @ 200mm +4 x 4.77mm @ 100mm |
30 x 6.75mm @ 200mm | 41kg | |
| SL82 |
10 x 7.60mm @ 200mm +4 x 5.37mm @ 100mm |
30 x 7.60mm @ 200mm | 52kg | |
| SL92 |
10 x 8.60mm @ 200mm +4 x 6.00mm @ 100mm |
30 x 8.60mm @ 200mm | 66kg | |
| SL102 |
10 x 9.50mm @ 200mm +4 x 6.75mm @ 100mm |
30 x 9.50mm @ 200mm | 80kg | |
| SL81 | 25 x 7.60mm @ 100mm | 60 x 7.60mm @ 100mm | 105kg | |
TRENCH MESH6m Sheets |
Code |
Longitudinal Wires: Number x Size (mm) @ Pitch (mm) |
Cross Wires: Number x Size (mm) @ Pitch (mm) |
Approx Mass Kg/Sheet |
| L8TM3 | 3 x 7.60mm @ 100mm | 4.77mm @ 300mm | 7kg | |
| L8TM4 | 4 x 7.60mm @ 100mm | 4.77mm @ 300mm | 9kg | |
| L8TM5 | 5 x 7.60mm @ 100mm | 4.77mm @ 300mm | 11kg | |
| L11TM3 | 3 x 10.65mm @ 100mm | 4.77mm @ 300mm | 13kg | |
| L11TM4 | 4 x 10.65mm @ 100mm | 4.77mm @ 300mm | 18kg | |
| L11TM5 | 5 x 10.65mm @ 100mm | 4.77mm @ 300mm | 22kg | |
| L12TM3 | 3 x 11.90mm @ 100mm | 4.77mm @ 300mm | 16kg | |
| L12TM4 | 4 x 11.90mm @ 100mm | 4.77mm @ 300mm | 22KG | |
| L12TM5 | 5 x 11.90mm @ 100mm | 4.77mm @ 300mm | 27KG |
RECTANGULAR MESH6m x 2.4m Sheets |
Code |
Longitudinal Wires: Number x Size (mm) @ Pitch (mm) |
Cross Wires: Number x Size (mm) @ Pitch (mm) |
Approx Mass Kg/Sheet |
| RL718 | 25 x 6.75mm @ 100mm | 30 x 7.00mm @ 200mm | 68kg | |
| RL818 | 25 x 7.60mm @ 100mm | 30 x 7.00mm @ 200mm | 79kg | |
| RL918 | 25 x 8.55mm @ 100mm | 30 x 7.00mm @ 200mm | 93kg | |
| RL1018 | 25 x 9.50mm @ 100mm | 30 x 7.00mm @ 200mm | 109kg | |
| RL1118 | 25 x 10.65mm @ 100mm | 30 x 7.00mm @ 200mm | 131kg | |
| RL1218 | 25 x 11.90mm @ 100mm | 30 x 7.00mm @ 200mm | 157 |
Retaining
and
shear
walls
Beams
and
columns
Concrete
paving
overlays
Precast
concrete
elements
Suspended
floor
slabs
Swimming
pool
and
gunite
construction
