| Price | negotiable |
| MOQ | 100pcs |
| Delivery Time | 10-20 days |
| Brand | HBGB |
| Place of Origin | China |
| Certification | ISO 9001 |
| Model Number | GB-005 |
| Packaging Details | in bundle or bulk |
| Payment Terms | L/C, T/T |
| Supply Ability | 3000 pcs per day |
| Place of Origin | China | Sample | Available |
| Packaging Details | in bundle or bulk | Material | Low-Carbon Iron Wire |
| Model Number | GB-005 | Supply Ability | 3000 pcs per day |
| Rebar type | cold-rolled steel rebar | Certification | ISO 9001 |
| Mesh Length | max 6000 mm | Mesh Width | max 2400mm |
| Brand Name | HBGB | Payment Terms | L/C, T/T |
| Wire diameter | 0.3mm-8.0mm | Price | negotiable |
| Delivery Time | 10-20 days | Product name | Concrete Reinforcement Welded Wire Mesh |
| Opening | 10*10 15*15 20*20(cm), customized | Type of Bar | ribbed steel |
| Minimum Order Quantity | 100pcs | Application | for Construction |
Welded
steel
mesh
for
reinforced
concrete
is
a
welded
steel mesh
for
reinforced
concrete
with
reinforced
concrete
and
cold
rolled
ribbed
steel
or
cold
rolled
round
steel.
It
is
a good
and
efficient
material
for
concrete
distribution.
Its emergence
is
of
great
significance
to
improve
building
con-
struction
efficiency,
structural
quality
and
safety
reliability, and
to
change
traditional
building
construction
methods.

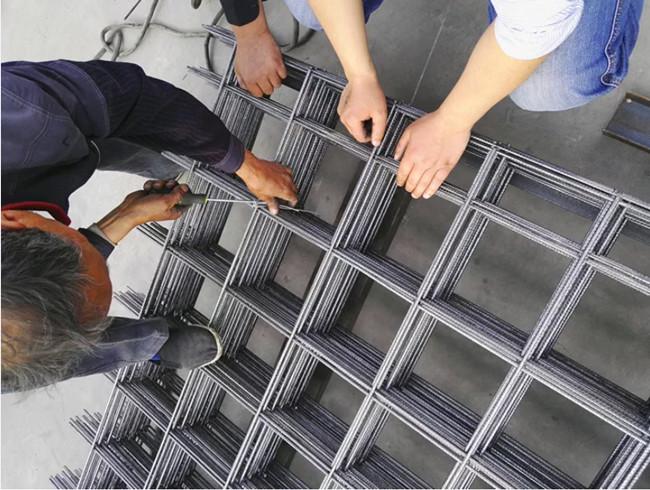

Concrete Reinforcement Welded Wire Mesh Details:
1)
Cold-rolled
steel
ribbed
rebar
2)
Cold-rolled
steel
round
rebar
3)
Hot-rolled
steel
ribbed
rebar
Rebar
dia:
6mm,8mm,10mm
Width:
2200mm,
2300mm,
2400mm
Length:
5800mm,
6000mm
Mesh
Hole:
100mm
x100mm,150mm
x150mm,200mm
x200mm

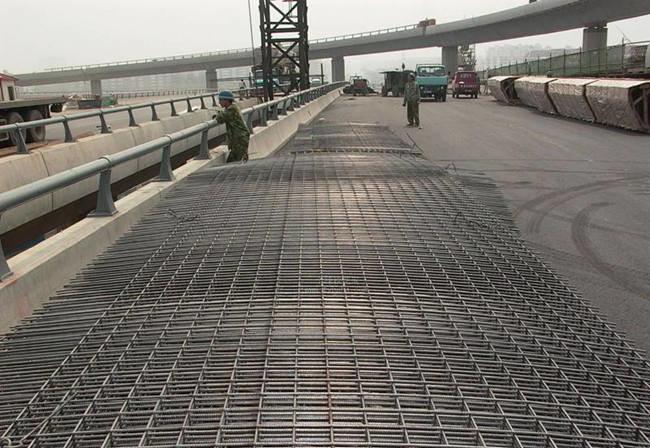

Welded steel bar panels are widely used in construction reinforcemet,the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.
FIRSTLY, GERMAN STANDARD DIN488 (SIZE:2150MMX5000MM)
| Items | Std Unit |
Longitudinal
Wires(mm) |
Cross Wires(mm) |
Pitch of
wire(mm) |
Mass(Kg) | Mass(Kg/m2) |
| Q131 | Sheet | 5 | 5 | 150 x 150 | 22.476 | 2.091 |
| Q188 | Sheet | 6 | 6 | 150 x 150 | 32.401 | 3.014 |
| Q221 | Sheet | 6.5/5.0 | 6.5 | 150 x 150 | 33.707 | 3.136 |
| Q295 | Sheet | 7.5/5.5 |
7.5 |
150 x 150 | 44.245 | 4.116 |
| Q378 | Sheet | 8.5/6 | 8.5 | 150 x 150 | 66.659 | 5.157 |
SECONDLY, AUSTRALIA AND NEW ZEALAND STANDARD AS/NZS 4671:2001(SIZE:6000X2400MM)
| Number | Std Unit |
Longitudinal
Wires(mm) |
Edge Wires(mm) | Cross Wires(mm) | Mass(Kg) |
| SL81 (F81) | Sheet | 7.6 @ 100 | 7.60 @ 100 | 7.60 @ 100 | 105 |
| SL102 (F102) | Sheet | 9.5 @ 200 | 6.75 @ 100 | 9.50 @ 200 | 80 |
| SL92 (F92) | Sheet | 8.6 @ 200 | 6 @ 100 | 8.60 @ 200 | 66 |
| SL82 (F82) | Sheet | 7.6 @ 200 | 5.37 @ 100 | 7.60 @ 200 | 52 |
| SL72 (F72) | Sheet | 6.75@ 200 | 4.77 @ 100 | 6.75 @ 200 | 41 |
| SL62 (F62) | Sheet | 6 @ 200 | 4.77 @ 100 | 6 @ 200 | 33 |
| SL52 (F52) | Sheet | 4.77 @ 200 | 4.77 @ 100 | 4.77 @ 200 | 21 |
IN THE END, BRITISH STANDARD BS4483
| Ref No. | Std Unit |
Longitudinal
Wires(mm) |
Cross Wires(mm) |
Pitch of
wire(mm) |
No. of sheet
per ton |
Mass(Kg/m2) |
| A393 | Sheet | 10 | 10 | 200 x 200 | 15 | 6.16 |
| A252 | Sheet | 8 | 8 | 200 x 200 | 22 | 3.95 |
| A193 | Sheet | 7 | 7 | 200 x 200 | 29 | 3.02 |
| A142 | Sheet | 6 | 6 | 200 x 200 | 40 | 2.22 |
| A98 | Sheet | 5 | 5 | 200 x 200 | 57 | 1.54 |
Steel bar grating costs less time and labor in work. It saves about 50 to 70 percent work time compared with common binding wire mesh. The use of bar grating can also strengthen the concrete parts to reduce surface breaking ratio. Welded bar grating for reinforcement is especially suitable for big area concrete engineering. Using of welded bar reinforcement can save about 10 percent of the total cost of the project.
