| Price | negotiable |
| MOQ | 100PCS |
| Delivery Time | 10-25days |
| Brand | HBGB |
| Place of Origin | China |
| Certification | ISO 9001 |
| Model Number | GB-003 |
| Packaging Details | compacted before packaging, in bundle |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 pcs per day |
| Place of Origin | China | Selvage wire | 3.4 mm or customized |
| Packaging Details | compacted before packaging, in bundle | Box size | 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m. |
| Material | steel iron wire | Model Number | GB-003 |
| Aperture | 60mm x80mm , 80mm x100mm , 100mm x 120mm , 120mm x 150mm | Supply Ability | 1000 pcs per day |
| Feature | Anti-corrosion, fexibility | Certification | ISO 9001 |
| Brand Name | HBGB | Payment Terms | L/C, T/T, Western Union |
| Tie wire | 2.2 mm or customized | Wire diameter | 2.7mm |
| Price | negotiable | Delivery Time | 10-25days |
| Product name | Galvanized Gabion Box | Minimum Order Quantity | 100PCS |
| Process method | hexagonal hole weaving | Finishing | galvanized, pvc coated, or galfan coated |
Gabion Box are multiple twisted hexagonally woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.
1.Cost
effective
and
environmentally
friendly
alternative
to
concrete
system.
2.The
Gabion
structure
blends
easily
and
harmoniously
with
natural
surroundings.
3.Simple
and
speedy
installation,
using
natural
or
quarried
stones
obtained
locally.
4.Ability
to
deform
without
cracking
allowing
the
structure
to
withstand
any
unpredictable
movement
or
settlement
without
loss
or
stability.
5.Higher
resistance
to
natural
forces
due
to
better
tensile
strength.
6.Majority
of
manpower
need
not
to
be
skilled
and
speed
at
which
the
work
is
carried
out
is
unparalleled
in
civil
engineering,
besides
making
it
cost
effective.
7.Easy
of
repair
to
any
damaged
cages,
with
minimal
expense.
8.The
use
of
Gabions
as
retaining
structures
provides
a
low
cost
alternative
to
concrete
or
masonry
retaining
walls.
Mesh size and Wire diameter of Galvanized Gabion Box:
|
Mesh Size |
Galvanized Gabion( Dia.mm) |
PVC Gabion (Inside Dia/Outside Dia.mm) |
|
60x80mm |
Φ2.0-2.8 |
Φ2.0/3.0-2.8/3.8 |
|
80x100mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
|
80x120mm |
Φ2.2-3.2 |
Φ2.2/3.2-3.0/4.0 |
|
100x120mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
|
100x150mm |
Φ2.4-3.5 |
Φ2.4/3.4-3.2/4.2 |
|
120x150mm |
Φ2.7-4.0 |
Φ2.7/3.7-3.5/4.5 |
| Length (m) | Width (m) | Height (m) | Spacer number | Volume (m2) | Tolerance range |
| 2.0 | 1.0 | 0.15---0.3 | 1 | 0.3~0.6 |
Length :±/-3% Width :±/-5% Height :±/-5% |
| 3.0 | 1.0 | 0.15---0.3 | 2 | 0.45~0.9 | |
| 4.0 | 1.0 | 0.15---0.3 | 3 | 0.6~1.2 | |
| 2.0 | 1.0 | 0.5 | 1 | 1.0 | |
| 3.0 | 1.0 | 0.5 | 2 | 1.5 | |
| 4.0 | 1.0 | 0.5 | 3 | 2.0 | |
| 1.0 | 1.0 | 1.0 | 0 | 1.0 | |
| 1.5 | 1.0 | 1.0 | 0 | 1.5 | |
| 2.0 | 1.0 | 1.0 | 1 | 2.0 | |
| 3.0 | 1.0 | 1.0 | 2 | 3.0 | |
| 4.0 | 1.0 | 1.0 | 3 | 4.0 |
Shipping:

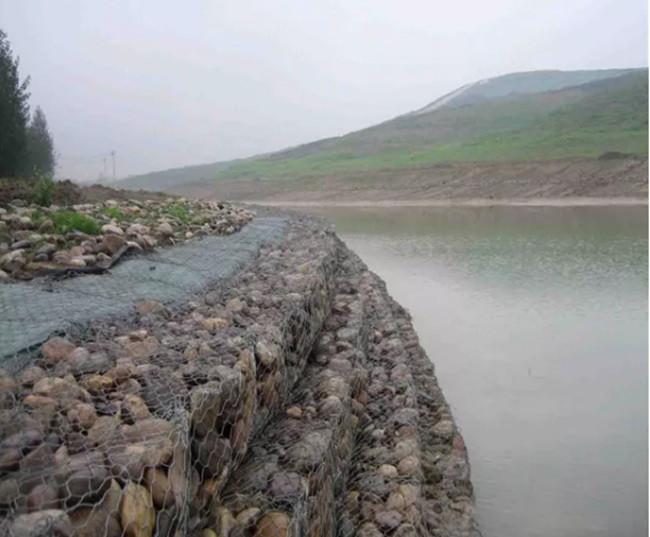

• Control and guide of water or flood
• Flood bank or guiding bank
• Prevention of rock breaking
• Water and soil protection
• Bridge protection
• Strengthening structure of soil
• Protection engineering of seaside area
• Seaport engineering
• Isolation walls
• Protection of road
