| Price | negotiable |
| MOQ | 50sets |
| Delivery Time | 10-20 days |
| Brand | HBGB |
| Place of Origin | China |
| Certification | ISO 9001 |
| Model Number | GB-001 |
| Packaging Details | bulk or in bundle, or on pallet |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 sets per day |
| Place of Origin | China | Packaging Details | bulk or in bundle, or on pallet |
| length | 1M,2M,3M,4M | Hole shape | rectangle or square |
| Material | iron wire Q195 | Model Number | GB-001 |
| Supply Ability | 1000 sets per day | Certification | ISO 9001 |
| Surface treatment | hot dipped galvanized, galfan coated, pvc coated | Brand Name | HBGB |
| Payment Terms | L/C, T/T | aperture | 50x50mm, 75x75mm, 50x 75mm, 50x 100mm |
| Price | negotiable | Delivery Time | 10-20 days |
| Product name | welded gabion mesh | wire diameter | 3-6mm |
| Minimum Order Quantity | 50sets | processing method | welded |
| width | 1M or etc | Height | 0.5m, 1.0m |
Welded gabion box is manufactured from steel wire for tensile strength. It is electrically welded together then hot dipped galvanized or PVC coating, ensuring a longer life and better corrosion and rust resistance performance. If you want cheaper price,we also welded directly hot dipped galvanized wire or Galfan wire. Gabion boxes are designed on the principle of mass earth retaining wall.
1.
Economical.
Just
fill
the
stone
into
the
gabions
and
seal
it.
2.
easy
installation.
No
special
technology
needed.
3.
Weather
proof
under
natural
destroy,
corrosion
resistant.
4.
No
collapse
even
under
big
scope
of
deforming.
5.
Sludge
in
the
stones
is
good
for
plant
growing.
Mixed
to
form
a
integrity
with
the
natural
environment.
6.
Good
permeation
can
prevent
the
damage
by
hydrostatic.
7.
Less
transportation
freight.
It
can
be
folded
together
for
transportation
and
further
installation.
|
Common
Specification
of
Welded
Gabion
Box
|
|||
|
Wire
diameter:3.0-6.0mm
|
|||
|
Specification
in
meters
|
Mesh
size(mm)
|
No.
of
diaphragms
|
Capacity
cu.meters
|
|
1.0*1.0*0.5
|
50*50
75*75
50*100
100*100
|
0
|
0.50
|
|
1.0*1.0*1.0
|
0
|
1.00
|
|
|
1.5*1.0*0.5
|
0
|
0.75
|
|
|
1.5*1.0*1.0
|
0
|
1.50
|
|
|
2.0*1.0*0.5
|
1
|
1.00
|
|
|
2.0*1.0*1.0
|
1
|
2.00
|
|
|
3.0*1.0*0.5
|
2
|
1.50
|
|
|
3.0*1.0*1.0
|
2
|
3.00
|
|
|
4.0*1.0*0.5
|
3
|
2.00
|
|
|
4.0*1.0*1.0
|
3
|
4.00
|
|
|
Remark:We
provide
the
attached
specification,but
it
does
not
limited
to
them.It
can
be
as
client's
instruction.
|
|||
1,
Ends,
diaphragms,
front
and
back
panels
are
placed
upright
on
the
bottom
section
of
wire
mesh.
2,
Secure
panels
by
screwing
spiral
binders
through
the
mesh
openings
in
adjacent
panels.
3,
Stiffeners
shall
be
placed
across
the
corners,
at
300mm
from
the
corner.
Providing
a
diagonal
bracing,
and
crimped
over
the
line
and
cross
wires
on
the
front
and
side
faces.
None
are
needed
in
interior
cells.
4,
Gabion
box
filled
with
graded
stone
by
hand
or
with
a
shovel.
5,
After
filling,
close
the
lid
and
secure
with
spiral
binders
at
the
diaphragms,
ends,
front
and
back.
6,
When
stacking
tiers
of
the
welded
gabion
box,
the
lid
of
the
lower
tier
may
serve
as
the
base
of
the
upper
tier.
Secure
with
spiral
binders
and
add
pre-formed
stiffeners
to
exterior
cells
before
filling
with
graded
stones

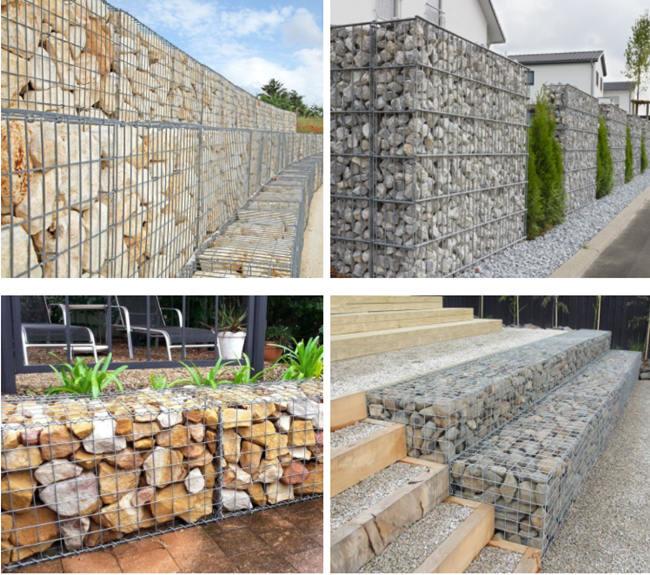

Welded gabion box is widely used in retaining wall structures, rockfall and soil protection and so on. Welded gabions are filled on site with hard and durable stone to form mass gravity structures. And welded gabions are quicker and simpler to install than woven mesh gabions.
