| Price | negotiable |
| MOQ | 50sets |
| Delivery Time | 10-20 days |
| Brand | HBGB |
| Place of Origin | China |
| Certification | ISO 9001 |
| Model Number | GB-001 |

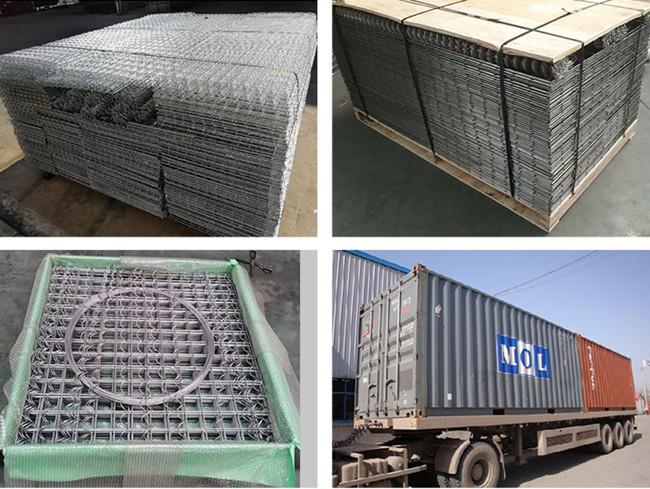

| Packaging Details | bulk or in bundle, or on pallet |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 sets per day |
| Place of Origin | China | Packaging Details | bulk or in bundle, or on pallet |
| Hole shape | 50x50, 75x75, 50x100mm | Material | low carbon steel wire |
| Model Number | GB-001 | type | welded mesh |
| Supply Ability | 1000 sets per day | Certification | ISO 9001 |
| Surface treatment | Hot dipped galvanized | Brand Name | HBGB |
| Payment Terms | L/C, T/T | feature | beautiful, decorative, durable |
| Price | negotiable | Delivery Time | 10-20 days |
| Product name | welded gabion mesh | wire diameter | 4.5mm |
| Opening | customized | Minimum Order Quantity | 50sets |
| Application | gabion wall, gabion fence | Box shape | customized |
Welded gabion mesh is widely used in retaining wall structure, rockfall and soil protection and so on. Welded gabions are filled on site with hard and durable stone to form mass gravity structures. And welded gabions are more quicker and simpler to be installed than woven mesh gabions.
|
Type
of
welded
gabion
|
Wire diameter | Mesh size | Gabion size |
| Galvanized | 3-5mm |
50x50,75x75,50x100mm
|
customized |
| PVC coated | 3.0/3.8mm | 50x50,75x75,50x100mm | customized |
| 95% Zic + 5Al | 3-5mm | 50x50,75x75,50x100mm |
customized |
|
Nominal
Box
sizes
(m)
|
No.
of
diaphragms
(no.)
|
Capacity
per
box
(m3)
|
Corner
stiffeners
(piece)
|
| 1.0x1.0x0.5 | Nil | 0.50 | 2 |
| 1.0x1.0x1.0 | Nil | 1.00 | 4 |
| 1.5x1.0x0.5 | Nil | 0.75 | 4 |
| 1.5x1.0x1.0 | Nil | 1.50 | 4 |
| 2.0x1.0x0.5 | 1 | 1.00 | 4 |
| 2.0x1.0x1.0 | 1 |
2.00
|
8 |
| 3.0x1.0x0.5 | 2 | 1.50 | 6 |
| 3.0x1.0x1.0 | 2 | 3.00 | 12 |
| 4.0x1.0x0.5 | 3 | 2.00 | 8 |
| 4.0x1.0x1.0 | 3 | 4.00 | 16 |
Welded
gabion
screen
advantage:
•
Cost
effective
&
environmentally
friendly
alternative
to
concrete
system.
•
Simple
&
speedy
installation,
using
natural
or
quarried
stones
obtained
locally.
•
Ability
to
deform
without
cracking
allowing
the
structure
to
withstand
any
unpredictable.
movement or settlement without loss or stability.
• Higher resistance to natural forces due to better tensile strength.
