Hot Dipped Galvanized Chain Link Temporary Construction Fence Panel 14ft 50×50mm

Price	negotiable
MOQ	100sets
Delivery Time	15-25 days
Brand	HBGB
Place of Origin	China
Certification	ISO 9001
Model Number	GB-009
Packaging Details	bulk or in bundle
Payment Terms	L/C, T/T
Supply Ability	500 sets per day

Product Details

Product Specification

Frame	1-3/8" diameter	Place of Origin	China
Packaging Details	bulk or in bundle	Fence length	8ft, 10ft, 12ft
Model Number	GB-009	Raw material	low carbon steel wire
Supply Ability	500 sets per day	Certification	ISO 9001
Opening size	2" x 2"	Brand Name	HBGB
Payment Terms	L/C, T/T	Type	chain link wire mesh fence
Wire diameter	2.0mm-4.0mm	Price	negotiable
Delivery Time	15-25 days	Product name	Temporary Construction Fence Panel
Minimum Order Quantity	100sets	Style	USA standard
Features	Easily Assembled, Sustainable, ECO FRIENDLY, Anti-corrosion	Finishing	Hot dipped galvanized
Fence height	6 ft

Product Description

50 X 50 Mm Galvanized Chain Link Portable Temporary Construction Fence Panel

Outdoor construction site Chain Link Temporary Fence:

Temporary fencing system is a combination of components, including fence panels, bases, clamps and other optional accessories, to be used in construction sites, events and private sites for protection and sectioning.

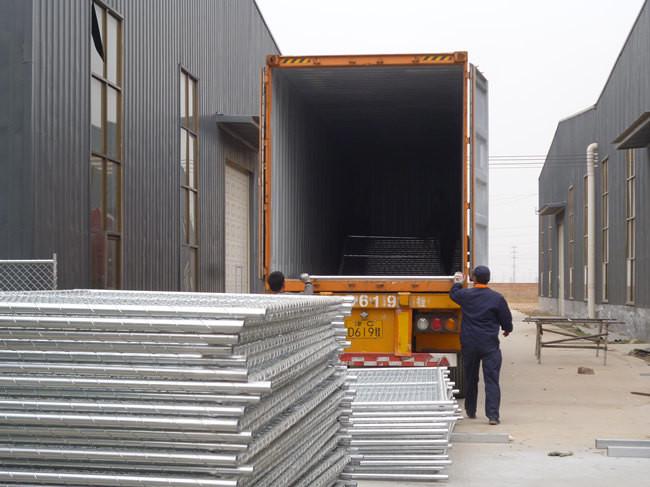

Pictures of fence in details:

Specifications of Chain link Temporary Construction Fence Panel:

Chain Link Panel Temporary Fence Specification
Fence panel height	4ft, 6ft, 8ft
Fence panel width/length	10ft, 12ft, 14ft, etc
Wire diameter	2.7mm (11.5 gauge), 2.5mm, 3mm
Chain link mesh size	57x57mm (2-1/4"), 50x50mm, 60x60mm, etc.
Frame tube O.D	33.4mm (1-3/8"), 32mm, or 42mm (1-5/8") with 0.065" wall thickness
Vertical/Cross tube O.D	25mm or 32mm with 1.6mm (0.065") wall thickness
Fence base/stand	610x590mm (24'' x 23''), 762x460mm (30'' x 18''), etc
Accessory	Clamp, extra brace (diagonal brace)
Material	Hot dipped galvanized steel
Surface treatment	All joints are welded and sprayed with a galvanized paint to cover any exposed metal

Main feature of Chain link Temporary Construction Fence Panel:

1) Simple structure in linear type ,easy in installation and maintenance.
2) Renewable resource, could be used for several years.
3) All welding slag are cleared to insure fence smooth surface.
4) Whole panel (welded mesh panel and frame tube) will be silver spray painted after welding to protect all welding spots.
5) Customized fence shape or specification is also available.

Application:

Some of the most common uses for chain link panels include high-rise commercial construction sites, home developments, highway projects, store front renovations, and for any application where the installation of a post-driven fence is not possible or desired.
