| Price | negotiable |
| MOQ | 50sets |
| Delivery Time | 10-20days |
| Brand | HBGB |
| Place of Origin | China |
| Certification | ISO 9001 |
| Model Number | GB-0011 |
| Packaging Details | Put the meshes and post on the tray, bind well with the strap, and then pack plastic film on the outside |
| Payment Terms | L/C, T/T |
| Supply Ability | 500 sets per day |
| product name | anti climb airport fence | Place of Origin | China |
| mesh size | 50mm x 100mm, 50mm x 150mm and etc | Fence panel length | customized |
| Packaging Details | Put the meshes and post on the tray, bind well with the strap, and then pack plastic film on the outside | Model Number | GB-0011 |
| Raw material | fence panel + razor barbed wire | Supply Ability | 500 sets per day |
| Feature | strong security, anti climb | Certification | ISO 9001 |
| Surface treatment | green color powder spraying | Brand Name | HBGB |
| Payment Terms | L/C, T/T | Razor wire type | BTO-22 or customized |
| Height of fence | 2.0m~3.0m | Price | negotiable |
| Delivery Time | 10-20days | Minimum Order Quantity | 50sets |
| wire gauge | 3.0mm~6.0mm(customized) | Application | For Prison, Airport, Railway station |

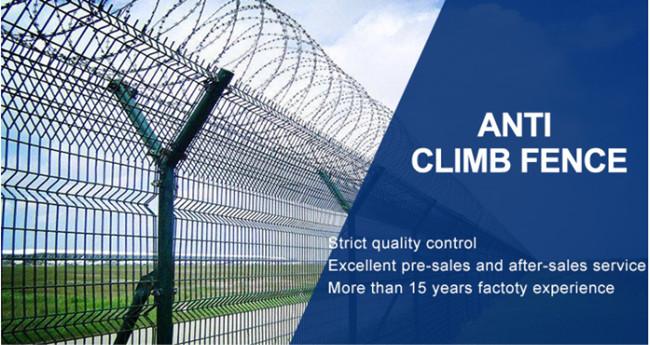

Airport Fence is also known as Y-Shape Security Fence. It is strengthened by the V-shaped support arm and welded mesh panel or chain link fence, security fittings and hot-dip galvanized concertina razor mesh to form a high level of strength and security.
Airport fence is widely used around the airports all over the world, also used as military fence, prison fence and harbor fence.
1)
HIGH
QUALITY MATERIAL
Strictly
select
the
production of
raw
materials,
choose
to meet
our
standards
for production
2) SUPPORT
FOR CUSTOM
Can
be
customized
according to
customer
requirements specifications.
colors.
etc
3) COATING
PROCESS
The
life
of
the
product
is determined
by
the craftsmanship
spray
molding process
and
the
high anticorrosion
and
antirust technology
4) UNIFORM
MESH
Uniform
mesh
pass,
good appearance
of
the
product
1)Panel
| Mesh | Wire Thickness | Surface Treatment | Panel Width | Panel Height | Fence Height | |
|
Big Panel
|
50x100mm
|
4.00mm
|
Gal.+PVC coated
|
2.50m
|
2000mm | 2700mm |
| 2300mm | 3200mm | |||||
| 2600mm | 3700mm | |||||
| 530mm | 2700mm | |||||
|
V panel
|
630mm | 3200mm | ||||
| 730mm | 3700mm |
2)Y post
| Profile | Wall Thickness | Surface Treatment | Length | Base Plate | Rainhat |
| 60x60mm |
2.0mm 2.5mm |
Gal.+PVC coated | 2700mm I+530mm V |
Available On request |
Plastic or Metal |
| 3100mm I+630mm V | |||||
|
3600mm I+730mm V |
3) Razor Wire Common Specifications
|
Razor Wire Type |
BTO-22 |
|||
|
Core Wire Diameter |
2.5mm |
|||
|
Blade |
0.5mm |
|||
|
Coil Diameter |
500mm, 600mm, 700mm |
|||
|
Surface Treatment |
Hot dipped galvanized |
|||
Large Panel, V panel, razor wire, Y post and accessories.
