40x5x3 Outdoor Floor Forge Walkway Galvanised Steel Grating Industrial Grates

Price	negotiable
MOQ	100pcs
Delivery Time	15-25days
Brand	HBGB
Place of Origin	China
Certification	ISO9001
Model Number	GB-007
Packaging Details	bulk packing, in bundle or by pallet
Payment Terms	L/C, T/T
Supply Ability	3000 pcs per day

Product Details

Product Specification

Usage	Industrial platform, flooring and walkway traffic, steel structure	Place of Origin	China
Packaging Details	bulk packing, in bundle or by pallet	Color	silver
Bearing Bar Size	20x3mm; 30x3mm; 25x3mm; 25x4mm; 25x4.5mm	Grating model	Plain type
Material	Steel bar	Grade	Q235, ss304
Zinc coating	270 - 300 g/m2	Model Number	GB-007
Supply Ability	3000 pcs per day	Certification	ISO9001
Surface treatment	hot dipped galvanized	Brand Name	HBGB
Payment Terms	L/C, T/T	Price	negotiable
Delivery Time	15-25days	Product name	Steel Bar Grating
Minimum Order Quantity	100pcs	Cross bar	4mm,5mm,6mm,7mm,8mm

Product Description

Hot Dipped Galvanized Bridge Walkway Outdoor steel bar grating

Plain Steel bar grating introductions:

Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.

Plain bar grating specifications:

Item	Description
Bearing bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing bar pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
Surface Treatment	Black, hot dipped galvanized, painted, spray coating

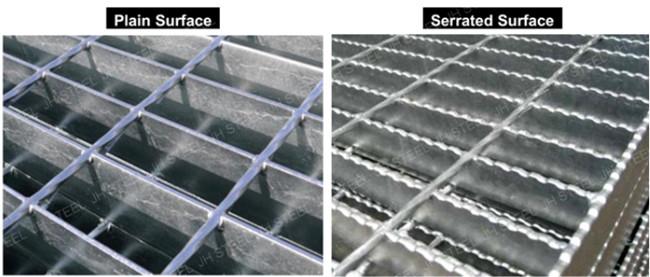

Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :J

Plain bar grating characteristics:

An extremely versatile product that can be used in a wide range of industrial applications.
It offers the advantage of superior lateral support, particularly when using press-locked steel bar grating (as opposed to the aluminum version).
It also produces a smooth, clean look that is favored by architects and design professionals. What’s more, grating steel is durable and very easy to maintain, making it a reliable and long-term grating solution

Product:

Plain steel bar grating applications:

It can be used in the fields of flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, wash rack, ventilation screen, storage rack, suspended ceiling, window and machinery safe guards, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area, etc.
