| Price | negotiable |
| MOQ | 100pcs |
| Delivery Time | 15-25days |
| Brand | HBGB |
| Place of Origin | China |
| Certification | ISO9001 |
| Model Number | GB-007 |
| Packaging Details | bulk packing, in bundle or by pallet |
| Payment Terms | L/C, T/T |
| Supply Ability | 3000 pcs per day |
| If factory | direct factory | Place of Origin | China |
| Bearing Bar | 25x3, 25x4, 30x3, 30x4, 30x5 etc. | Cross bar type | 5x5, 6x6, 8x8 mm |
| Packaging Details | bulk packing, in bundle or by pallet | Material | Steel Q 235, aluminum, ss304 |
| Cross bar pitch | 38,50,76,100,101.6mm | Grating size | customized(width max 1m) |
| Model Number | GB-007 | Supply Ability | 3000 pcs per day |
| Certification | ISO9001 | Grating type | smooth swaged |
| MOQ | 1 ton | Brand Name | HBGB |
| Payment Terms | L/C, T/T | Price | negotiable |
| Delivery Time | 15-25days | Product name | Plain Steel Grating |
| Minimum Order Quantity | 100pcs | Application | Outdoor, drainage channel grating |

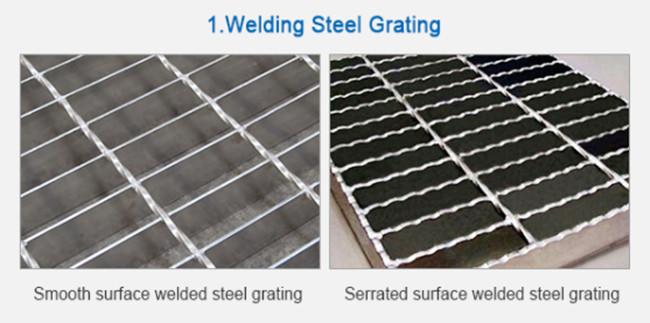

Steel Grating made by welding with flat steel and cross/round bars with certain distances.
Our Steel Grating enjoy the feature of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion.
Plain bar grating specifications:
| No. | Terms | Description |
|
1
|
Material | Low carbon,middle carbon,stainless steel |
|
2
|
Bearing bar size |
25x3,
25x4,
25x4.5,
25x5,
30x3,
30x4,
30x4.5,
30x5,
32x5,
40x5,
50x5,
65x5,
75x6,
75x10,100x10mm
etc;
I
bar:
25x5x3,
30x5x3,
32x5x3,
40x5x3
etc
US
standard:
1'x3/16',
1
1/4'x3/16',
1
1/2'x3/16',
1'x1/4',
1
1/4'x1/4',
1
1/2'x1/4',
1'x1/8',
1
1/4'x1/8',
1
1/2'x1/8'
etc.
|
| 3 | Bearing bar pitch |
15,20,25,30,33,35,38,40,50,60,80,90mm |
| 4 | Cross bar pitch |
24-200mm |
| 5 | Surface treatment |
Hot dipped galvanized,painted,self-color, |
| 6 | Grating standard |
YB/T4001.1-2007,ANSI/NAAMM(MBG531-88),BS4592-1987,AS1657-1985 |
| 7 | Bearing bar type |
F,I ,S,IS type |
| 8 | Application |
Floor walkway,industrial platform,stair tread,metal ceiling |
| 9 | HS Code |
73089000 |
| 10 | Package |
Pallets in containers packed by steel strap and worthy sea shipping |
Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.
Plain steel bar grating usages:
Their main applications are drain covers, steelwork platform panels, and steel stair treads. Industrial platform flooring and walkway, traffic and steel structure etc.
