Durable Antiwear Steel Floor Plain Bar Grating 8x8 Heavily Galvanized

Price	negotiable
MOQ	100pcs
Delivery Time	15-25days
Brand	HBGB
Place of Origin	China
Certification	ISO9001
Model Number	GB-007
Packaging Details	bulk packing, in bundle or by pallet
Payment Terms	L/C, T/T
Supply Ability	3000 pcs per day

Product Details

Product Specification

Place of Origin	China	Twist bar	5x5, 6x6, 8x8 etc
Sample	support	Packaging Details	bulk packing, in bundle or by pallet
Color	silver	Bearing Bar Size	20x3mm; 30x3mm; 25x3mm; 25x4mm; 25x4.5mm
Material	Steel Q 195	Zinc coating	270 - 300 g/m2
Model Number	GB-007	Supply Ability	3000 pcs per day
Bearing bar thickness	2,3,4.5,5 mm and etc	Certification	ISO9001
Surface treatment	hot dipped galvanized	MOQ	1 ton
Brand Name	HBGB	Payment Terms	L/C, T/T
Price	negotiable	Delivery Time	15-25days
Product name	Plain Steel Grating	Minimum Order Quantity	100pcs

Product Description

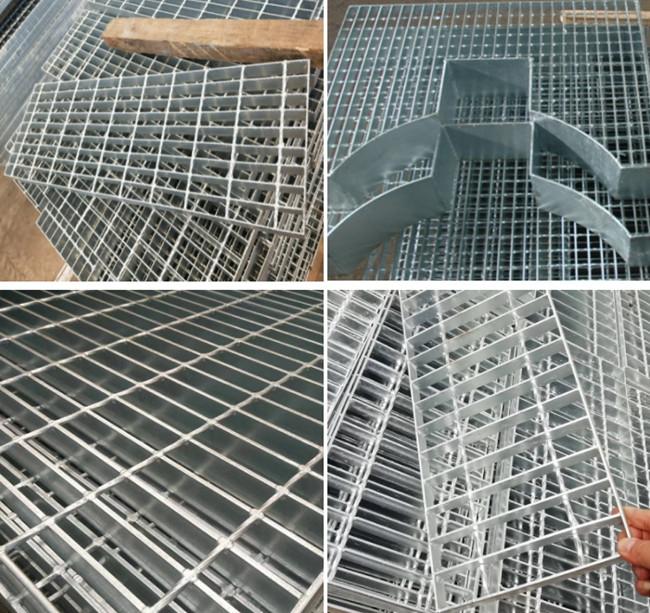

32 X 5 Heavily Galvanized Durable Floor Drain Plain Bar Grating

Plain Steel bar grating introductions:

Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.

Plain bar grating specifications:

Bearing Bar	25x2,25x3,25x4,25x4.5,25x5,30x3,30x4,30x4.5,30x5,32x5,40x5,50x5 mm etc
Usual Pitch	41mm x100mm & 30mm x100mm
Special Pitch	41mmx50mm, 30mmx 50mm, 33mmx 100mm, 33mmx50mm,33mmx38mm, 34mm x 100mm, 34mmx50mm,34mm x 38mm
Material Standard	Q235,ASTMA36,A1011,A569,S275JR,SS304&316 etc
Surface Treatment	galvanized,black,painted,spray coating,self color
Bearing Bar Type	serrated/teeth plain/smooth I bar Serrated I bar
HS code	7308900000
Sample	small pc for free

Plain bar grating standards:

Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.

Plain steel bar grating usages:

Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, zhanqiao pier, ditch lid, manhole cover, ladders, fences, guardrail etc.
