1.5cm 1.6mm Length Hot Dipped Galvanized Barbed Wire 15 Gauge Rust Proof

Price	negotiable
MOQ	50 rolls
Delivery Time	10-20days
Brand	HBGB
Place of Origin	China
Certification	ISO 9001
Model Number	GB-0012
Packaging Details	bulk or on pallet
Payment Terms	L/C, T/T
Supply Ability	3000 rolls per day

Product Details

Product Specification

Place of Origin	China	Packaging Details	bulk or on pallet
Material	low carbon steel wire	Model Number	GB-0012
Supply Ability	3000 rolls per day	Barb distance	7.5-15 cm
Certification	ISO 9001	Surface treatment	Hot dipped Galvanized
Brand Name	HBGB	Payment Terms	L/C, T/T
Coil weight	25 kg	Wire diameter	1.6 mm - 3.2 mm
Packing	pallet or up to you, As your requirements	Price	negotiable
Delivery Time	10-20days	Product name	Galvanized Barbed Wire
Minimum Order Quantity	50 rolls	Features	Anti-corrosion
Barb length	1.5-3 cm	Application	Protection, construction, Barrier

Product Description

Anti-corrosion 25 kgs coil hot dipped galvanized barbed wire

Galvanized barbed wire description:

Barbed wire, also known as barb wire, less often bob wire or, in the southeastern United States, bobbed wire, is a type of steel fencing wire
constructed with sharp edges or points arranged at intervals along the strand(s). It is used to construct inexpensive fences and is used atop
walls surrounding secured property.

Galvanized barbed wire material and surface treatment:

low carbon steel wire
electronic galvanized,hot-dipped galvanized,PVC coated

Galvanized barbed wire types:

Single line wire & Reverse twist

Traditional twist type

Double line wire & Reverse twist

PVC main wire with galvanized barb wire

Galvanized Barbed Wire Application:

Barbed wire suitable for industry, agriculture,animal husbandry, dwelling house, plantation or fencing, It is always used to construct inexpensive fences and is used atop walls surrounding secured property. It is also a major feature of the fortifications in trench warfare (as a wire obstacle).

Galvanized barbed wire specifications:

Specification of barbed wire
Gauge of Strand and Barb in BWG(Anne X3)	Approximate Length per kilogram in Meter
Gauge of Strand and Barb in BWG(Anne X3)	Barbs Spacing 3''	Barbs Spacing 4''	Barbs Spacing 5''	Barbs Spacing 6''
12x12	6.0167	6.7590	7.2700	7.6376
12x14	7.3335	7.9051	8.3015	8.5741
12-1/2x12-1/2	6.9223	7.7190	8.3022	8.7221
12-1/2x14	8.1096	8.8140	9.2242	9.5620
13x13	7.9808	8.8990	9.5721	10.0553
13x14	8.8448	9.6899	10.2923	10.7146
13-1/2x14	9.6079	10.6134	11.4705	11.8553
14x14	10.4569	11.6590	12.5423	13.1752
14-1/2x14-1/2	11.9875	13.3671	14.3781	15.1034
15x15	13.8927	15.4942	16.6666	17.5070
15-1/2x15-1/2	15.3491	17.1144	18.4060	19.3386

Pictures:

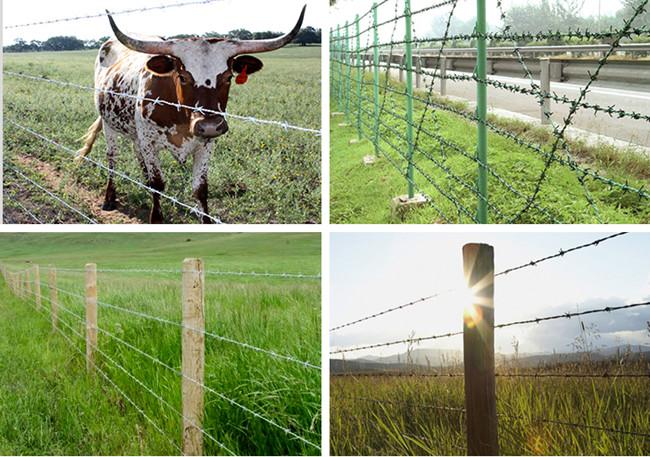

Application pictures:
