| Price | Negotiation |
| MOQ | 1 |
| Delivery Time | 15 days |
| Brand | Hh |
| Place of Origin | Hebei, China |
| Certification | CE |
| Model Number | 1600mm |
| Packaging Details | plastic |
| Payment Terms | L/C, T/T |
| Supply Ability | 10 sets every month |
| Condition | new | Place of Origin | Hebei, China |
| After-sales service provided | onlive | Packaging Details | plastic |
| Dimension(L*W*H) | 62*4.5*3.7m | heating type | electric ,oil and steam heating |
| Showroom Location | Viet Nam, Mexico, Russia, Thailand, Romania | Model Number | 1600mm |
| Supply Ability | 10 sets every month | Automatic grade | automatic |
| Certification | CE | speed | 100pcs/min |
| Brand Name | Hh | Payment Terms | L/C, T/T |
| Max.size | 1600mm | Type | Corrugated cardboard Machine |
| paperboard | 3/5/7ply | Price | Negotiation |
| Delivery Time | 15 days | Product name | 1600mm Steam Heat Flute Board Corrugated Cardboard Production Line |
| Minimum Order Quantity | 1 | Application | Food, Beverage, Commodity, Medical, Chemical, Machinery & |

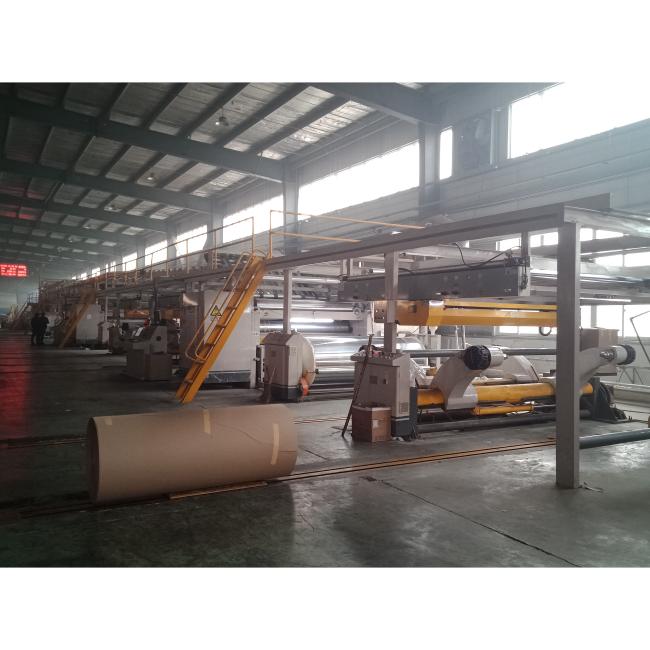

1600mm Steam Heat Flute Board Corrugated Cardboard Production Line
The corrugated paperboard production line is composed of shaftless mill roll stand ,fingerless type single facer (vacuum suction type ), preheater ,double bridge ,gluer machine ,double facer machine ,cut off machine ,slitter scorer machine ,stacker and glue making systerm. Our company absorbs advanced technology from other countries ,gets feed backs from our users and bases on our more than 30 years experience in carton machinery to develop the new products. The feature of our machine : high automatization ,easy operation and maintenance ,high efficiency ,good quality of paperboard ,compact structure and nice appearance.
Main specification
FEATURES
Passed
ISO9001-2000
certificate.
Passed
CE
certificate.
Corrugated
paperboard
production
line
as
follows
is
available
here.
Width:1400mm-2500mm
Layers:
2ply,
3ply,
5ply,
7ply
Speed:
60m/min-200m/min,
mainly
produce
higher
speed
line.
Crucial
machines:
Vacuum
Single
Facer,
shoes
type
Double
Facer,
NC
Slitter
Scorer,
NC
Helical
Knife
Cut
Off,
NC
Stacker
are
all
can
satisfy
high
running
requirement.
Unique
machine:
Twin
Facer
is
one
kind
of
special
single
facer,
it
owns
two
flutes,
and
flute
change
can
be
finished
in
1
minute.
This
machine
is
a
new
breakthrough
in
paperboard
making
field,
and
supply
a
gap
for
multi-function
Single
Facer.
Now
Twin
Facer
is
the
first
choice
for
single
face
corrugated
paperboard
line
and
multi-wall
corrugated
paperboard
line.
Feature
1. This machine adopts the wind adsorption to keep the stability of flutes.
2. The corrugated paper is adsorbed to the middle corrugated roller to form a negative pressure zone of 180°and then to finish the rolling of corrugation through the vacuum box by fan.
3. The width of suction slot of lower corrugated roller is not more than 2.6mm, able to reduce the stripe mark on single side corrugated cardboard.
