| Price | negotiated |
| MOQ | 1 |
| Delivery Time | 15-30 days |
| Brand | Hh |
| Place of Origin | CHINA |
| Certification | CE ISO9001 |
| Model Number | 1300mm |
| Packaging Details | plastic |
| Payment Terms | T/T, L/C |
| Supply Ability | 5 sets every month |
| Place of Origin | CHINA | Packaging Details | plastic |
| Model Number | 1300mm | Supply Ability | 5 sets every month |
| Application: | Beverage, Chemical, Commodity, Food | Driven Type: | Electric |
| Certification | CE ISO9001 | speed | 6000pcs/hour |
| Weight | 4500kg | Brand Name | Hh |
| Payment Terms | T/T, L/C | corrugated board: | A,B,C,D,E,F,3 layers,5 layers |
| Price | negotiated | Delivery Time | 15-30 days |
| Minimum Order Quantity | 1 | function | Semi Auto Corrugated Cardboad Flute Laminating Machine |
| Voltage | 380v/50hz 220v/60hz | warranty | one year |
| max.paper | 1300*1100mm | automatic grade | automatic |
| Dimension(L*W*H): | 13000*3000*3500mm |

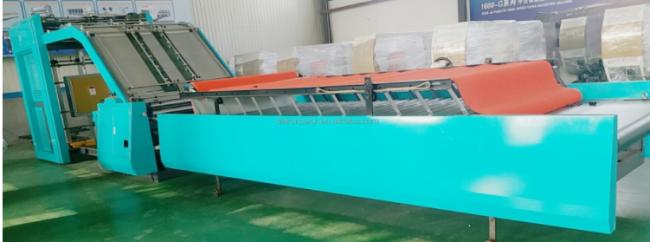

Semi Auto Corrugated Cardboad Flute Laminating Machine
Tumup bridge plate is convenient for cleaning, discontinuous water-circulating system ensures washing clean.
Automatic feeding for bottom sheet, manual feeding for top sheet (feeding from side for top sheet is optional).
Main specification
| Model | 1300B | 1450B | 1600B |
| Max sheet size | 1300×1100mm | 1450×1100mm | 1600×1100mm |
| Min sheet size | 320×450mm | 320×450mm | 320×450mm |
| Total power | 7kw | 7kw | 7kw |
| Speed | 0-90m/min | 0-90m/min | 0-90m/min |
| Weight | 3.5T | 4T | 4.5T |
| Overall Dimensions | 8800×2200×1700mm | 8800×2350×1700mm | 8800×2500×1700mm |
Features
1. Tumup bridge plate is convenient for cleaning,discontinuous wate-circulating system ensures washing cleam.
2. Automatic feeding for bottom sheet,manual feeding fortop sheet (feeding fom side for top sheet is optional).
3. Flexible font register,bottom sheet is not exceeding the top sheet ,and it's adjustable for the front-and-rear lamination between ottom sheeet and top sheet.
4. Bottom sheet can be paperboard more than 350gsm, A/B/C/D/E/F corrugated cardboard.
5. Lnedlligemt control and compacted energysaving and controlling play from the stack of paper.
6. Using hight-precision plastic block device,sace glue.
