| Price | $1,000.00 - $18,000.00/Sets |
| MOQ | 1 SET |
| Delivery Time | 30 work days |
| Brand | ZHEN HAI |
| Place of Origin | LANGXI,ANHUI,CHINA |
| Certification | ISO9001, CE |
| Model Number | ZXJ-380-A |
| Packaging Details | polywood case/ plastic films |
| Payment Terms | T.T., L/C |
| Supply Ability | 100 sets/year |
| Place of Origin | LANGXI,ANHUI,CHINA | Packaging Details | polywood case/ plastic films |
| Model Number | ZXJ-380-A | Supply Ability | 100 sets/year |
| Certification | ISO9001, CE | capacity | 100-150kg/h |
| voltage | 380v,50hz,3phases | Brand Name | ZHEN HAI |
| Payment Terms | T.T., L/C | Video outgoing-inspection | Provided |
| N.W. | 1650kg | Core Components | PLC, Bearing, Motor |
| Price | $1,000.00 - $18,000.00/Sets | Delivery Time | 30 work days |
| packing size 01 | 2250mm*1590mm*1600mm | packing size 02 | 2230mm*1590mm*2150mm |
| Minimum Order Quantity | 1 SET | power | 13kw |
| G.W. | 1960kg | Machinery Test Report | Provided |

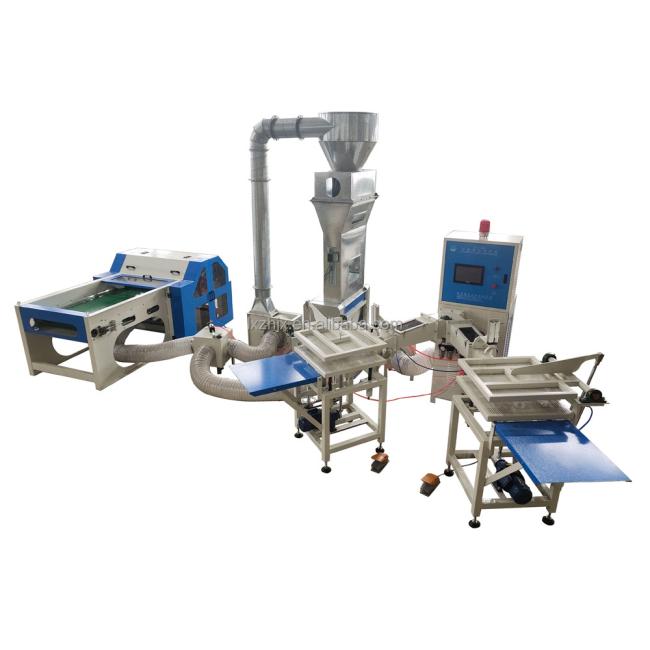

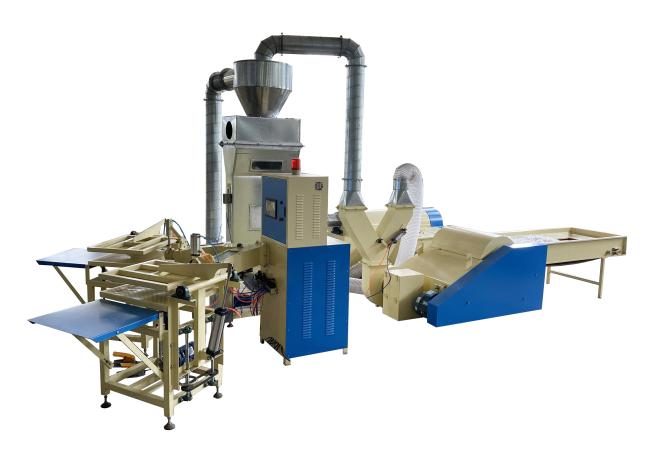

ZXJ-380-A Automatic pillow filling machine
Features:
The third generation Pillow Filling Machine produced in our company, and is developed firstly in China . It overcomes the disadvantage of low output and big error in fixing quantity.
| Capacity: | 120kg/h |
| Error fixing quantity: | ±25g |
| Voltage: | 380v 50hz 3 phases |
| Total power : | 13kW |
| Packing size case 1: | 1590×2590×1600mm,G.W.: 1160kg N.W.: 1000kg |
| Packing size case 2: | 1590×2230×2050mm,G.W.: 800kg N.W.: 650kg |
Working principle:
The raw material suitable for ZXJ-380 Automatic Pillow Filling Machine is polyster hollow fiber(either siliconized or non-siliconized) 7-15D×32-64mm.
Feed the fiber evenly to opening machine (whose capacity is 120kg/h), the fiber is opened and blew through pipes to a silo by a fan. There’re photo-switches on the silo, when the fiber inside is full, the opening machine will stop automatically.
Then the fiber drops down from silo and blew again by a fan to filling nozzle, then be blew to pillow case. There’re two filling nozzles which work in turn. When one is working, you can cover pillow case on the other. The clamps on nozzles are controlled by foot switch.
There’re two worktables close to the nozzles, which can flap the pillow during filling in order to make filling even.
1, Engineers available for overseas service according to request.
2, Any machine from our factory has one year guarantee from BL issued date.
3, 24-hour technical support via email,telephone,skype,whatsapp,TM etc.
4, manual book in English version with details.
1, wooden case/polywood case
2, plastic foam packing
3, nude packing
Langxi Zhenhai Machinery Co., Ltd., with a total area of 20,000 square meters, is a professional textile machinery manufacturer. Our currently available quilting machines, pillow filling machines, compress packing machine, ball fiber machine, nonwoven machines include needle-punched production line, geotextile line, asphalt mixing plant, stiff wadding line, glue-free wadding line, spray-bonded wadding line, quilt wadding line. We also provide technique supports and after-sale services.
Being a company with 20 years of experience in design and manufacturing, we have done a good job in researching and developing equipment and products. With advanced technology, we promise to customers that all machines delivered are qualified ones that have already been tested. Our over ten production lines can display the running condition of the machines and the most advanced technology.
We have a professional technical team that provides such supports as techniques, technology and equipment. In addition, we have a well-trained and experienced team providing good after-sale services. We also provide with installation, testing and training services according to customers’requirements.
Insisting on the principle of "Every customer is important to our brand and image", we are enjoying good reputations both at home and abroad. Our products have been sold to many countries and regions such as Japan, the Middle East, South and North America,and the Occident. Our brand has become a famous trademark in textile machinery like nonwoven industry field.
We warmly welcome you to contact us for more relative information about our quilting machines and nonwoven machines . We are sincerely looking forward to cooperating with all customers.
Certificates:
Workshop Live Shot:
1,How to contact you?
You could contact us via wechat/whatsapp:0086 13506182159.
2,Are you factory or trading company?
We are factory with foreign trading property. We export machines directly to different countries' customer for more than 15 years.
3,How many countries have your products been exported to?
Until now our machines have been already exported to about 100 countries.
4,Which payment term is accepted?
30% in advanced payment by T.T and 70% paid before shipment by T.T.
For some countries L/C at sight is also acceptable.
5,Can you make speicial voltage of the machines?
Standard voltage:380v,50hz,3 phases or 220v,50hz,single phases.Special can be made as required.
