| Price | Negotiable |
| MOQ | 2PCS |
| Delivery Time | 10-12 work days |
| Brand | Yizhuo |
| Place of Origin | China |
| Certification | CE,ROHS,UL |
| Model Number | Aluminum Pcb Board 01 |
| Packaging Details | Vacuum Package+ Good quality carton box |
| Payment Terms | T/T, Western Union |
| Place of Origin | China | Copper Thickness | 1/2OZ |
| Packaging Details | Vacuum Package+ Good quality carton box | Service | One-stop service |
| Model Number | Aluminum Pcb Board 01 | Certification | CE,ROHS,UL |
| Brand Name | Yizhuo | Payment Terms | T/T, Western Union |
| Delivery Time | 10-12 work days | Minimum Order Quantity | 2PCS |
| Peelable | 0.3-0.5mm | Base Material | Aluminum Base |
| Profiling Punching | Routing, V-CUT, Beveling |

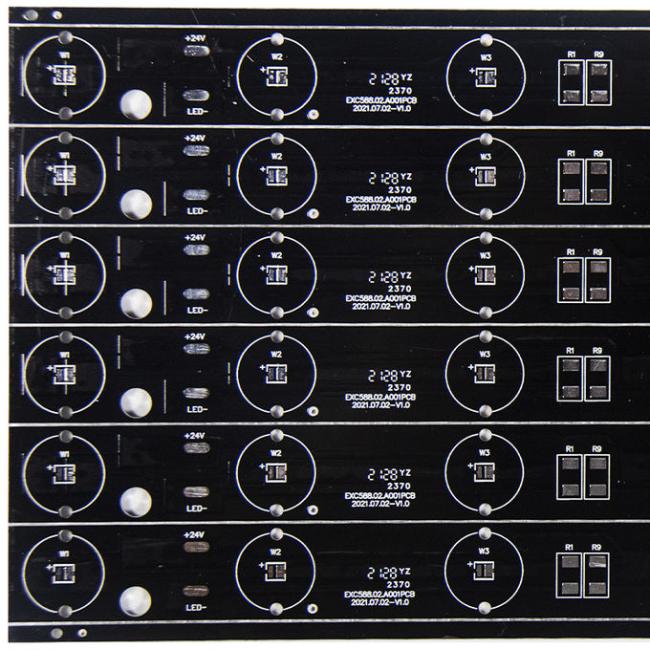

High Brightness Peelable 0.3mm LED Printed Wiring Board Copper Core
Copper Core Pcb Single Sided Pcb High brightness LED printed wiring board
Aluminum-based printed boards can effectively solve the heat dissipation problem, thereby alleviating the thermal expansion and contraction of different materials on the printed board, and improving the durability and reliability of the whole machine and electronic equipment. Especially to solve the problem of thermal expansion and contraction of SMT.
|
LAYER |
PROTOTYPE |
MASS PRODUCTION (above 20 m2) |
|
|
Quick Turn |
Standard Time |
||
|
MC PCB |
48 hours |
4-5 days |
10-12 days |
|
PFC 1 L |
48 hours |
5-6 days |
12-13 days |
|
1L |
24 hours |
3-4 days |
8-10 days |
|
2L |
24 hours |
3-4 days |
8-10 days |
|
4L |
48 hours |
5-6 days |
8-10 days |
|
6L |
72 hours |
6-7 days |
10-12 days |
|
8L |
72 hours |
7-8 days |
12-14 days |
|
10L |
96 hours |
9-10days |
16-18 days |
Why Choose Us?
Professional PCB fabrication team -all engineers have years’ experience in PCB manufacturing field
Advanced equipment and high precision inspection & testing tools
Top raw materials including CCL (Copper Clad Lamination), chemistry, and solder mask ink & legend ink
Skilled operators with good command of all CCPs (Critical Control Points)
Full set of surface finish equipment can do ENIG, immersion silver, immersion Tin, OSP, HASL (lead free), plating gold and plating silver without outsourcing risk.
Cutting edge printed circuit board manufacturing process capacities
Max aspect ratio reaches to 10 : 1
Max copper weight on double PCB surface can reach to 6OZ
The thickness of solder mask can control to 50μm
Min Impedance control value is 50ohm +/- 5%
Min NC drilling diameter 0.2mm and min laser drilling diameter is 0.1mm
Circuit board manufacturing strictly as per IPC standards and make sure 100% qualified
Strictly perform PDCA (Plan-Do-Check Action Cycle) process, and continuously improve product performance
Leading outstanding enterprise of energy saving and environmental protection
