| Price | negotiatable |
| MOQ | 500kgs |
| Delivery Time | 7 DAYS |
| Place of Origin | CHINA |
| Certification | ISO 9000 |
| Model Number | ELTM900g-1000mm width |
| Packaging Details | The roll is wrapped up with plastic film and then packed in a woven bag. Usually 9 rolls a pallet, and 10 pallets in a 20' container. If without pallet package, a container could hold about 10 MT |
| Payment Terms | T/T, L/C |
| Supply Ability | 20MT A WEEK |
| Place of Origin | CHINA | Packaging Details | The roll is wrapped up with plastic film and then packed in a woven bag. Usually 9 rolls a pallet, and 10 pallets in a 20' container. If without pallet package, a container could hold about 10 MT |
| Color | White | Material | E glass chopped strand mat and polyester veil, 0º or 90º roving |
| Model Number | ELTM900g-1000mm width | Supply Ability | 20MT A WEEK |
| Texture | 90 deg | Certification | ISO 9000 |
| Payment Terms | T/T, L/C | Weave Type | Plain Woven |
| Price | negotiatable | Delivery Time | 7 DAYS |
| Minimum Order Quantity | 500kgs | Width | 150-2600mm |
| Application | Molding, RTM etc. |
Fiberglass biaxial fabric with high tensile strength comptatiable with all types of resin used in sports equipment
Introduction:

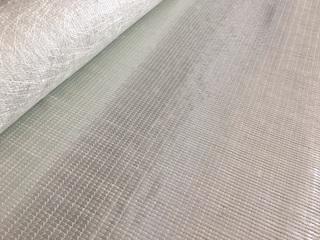

Biaxial fibreglass cloth is a cloth in which the roving is arranged in a two-way direction at 90º (transverse) and 0º (longitudinal), and then stitched with a coil structure. It can be stitched two-way layer yarn with chopped strand mat, polyester surface felt, fiberglass surface felt, carbon fiber surface felt, etc., processed into various types of composites fabric to obtain specific performance.
Specifications:
| Product NO. |
Overall Weight (g/m2) |
0°Roving (g/m2) |
90°Roving (g/m2) |
Chopped Roving (g/m2) |
Polyester Felt (g/m2) |
Width (mm) |
| ELT 450 | 450 | 250 | 200 | / | / | 150 - 2600 |
| ELT 600 | 600 | 336 | 264 | / | / | 150 - 2600 |
| ELT 800 | 800 | 420 | 380 | / | / | 150 - 2600 |
| ELTP 500 | 500 | 250 | 210 | / | 40 | 150 - 2600 |
| ELTM 600 | 600 | 250 | 200 | 150 | / | 150 - 2600 |
| ELTM 900 | 900 | 336 | 364 | 200 | / | 150 - 2600 |
| ELTM 1050 | 1050 | 336 | 414 | 300 | / | 150 - 2600 |
| ELTM 1200 | 1200 | 420 | 430 | 350 | / | 150 - 2600 |
| ELTMP 640 | 640 | 250 | 200 | 150 | 40 | 150 - 2600 |
Features:
● No any Binder
● Optimal mechanical performance
● Fiber straight arrangemet, max. usage of fiber strength
● Interspaces between the fibers are small, effectively improve the impact resistance of products
Application:
● Compatiable with reinforeced unsaturated polyester resin, vinlylester resin, epoxy resin, phenolic resin and polyurethane resin etc.
● Forming process includes vacuum infusion molding, pultrusion, hand lay-up, RTM etc.
● The typical end-use applications are FRP boat hull, wind power blade, sports equipment, pultruded profile and auto body etc.
