| Price | USD 20000-50000 piece |
| MOQ | 1 piece |
| Delivery Time | 45-65 days |
| Brand | DAWSON |
| Place of Origin | CHINE |
| Certification | CE |
| Model Number | ABLB65 |
| Packaging Details | wooden |
| Payment Terms | L/C, T/T |
| Supply Ability | 25 pieces per month |
| Place of Origin | CHINE | Packaging Details | wooden |
| Raw Material: | HDPE | Automation: | Automation: |
| Model Number | ABLB65 | Supply Ability | 25 pieces per month |
| Certification | CE | Brand Name | DAWSON |
| Payment Terms | L/C, T/T | Price | USD 20000-50000 piece |
| Delivery Time | 45-65 days | Minimum Order Quantity | 1 piece |
| Type: | Extrusion Blow Molding Machine |
| SPECIFICATIONS | UNITS | TCY75II SERIERS | |||
| Max container capacity | L | 5 | |||
| Number of die heads | Set | 1 | |||
| Dry cycle time | Second | 5 | |||
| Machine dimension (L*W*H) | M | 3.3*2.3*2.6 | |||
| Total weight | Ton | 5.5 | |||
| CLAMPING UNIT | |||||
| Clamping force | KN | 68 | |||
| Platen opening stroke | mm | 200-500 | |||
| Platen size | mm | 360*470 | |||
| Max mould size (W*H) | mm | 390*470 | |||
| Mould thickness | mm | 210-300 | |||
| Platen moving distance | Mm | 440 | |||
| POWER | |||||
| Extrusion motor power | KW | 22 | |||
| Oil pump motor power | KW | 5.5 | |||
| Extrusion heating power | KW | 12 | |||
| Head heating power | KW | 5.7 | |||
| Cooling Fan power | KW | 0.26 | |||
| Total power | KW | 45.46 | |||
| Average power consumption | KW | 23.5 | |||
| EXTRDER UNIT | |||||
| Screw diameter | mm | 75 | |||
| Screw L/D ratio | L/D | 24 | |||
| Plasticizing capacity | Kg/hour | 90 | |||
| Number of heating zone | Zone | 3 | |||
| Extruder heating power | KW | 14.2 | |||
| Extruder driving power | KW | 22 | |||
| Cooling Fan No | 2 | ||||
| Fan power | KW | 0.26 | |||
| DIE HEAD | |||||
| Head type | Continuous extrusion head | ||||
| Head No | 1 | 2 | 3 | 4 | |
| Central distance / mm | - | 160 | 110 | 85 | |
| Max die diameter / mm | 135 | 80 | 50 |
30 |
|

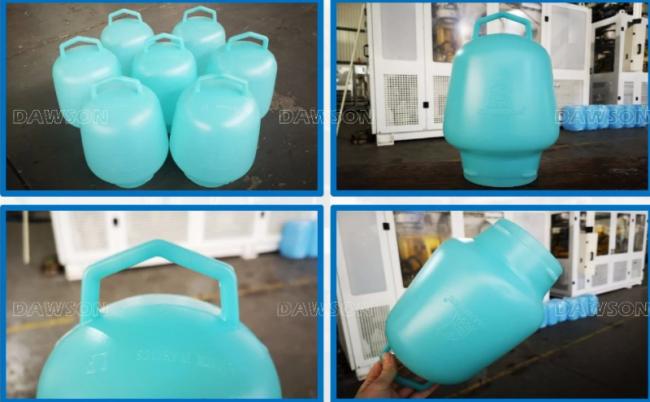

High
Quality
Blow
Molding
mould
In
the
process
of
plastic
blow
molding,
the
mold
is
a
very
important
part.
A
good
blow
mould
can
make
the
product
production
more
smoothly,
and
a
good
blowing
mold
can
also
make
the
finished
product
more
flexible
and
beautiful.
