| Price | USD 15,700 ~ 95,000 / set |
| MOQ | 1 |
| Delivery Time | 5-8 work days |
| Brand | DAWSON |
| Place of Origin | China |
| Certification | CE |
| Model Number | ABLB80 |
| Packaging Details | Standard Export Packing |
| Payment Terms | L/C, T/T |
| Supply Ability | 20 set/month |
| Weight of machine | 7.5 Ton | Place of Origin | China |
| Output of HDPE | 110 KG/H | Packaging Details | Standard Export Packing |
| Max. product volume | 10 L | Model Number | ABLB80 |
| Screw diameter | 80 MM | Supply Ability | 20 set/month |
| Certification | CE | Brand Name | DAWSON |
| Payment Terms | L/C, T/T | Screw L/D ratio | 24 L/D |
| Price | USD 15,700 ~ 95,000 / set | Delivery Time | 5-8 work days |
| Size of machine | 4.4x2x2.7 | Minimum Order Quantity | 1 |
| Clamping force | 100 KN | Dry cycle | 700 PC/H |

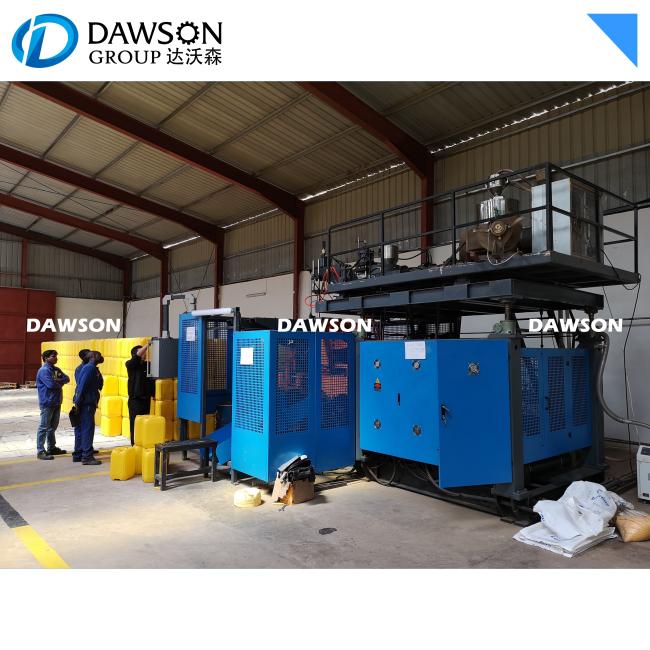

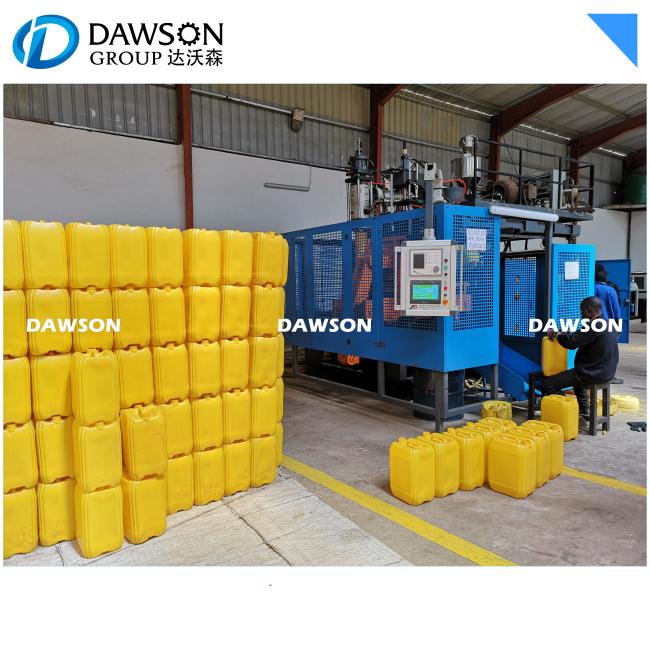

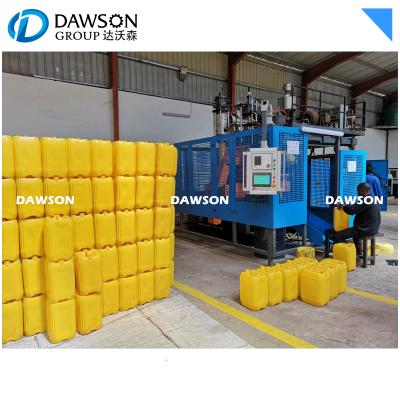

HDPE Jerry Can High Speed Square Bottle Piling Transporting Bottles Extrusion Blow Molding Machine
Automatic Extrusion Blow Molding Machine ABLB80-25L

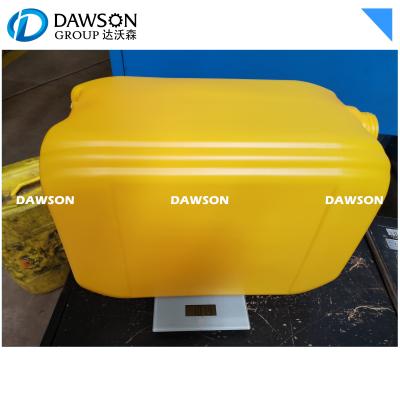

Product:
20L
/
25L
HDPE
Jerry
cans
Power
supply:
380/220v
50/60
Hz
Tri-phase
Output
capacity:20~25L:
50~60
pcs/h
(1200~1400
pcs/day)
Layer:
Single
layer
Lever
line
system:
Available
Parison
control:
MOOG
100
points
Max
volume:
25L
(Single
die
head)
| Basic parameters | Suitable material | PE.PP,PVC,PS,PETG,so on | |
| Max volume | 25L | ||
| Output capacity | 50~60 PCS/H | ||
| Size | 4.4×3.4×3.6(M) | ||
| Weight | 11.3T | ||
| system | Specification | Parameters | Note |
| Plasticizion system | |||
| Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | ||
| Reducer | Hard finishing,High intension,Low noise reducer | ||
| Screw 1 | ∮80mm,L/D ratio 25,130kg/h 38CrMoALA | Cooling system available | |
| Heating Zone | 4 Aluminum Heater | Automatic heating | |
| Heating power | 10KW/H | ||
| Cooling Fan | Separate cooling system for heaters | Automatic cooling | |
| Extrusion system | |||
| Summarize | High-grade alloy steel, center feeding | ||
| Die head number | 1 | ||
| Center distance of die heads | / | ||
| Max die mouth | 200 | ||
| Extruder Motor | 30kw SIEMENS MOTOR | ||
| Clamping system | |||
| Summarize | High intension, rigidity, center mold locking, stable mould opening and advanced clamping system | ||
| Clamping force | 270 KN | ||
| Distance between platens | 450~950mm | ||
| Mould template | 680× 660 | ||
| Mould material | S50C/Aluminium with beryllium copper |
| Electricystem | |||
| Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) |
|
|
| Operate interface | Touch screen, automatic self-diagnose alarm system | ||
| Parison control | MOOG 100 points controller | ||
| Temperature control | Automatic temperature control module | ||
| Movement control |
TECH-2/Mitsubishi,
Chinese/English Version |
||
| Electric protection | Ampere overload, electric short circuit self-protection function | ||
| TOTAL rated power | 67kw | ||
| Average power consumption | 33 kw | ||
| Inverter | Delta | ||
| Hydraulic system | |||
| Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | ||
| Oil pump motor | 11kw motor (380V/220V,50/60HZ) | ||
| Oil pump | double vane pump | ||
| Valves |
Imported
oil
pump
valves
and
connections YUKEN |
||
| Oil pipes | Double layer overpressure resistant | ||
| System pressure |
LP
100
bar
/
HP
130
bar Threads of hydraulic block use of screw joint GE(ISO 1179) |
||
| Cooling system | Post cooling by cooling air and cooling water with Aluminum Mask | ||
| Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
| Air pressure | 0.6~0.8Mpa | ||
| Air displacement | 2.2 M3/min | ||
| Electromagnetic valve | Taiwan AIRTAC | ||
| Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | |
| Cooling medium | Water | ||
| Water flow | 100L/min | ||
| Water pressure | 0.4-0.6MPa | ||
In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
