| Price | Negotiate |
| MOQ | 100 sets |
| Delivery Time | 15-30 days |
| Brand | AoBen |
| Place of Origin | China |
| Certification | ISO9001 |
| Model Number | AoBen Grating-15 |
| Packaging Details | in bundle or iron straps |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 tons per month |
| Place of Origin | China | Bearing bar | 25x5 25x3 32x5 etc |
| Bearing bar pitch | 75mm - 200mm | Packaging Details | in bundle or iron straps |
| Seuface treatment | Hot - dipped Galvanzied | Material | Q235 steel stainless steel |
| Cross bar pitch | 30mm 50mm 100mm | Model Number | AoBen Grating-15 |
| Supply Ability | 1000 tons per month | Certification | ISO9001 |
| Brand Name | AoBen | Payment Terms | L/C, T/T, Western Union |
| Type | Flat,serrated,I - bar | Price | Negotiate |
| Delivery Time | 15-30 days | Minimum Order Quantity | 100 sets |
| Cross bar | 4mm 5mm 6mm 7mm 8mm | Application | Platform floor etc |
G303 Galvanized Welded Steel Grating For Industry
Steel grating,also known as steel grating plate,is orthogonally combined by bearing flat steel and cross bar according to a certain spacing and fixed by welding or press locking.
Type
of
steel
grating:
According to the different types of flat steel, steel grating is mainly divided into the following three categories, and their respective characteristics are as follows:
1.
Plane
type:
plane
type
steel
grating
is
a
widely
used
steel
grating,which
is
mainly
used
for
platforms,
walkways,
various

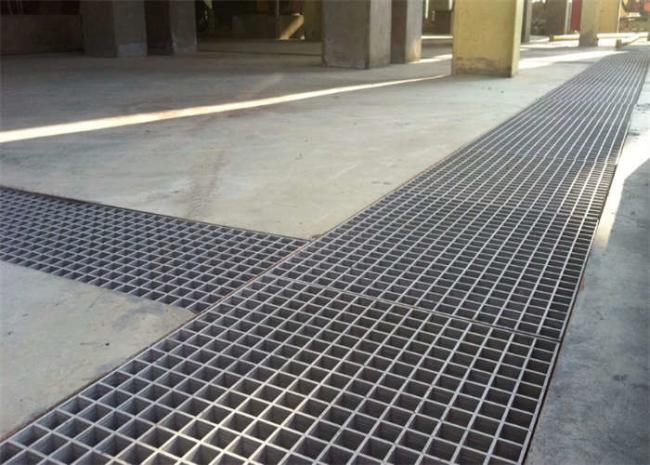

ditch
covers,
step
plates,
etc.
2.
Tooth
profile:
compared
with
plane
steel
grating,tooth
steel
grating
has
better
anti-skid
effect.
3.
I-shaped
steel
grating:compared
with
plane
steel
grating,I-shaped
steel
grating
has
the
characteristics
of
light
weight
and
more
economy
without
greatly
reducing
the
load
capacity.
| Proucts name | Steel grating | Material | Q235 304 stainless steel |
| Specification |
Flat steel height / thickness planar / serrated 203/204/205/253/303/304/305/323/325... Twist steel / round steel diametre 5/6/8/10mm |
||
| Hole spacing |
Conventional size 30 * 50, 30 * 100, 40 * 50, 40 * 100 rectangular hole 50 * 50, 40 * 40, 30 * 30 and other squares are mostly plug-in grids |
||
| Overall dimension | Length * width (in the direction of flat steel). If the overall dimension is not rectangular or square, there is arc or corner cutting, it is necessary to communicate with the customer about the drawing | ||
| Surface treatment | Hot dip galvanizing / electro galvanizing / painting | ||
| Packing | When the quantity is small, it is naked. When the quantity is large, it needs to be bundled with steel strips for packaging. If the rigid grid platform has several layers, it will generally be packed in layers and marked with the layer | ||
