| Price | negotiation |
| MOQ | 200set |
| Delivery Time | 10-25days |
| Brand | Aoben |
| Place of Origin | China |
| Certification | ISO9001 |
| Model Number | Aoben-Safety Mesh-21 |
| Packaging Details | steel pallet |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10000/set per day |
| Place of Origin | China | Size | 1mX2m 1mX1.8m customizes |
| Packaging Details | steel pallet | Material | Galvanzied steel plate,steel plate |
| Surface treatmest | Powder Coated | Model Number | Aoben-Safety Mesh-21 |
| Supply Ability | 10000/set per day | Certification | ISO9001 |
| Name | Self Climbing Scaffolding Safety Mesh | Colour | Blue Yellow Green Red Etc |
| Brand Name | Aoben | Payment Terms | L/C, T/T, Western Union |
| Process Technology | Perforated Punching Electrostatic Spraying | Specifications | 0.4-1.0mm customizes |
| Price | negotiation | Delivery Time | 10-25days |
| Minimum Order Quantity | 200set | Style | Frame mesh panel |

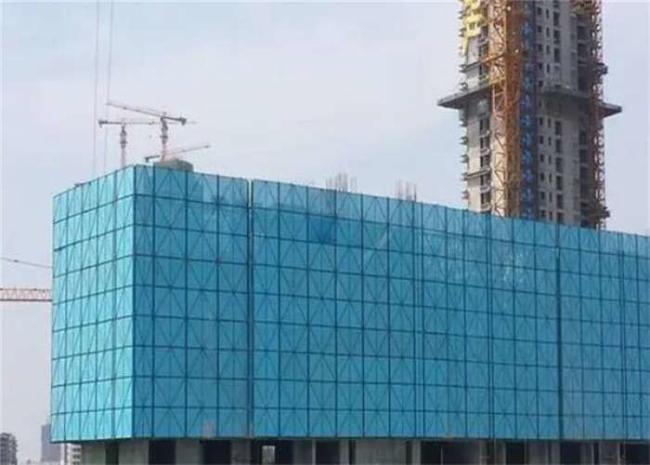

Sprayed Perforated Steel Safety Formwork Screen
Steel safety screen steel construction safety screen for scaffoding system.
| Product brand | Aoben safety screens | Product Name | Perimeter steel safety screens |
| Product material | Galvanized plate galvanized tube | Products Size | 1.2X1.8M can be ordered |
| Plate Thickness | 0.4mm-0.8mm | Mesh size | 6mm 8mm can be ordered |
| Anti-rust process | automatic spray | Product color | Green Blue |
| Product use | It is applicable to the safety protection of high-rise buildings with various standard planes | ||
Compared with ordinary green plastic net, climbing formwork screen has the following advantages:
1. Scientific, safe and reliable structure: the whole frame has sufficient strength and stiffness. The axes of the vertical main frame and the horizontal beam frame node members of the frame body meet at one point, and the bearing stress is clear and reasonable.
2. Save materials and labor: no matter how many floors of the building, the mesh starts from the ground or the lower floor to assemble a scaffold 4 ~ 5 times the floor height at one time, and then only needs to carry out lifting operation without transporting materials in the middle. Compared with the floor scaffold, one-time installation can save at least 60% of steel, at least 40% of investment and a lot of labor.
3. Wide scope of application: it is applicable to shear wall, frame shear wall, frame, silo, cantilevered balcony and other structures, and is not affected by the change of building floor height. It can not only lift in one piece, but also lift in pieces or as a whole. It can be lifted by electric hoist to meet the requirements of different users.
4. Ensure the construction period: the punching climbing net can be lifted independently, which can save the lifting times of tower crane; The bottom can be backfilled after the climbing frame climbs; After climbing to the top, the climbing frame can be lowered for decoration. Roof engineering and decoration engineering can be carried out at the same time. The climbing frame net manufacturer does not have to wait until the roof strength meets the requirements for decoration
