| Price | $18000.00 - $20000.00 |
| MOQ | 1 Set |
| Delivery Time | 30 Working days |
| Brand | XWH |
| Place of Origin | China |
| Certification | CE |
| Model Number | FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E |
| Packaging Details | Wooden Case |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 50 sets/month |
| Place of Origin | China | Packaging Details | Wooden Case |
| After-sales Service Provided | Free spare parts, Field installation, commissioning and training | Model Number | FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E |
| Supply Ability | 50 sets/month | Certification | CE |
| Brand Name | XWH | Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Function | Steel Tank Welding | Type | Semiautomatic |
| Price | $18000.00 - $20000.00 | Delivery Time | 30 Working days |
| Product name | Seam Welding Machine | Machine type | Resistance Welding Machine |
| Minimum Order Quantity | 1 Set | Welding material | Alloy Metal Aluminum Stainless Steel |
| Features | High Efficiency | After Warranty Service | Video technical support, Online support and Spare parts |
| Application | Kitchenware Water Tank Welding |

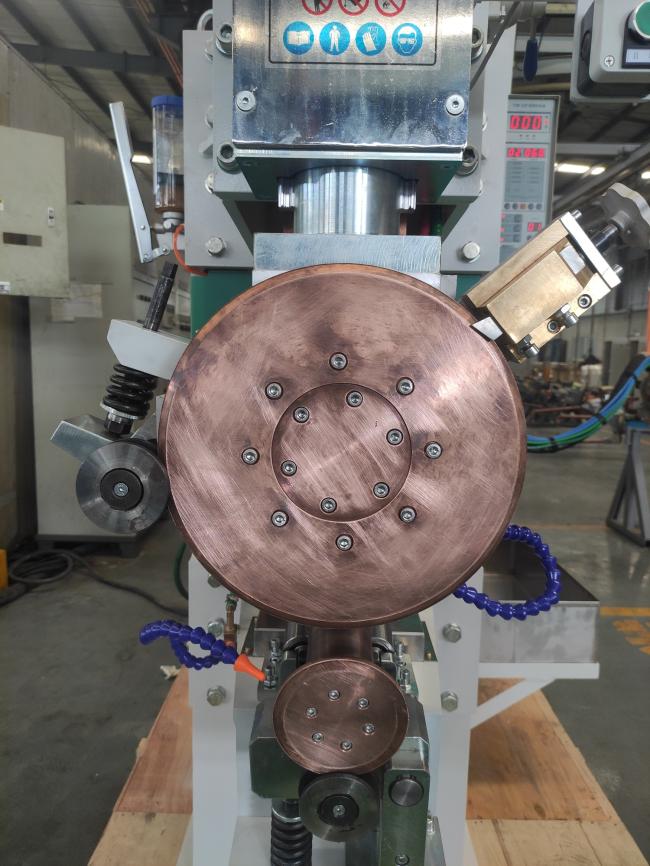

The rolling (seam) welding machine is suitable for welding various thin plate barrels and cans that require high sealing performance. For example, oil tanks, oil drums, oil paint heat sinks, plate heat exchangers, high-precision filter screens, and welding work for sintering and sticking. The requirements for power supply lines are relatively small, and the ability to accept grid voltage is strong. It can manufacture various high-power spot welding or seam welding machines.
|
Model/Item
|
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power |
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage
input
|
V
|
380
|
380
|
380
|
380
|
380
|
|
Frequency
|
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max.
short
circuit
current
|
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke |
mm |
100 |
100
|
100 |
100 |
100
|
|
Welding
efficiency
|
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max.
force
|
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max.
welding
capacity
|
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power |
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling
consumption
|
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|
Features:
1.The welding process is stable and easy to adjust.
2.Internal cooling used in the welder, while external cooling of the welding wheel.
3.The rotating part is embedded silver tile structure, the conductive seat is fully sealed and lubricating, which improves the conductivity and the rotation flexibility.
4.Two kinds of welding modes: Horizontal and Vertical.
5.Widely used in hardware fittings, electrical, automobile, fuel tank and other manufacturing industries industry.
General Structures:
Detail Images:
Multi Types:
Application:
Please note: the welding machine can be custom-made according to your requirements.
