| Price | Negotiable |
| MOQ | 1pcs |
| Delivery Time | 3-8 work days |
| Brand | KHJ |
| Place of Origin | Guangdong, China |
| Certification | CE,RoHS |
| Model Number | KSL100,KSL120,KSL150 |
| Packaging Details | 380*380*340mm |
| Payment Terms | L/C, T/T |
| Supply Ability | 400pcs per day |
| Place of Origin | Guangdong, China | LED Driver | Over voltage protection/short circuit protection |
| Size | φ 330*157mm | Packaging Details | 380*380*340mm |
| Product Name | Sealion Series | Model Number | KSL100,KSL120,KSL150 |
| Supply Ability | 400pcs per day | Certification | CE,RoHS |
| Weight | 8.6Kg | Brand Name | KHJ |
| Payment Terms | L/C, T/T | Surge Protection | 4KV/Line-Line 6KV/Line-Earth |
| Price | Negotiable | Delivery Time | 3-8 work days |
| Operating Voltage | 100~277 VAC, 141~392 VDC, 347~480VAC, 491~679VDC,20-30VAC/DC | Minimum Order Quantity | 1pcs |
| Luminarie Efficacy | 140lm/W | Power | 100W,120W,150W |
Anti-corrosion
performance
Industrial
LED
Flood
Light
Sealion
Series
100W,120W
and
150W
Sealion
Series
100W,120W
and
150W
Industrial
LED
Flood
Light
Highlight: LED
Industrial
Flood
Light,
100W,120W
and
150W
Features And Benefits:
1.
High
efficacy:
up
to
140lm/W.
2.
High
vibration
resistance.
3.
Robust
aluminium
housing
and
strong
tempered
glass.
4.
Low
maintenance
costs
and
power
consumption
reduced
by
over
50%.
5.
Ultra
long-life
LED
technology,
more
than
50,000
hours.
6. All external hardware are stainless steel.
Product Differentiation:
| Executive Standard |
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8 |
| Certificate | CE, RoHS |
| Ambient temp | -40℃ ≤ Ta ≤ +55℃ |
| Ingress Protection | IP66 |
| Cable entry | M25*1.5(M20*1.5,3/4 NPT for optional) |
Applications:

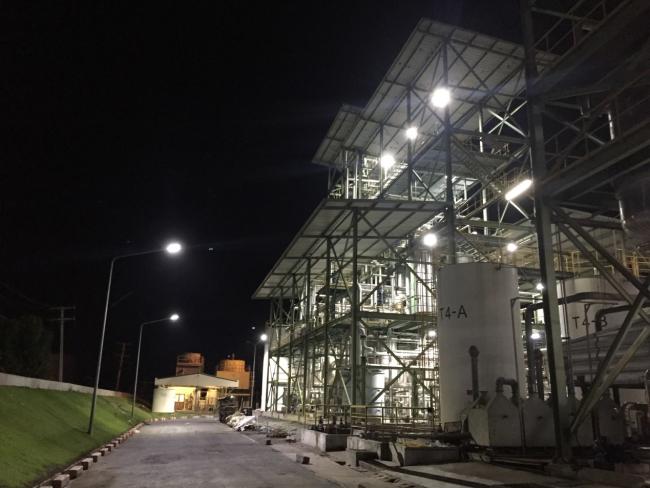

Factories,gymnasium,hypermarket,large scale infrastructure,coal washery,waiting hall,warehouse,street light, etc.
Ordering
information:
| P/N | Operating Voltage(V) | Luminous Flux(lm) | Power | CRI | Color Temp. | CCT(K) |
| KSL100*WM-E |
100~277 AC (141~392 DC) |
12500 | 100 | 70 | Warm white | 3000±300 |
| KSL100*NH-E | 14000 | 100 | 70 | Natural white | 4000±300 | |
| KSL100*NH-E | 14000 | 100 | 70 | Natural white | 5000±300 | |
| KSL100*CH-E | 14000 | 100 | 70 | Cool white | 5700±300 | |
| KSL120*WM-E | 15000 | 120 | 70 | Warm white | 3000±300 | |
| KSL120*NH-E | 16800 | 120 | 70 | Natural white | 4000±300 | |
| KSL120*NH-E | 16800 | 120 | 70 | Natural white | 5000±300 | |
| KSL120*CH-E | 16800 | 120 | 70 | Cool white | 5700±300 | |
| KSL150*WM-E | 18750 | 150 | 70 | Warm white | 3000±300 | |
| KSL150*NH-E | 21000 | 150 | 70 | Natural white | 4000±300 | |
| KSL150*NH-E | 21000 | 150 | 70 | Natural white | 5000±300 | |
| KSL150*CH-E | 21000 | 150 | 70 | Cool white | 5700±300 |
Remarks:
1. *Stands for beam angle , including H4V4 / H5V5 / H6V6.
2. For beam angle H4V4 and H5V5,the luminous flux will be 15% less.
