| Price | Negotiable |
| MOQ | 1pcs |
| Delivery Time | 3-8 work days |
| Brand | KHJ |
| Place of Origin | Guangdong, China |
| Certification | CE,RoHS |
| Model Number | KT320, KT400, KT480 |
| Packaging Details | 671*426*142mm |
| Payment Terms | L/C, T/T |
| Supply Ability | 400pcs per day |
| Place of Origin | Guangdong, China | Packaging Details | 671*426*142mm |
| Product Name | Tank Series | Working Voltage | 100-277 VAC, 347-480 VAC,141-391VDC,491-679 VDC |
| Enclosure Colour | Grey RAL7040 | Model Number | KT320, KT400, KT480 |
| Supply Ability | 400pcs per day | Certification | CE,RoHS |
| Brand Name | KHJ | Payment Terms | L/C, T/T |
| Exposed Fastener | Stainless steel | Price | Negotiable |
| Delivery Time | 3-8 work days | Minimum Order Quantity | 1pcs |
| Enclosure Material | Aluminium | Coating | Epoxy powder coating |
| Power | 320W 400W 480W | Luminaire Efficacy | Max:152lm/W |
320W 400W 480W High Power LED Industrial Flood Lights Tank Series
High Power 320W 400W 480W LED Floodlights Industrial lighting 6KV Surge Protection IP66 Tank Series
Highlight: LED floodlights, Industrial LED Lighting
Features And Benefits:
1. Robust aluminum housing and strong tempered glass.
2. High lumen output LED.
3. Vibration and shock resistant.
4. Low THD around 10%, less interference.
5. 6KV Surge Protection.
6. Dust proof structure design to avoid dust accumulation.
Product Differentiation:
| Executive Standard |
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8 |
| Certificate | CE, RoHS |
| Ambient temp | -40℃ ≤ Ta ≤ +55℃ |
| Ingress Protection | IP66 |
| Cable entry | M25*1.5(M20*1.5,3/4 NPT for optional) |
Applications:

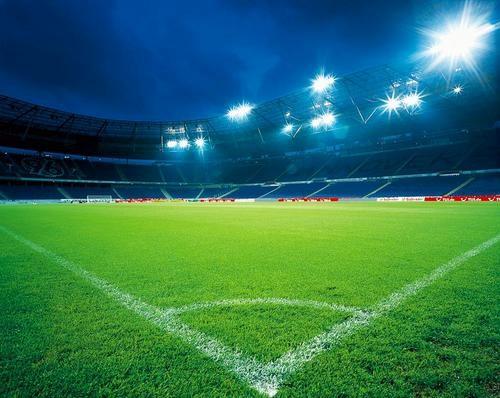

ndustrial LED Flood Light suitable for applications like factories, warehouses, power generation industry etc.
Ordering
information:
| P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) |
| KTK320**CH-P4-E |
100-277 VAC (141-392 VDC) |
46400 |
320 |
70 | Cool white | 5700±300k |
| KTK320**NH-P4-E | 46400 | 70 | Natural white | 5000±300k | ||
| KTK320**NH-P4-E | 46400 | 70 | Natural white | 4000±300k | ||
| KTK320**WM-P4-E | 41760 | 70 | Warm white | 3000±300k | ||
| KTK400**CH-P4-E | 58054 |
400 |
70 | Cool white | 5700±300k | |
| KTK400**NH-P4-E | 58054 | 70 | Natural white | 5000±300k | ||
| KTK400**NH-P4-E | 58054 | 70 | Natural white | 4000±300k | ||
| KTK400**WM-P4-E | 52248 | 70 | Warm white | 3000±300k | ||
| KTK480 ** CH-P4-E | 69120 |
480 |
70 | Cool white | 5700±300k | |
| KTK480 ** NH-P4-E | 69120 | 70 | Natural white | 5000±300k | ||
| KTK480 ** NH-P4-E | 69120 | 70 | Natural white | 4000±300k | ||
| KTK480 ** WM-P4-E | 62208 | 70 | Warm white | 3000±300k |
Remarks:
1. The first * stands for Operating Voltage including default -100-277VAC,D-347-480VAC ,E-20-30VAC.
2.
The
second
*
stands
for
Candela
Distribution
including
H3V3,H5V5,H6V6.
