| Price | Negotiable |
| MOQ | 1pcs |
| Delivery Time | 3-8 work days |
| Brand | KHJ |
| Place of Origin | Guangdong, China |
| Certification | CE,RoHS |
| Model Number | KSF36, KSF48, KSF56, KSF72 |
| Packaging Details | 405*405*200mm |
| Payment Terms | L/C, T/T |
| Supply Ability | 400pcs per day |
| Place of Origin | Guangdong, China | Packaging Details | 405*405*200mm |
| Product Name | Swordfish Series | Working Voltage | 100-277 VAC/24-48 VAC;10-30 VDC/24-48 VDC/141-392 VDC |
| Model Number | KSF36, KSF48, KSF56, KSF72 | Supply Ability | 400pcs per day |
| Certification | CE,RoHS | Brand Name | KHJ |
| Payment Terms | L/C, T/T | THD | ＜10% |
| Price | Negotiable | Delivery Time | 3-8 work days |
| Minimum Order Quantity | 1pcs | Frequency | 50/60Hz |
| Power Factor | ＞0.98 | Lifespan | >50,000 hours |
| Watts | 36W~72W | Luminaire Efficacy | 136.5lm/W |
3ft Linear Strip LED Light IP66 Swordfish Series
3ft IP66 LED linear Light Industrial LED Lighting Swordfish Series
Highlight: LED linear Light, LED Linear
Features And Benefits:
1. Copper -free aluminum enclosure.
2. High Lumen Output LED
3. Shock and vibration-resistant tempered glass, reduces the risk of premature failure.
4. 5KV Surge Protection.
5. Life span> 50,000 hours.
6. Ambient temperature from -20℃to 55℃.
Product Important Information:
| Executive Standard |
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8 |
| Certificate | CE, RoHS |
| Ambient temp | -20℃ ≤ Ta ≤ +55℃ |
| Ingress Protection | IP66 |
| Cable entry | M25*1.5(M20*1.5,3/4 NPT for optional) |
| Electrical & Photometric Features: | |
| Luminaire Efficacy: | 136.5lm/W |
| Lifespan: | >50,000 hours |
| Operating Voltage: |
100-277 VAC/24-48 VAC 10-30 VDC/24-48 VDC/141-392 VDC |
| Power(W): | 18/36/48/56/72 |
| Frequency: | 50/60Hz |
| Power Factor: | ＞0.98 |
| THD: | ＜10% |
| Insulation Class: | Ⅰ |
| Surge Protection: | 5KV |
| LED Driver: | Over voltage protection/short circuit protection |
| Mechanical Features: | |
| Weight: | 8.9Kg(0.6m)/14.6Kg(1.2m) |
| Size: | 600*187*125mm(18W/36W/48W)/1130*187*125mm(36W/48W/56W/72W) |
| Ambient Temperature: | -20℃-+55℃ |
| Connecting Terminals: | 3*1.0-4mm²(L+N+PE) |
| Available cable outer diameter: | φ7-φ14(mm) |
| Cable Entries: | 2XG3/4” (NPT 3/4”,M20*1.5, M25*1.5 are optional) |
| Earthing Protection: | M4 (Internal & external earth bolts) |
| IP Code: | IP66 |
| Enclosure Material: | Copper-free Aluminium |
| Enclosure Colour: | Grey RAL7040 |
| Coating: | Epoxy powder coating |
| Exposed Fastener: | Stainless steel |
| Protective Cover: | Tempered glass,Stand 7J impact |
Applications:

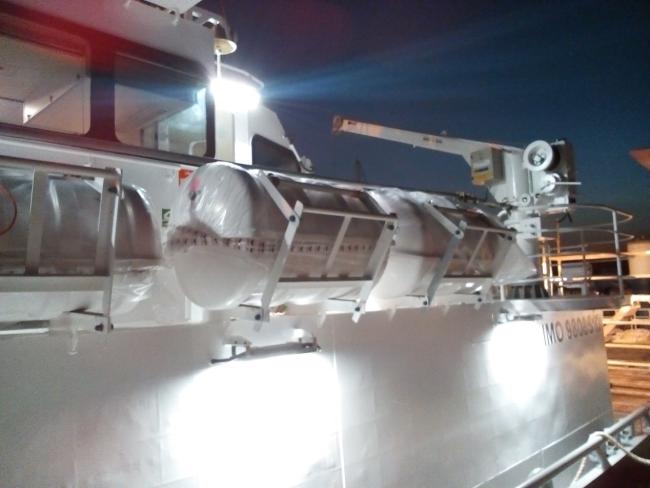

LED Linear Strip Light used in applications like cement plants, warehouse, factory, power generation, shipping industry etc.
Ordering
information:
| P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) |
| KSF361200H7V7WM-E |
100-277 AC (141-392 DC) |
4536 | 36 | 82 | Warm white | 3000±300 |
| KSF361200H7V7NH-E | 4914 | 36 | 70 | Natural white | 4000±300 | |
| KSF361200H7V7NH-E | 4914 | 36 | 70 | Natural white | 5000±300 | |
| KSF361200H7V7CH-E | 4914 | 36 | 70 | Cool white | 5700±300 | |
| KSF481200H7V7WM-E | 6048 | 48 | 82 | Warm white | 3000±300 | |
| KSF481200H7V7NH-E | 6552 | 48 | 70 | Natural white | 4000±300 | |
| KSF481200H7V7NH-E | 6552 | 48 | 70 | Natural white | 5000±300 | |
| KSF481200H7V7CH-E | 6552 | 48 | 70 | Cool white | 5700±300 | |
| KSF561200H7V7WM-E | 7056 | 56 | 82 | Warm white | 3000±300 | |
| KSF561200H7V7NH-E | 7644 | 56 | 70 | Natural white | 4000±300 | |
| KSF561200H7V7NH-E | 7644 | 56 | 70 | Natural white | 5000±300 | |
| KSF561200H7V7CH-E | 7644 | 56 | 70 | Cool white | 5700±300 | |
| KSF721200H7V7WM-E | 9072 | 72 | 82 | Warm white | 3000±300 | |
| KSF721200H7V7NH-E | 9828 | 72 | 70 | Natural white | 4000±300 | |
| KSF721200H7V7NH-E | 9828 | 72 | 70 | Natural white | 5000±300 | |
| KSF721200H7V7CH-E | 9828 | 72 | 70 | Cool white | 5700±300 |
