| Price | Negotiable |
| MOQ | 1pcs |
| Delivery Time | 3-8 work days |
| Brand | KHJ |
| Place of Origin | Guangdong, China |
| Certification | ATEX,IECEx,CE,RoHS |
| Model Number | Ex-KSL200,Ex-KSL240,Ex-KSL300 |
| Packaging Details | 440mm*440mm*340mm |
| Payment Terms | L/C, T/T |
| Supply Ability | 400pcs per day |
| Place of Origin | Guangdong, China | Packaging Details | 440mm*440mm*340mm |
| Product Name | Sealion Series | Input Voltage | 100-277 VAC ,347-480 VAC,141-391VDC,491-679 VDC |
| Model Number | Ex-KSL200,Ex-KSL240,Ex-KSL300 | Supply Ability | 400pcs per day |
| Certification | ATEX,IECEx,CE,RoHS | Brand Name | KHJ |
| Payment Terms | L/C, T/T | THD | ＜10% |
| Price | Negotiable | Delivery Time | 3-8 work days |
| Minimum Order Quantity | 1pcs | Area Classification | Group II, Zone 1 & 21 and 2 & 22 |
| Rated Power | 200W 240W 300W | Power Factor | ＞0.98 |
| Luminarie Efficacy | 140lm/W | Lifespan | >50,000 hours |
IP66 Mobile LED Explosion Proof Work Light with Stainless Steel Bracket Sealion Series
ATEX & IECEx Certified Mobile LED Explosion Proof Work Light with Stainless Steel Bracket IP66 Sealion Series
Highlight: LED Mobile Explosion Proof Work Light, Explosion-proof Mobile Light
Features And Benefits:
1. Corrosion resistant epoxy coated die casting aluminum alloy body and high impact resistance tempered glass.
2. High lumen output.
3. Good heat dissipation.
4. Low maintenance & low THD.
5.Life span> 50,000 hours.
6. Ambient temperature from -40℃to 55℃.
Product Important Information:
| Type Of Protection | Ex d,Ex tb | ||||||
| Protection Standards |
(IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7, (IEC)EN 60079-18, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8 |
||||||
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2 | ||||||
| Installation | (IEC)EN 60079-14 | ||||||
| Certificate |
TÜV 20 ATEX 8608 X IECEx TUR 20.0068X |
||||||
| Equipment Coding |
II 2 G Ex db IIC T4/T5 Gb II 2 D Ex tb IIIC T115°C/105°C/T95°C Db IP66 |
||||||
| Temperature Class | Rated power (W) |
-20℃ ≤ Ta ≤ +55℃ with Battery |
-40℃ ≤ Ta ≤ +55℃ | -40℃ ≤ Ta ≤ +65℃ | |||
| Gas | Dust | Gas | Dust | Gas | Dust | ||
| 200W | T5 | T95˚C | T5 | T95˚C | / | / | |
| 240W | T5 | T95˚C | T5 | T95˚C | / | / | |
| 300W | / | / | T4 | T115˚C | / | / | |
| ATEx Coding |
 II
2
G
/
II
2
D
|
||||||
| Ingress Protection | IP66 (IEC)EN 60529 | ||||||
| Cable entry | M20*1.5,M25*1.5,3/4 NPT | ||||||
| CE Mark |
The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and Safety Requirements |
||||||

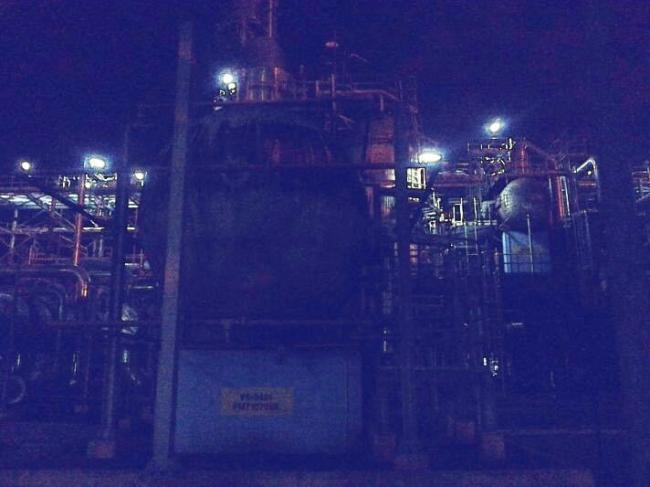

Applications:
LED
Explosion
Proof
Work
Light
can
be
used
for
lots
of
applications
including
Oil
Refinery,
Drilling,
Chemical
Processing
Facility
and
more.
Ordering
information:
| P/N | Operating Voltage(V) | Luminous Flux(lm) |
Power (W) |
CRI |
Color Temp. | CCT(K) | Temp. Classification | |
| -40℃-+55℃ | -40℃-+65℃ | |||||||
| Ex-KSL200*WM-E |
100~277 AC (141~392 DC) |
26000 | 200 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KSL200*NH-E | 29400 | 200 | 70 | Natural white | 4000±300 | T5 | T4 | |
| Ex-KSL200*NH-E | 29400 | 200 | 70 | Natural white | 5000±300 | T5 | T4 | |
| Ex-KSL200*CH-E | 29400 | 200 | 70 | Cool white | 5700±300 | T5 | T4 | |
| Ex-KSL240*WM-E | 31200 | 240 | 70 | Warm white | 3000±300 | T5 | T4 | |
| Ex-KSL240*NH-E | 35280 | 240 | 70 | Natural white | 4000±300 | T5 | T4 | |
| Ex-KSL240*NH-E | 35280 | 240 | 70 | Natural white | 5000±300 | T5 | T4 | |
| Ex-KSL240*CH-E | 35280 | 240 | 70 | Cool white | 5700±300 | T5 | T4 | |
| Ex-KSL300*WM-E | 39000 | 300 | 70 | Warm white | 3000±300 | T4 | / | |
| Ex-KSL300*NH-E | 44100 | 300 | 70 | Natural white | 4000±300 | T4 | / | |
| Ex-KSL300*NH-E | 44100 | 300 | 70 | Natural white | 5000±300 | T4 | / | |
| Ex-KSL300*CH-E | 44100 | 300 | 70 | Cool white | 5700±300 | T4 | / | |
Remarks:
1. *Stands for beam angle , including H4V4 / H5V5 / H6V6.
2. For beam angle H4V4 and H5V5,the luminous flux will be 15% less.
