| Price | Negotiable |
| MOQ | 1 pcs |
| Delivery Time | 5-10work days |
| Brand | KHJ |
| Place of Origin | Guangdong, China |
| Certification | ATEX,IECEx,RoHS,CE |
| Model Number | Ex-KSL30,Ex-KSL45,Ex-KSL60,Ex-KSL80 |
| Packaging Details | 405*405*200mm |
| Payment Terms | L/C, T/T |
| Supply Ability | 400pcs/day |
| Place of Origin | Guangdong, China | LED Driver | Over voltage protection/short circuit protection |
| Packaging Details | 405*405*200mm | Product Name | Sealion Series Small Size Zone 1 Explosion Proof Lighting |
| Model Number | Ex-KSL30,Ex-KSL45,Ex-KSL60,Ex-KSL80 | Supply Ability | 400pcs/day |
| Certification | ATEX,IECEx,RoHS,CE | Ambient Temperature | -40℃-+55℃ |
| Brand Name | KHJ | Payment Terms | L/C, T/T |
| Connecting Terminals | 3*1.0-4mm²(L+N+PE) | Surge Protection | 5KV |
| Price | Negotiable | Delivery Time | 5-10work days |
| Operating Voltage | 100V-277V/347-480V/141V-392V/491V-679V | Minimum Order Quantity | 1 pcs |
| Frequency | 50/60Hz | Power | 30W,45W,60W,80W |
Sealion
Series
30W
45W
60W
80W
Zone
1
Explosion
Proof
Lighting
Luminarie
Efficacy
140lm/W
This user manual covers the range of ATEX and IECEx Sealion Series LED normal/emergency luminaire. These luminaires areconstructed with corrosion resistant epoxy coated aluminum alloy body and high impact resistance tempered glass diffuser.
Sealion SeriesLED are available from 30W to 300W, providing ideal solutions for a wide range of harsh and hazardous applications.
Features
And
Benefits:
1. High
efficacy
LED
Source
with
long
lifespan>50,000
hours.
2.
5-year
performance
warranty.
3.
Low
THD
around
10%,Less
interference.
4.
5KV
Surge
Protection.
5.
Robust
aluminium
housing
and
strong
tempered
glass.
6.
Vibration
and
shock
resistant.
7.
Low
maintenance.
Product Important Information:
| Type Of Protection | Ex d,Ex tb | ||||||
| Protection Standards |
(IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7, (IEC)EN 60079-18, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8 |
||||||
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2 | ||||||
| Installation | (IEC)EN 60079-14 | ||||||
| Certificate |
TÜV 20 ATEX 8608 X IECEx TUR 20.0068X |
||||||
| Equipment Coding |
|
||||||
| Temperature Class | Rated power (W) |
-20℃ ≤ Ta ≤ +55℃ with Battery |
-40℃ ≤ Ta ≤ +55℃ | -40℃ ≤ Ta ≤ +65℃ | |||
| Gas | Dust | Gas | Dust | Gas | Dust | ||
| 30W | T5 | T95˚C | T5 | T95˚C | T4 | T105˚C | |
| 45W | T5 | T95˚C | T5 | T95˚C | T4 | T105˚C | |
| 60W | T5 | T95˚C | T5 | T95˚C | T4 | T105˚C | |
| 80W | T5 | T95˚C | T5 | T95˚C | / | / | |
| ATEx Coding |
 II
2
G
/
II
2
D
|
||||||
| Ingress Protection | IP66 (IEC)EN 60529 | ||||||
| Cable entry | M20*1.5,M25*1.5,3/4 NPT | ||||||
| CE Mark |
The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and Safety Requirements |
||||||
Electrical & Photometric Features:
Luminaire
Efficacy:
140m/W
Lifespan:>50,000
hours
Operating
Voltage:
100V-277V/347-480V/141V-392V/491V-679V
Power:30W,45W,60W,80W
Frequency:50/60Hz
Power
Factor:
＞0.98
THD:＜10%
Insulation
Class:
Ⅰ
Surge
Protection:
5KV
LED
Driver:
Over
voltage
protection/short
circuit
protection
Weight:8.5Kg
Size:φ
275*195mm
Ambient
Temperature:
-40℃-+55℃
Connecting
Terminals:
3*1.0-4mm²(L+N+PE)
Cable
Entries:
2X
NPT
3/4” (M20*1.5,
M25*1.5
are
optional)
Earthing
Protection:
M4
(Internal
&
external
earth
bolts)
IP
Code:
IP66
Enclosure
Material:
Die-casting
aluminium
alloy
Enclosure
Colour:
Grey
RAL7040
Coating:
Epoxy
powder
coating
Exposed
Fastener:
Stainless
steel
Protective
Cover:
Tempered
glass,Stand
7J
impact
Product Differentiation:
| Rated Power | Operating Voltage | Temp. Classification | Emergency optional | ||
| 100-277VAC | 347-480VAC | -40℃-+55℃ | -40℃-+65℃ | -20℃-+55℃ | |
| 30W | ● | / | T5 | T4 | T5 |
| 45W | ● | / | T5 | T4 | T5 |
| 60W | ● | ● | T5 | T4 | T5 |
| 80W | ● | ● | T5 | T4 | T5 |

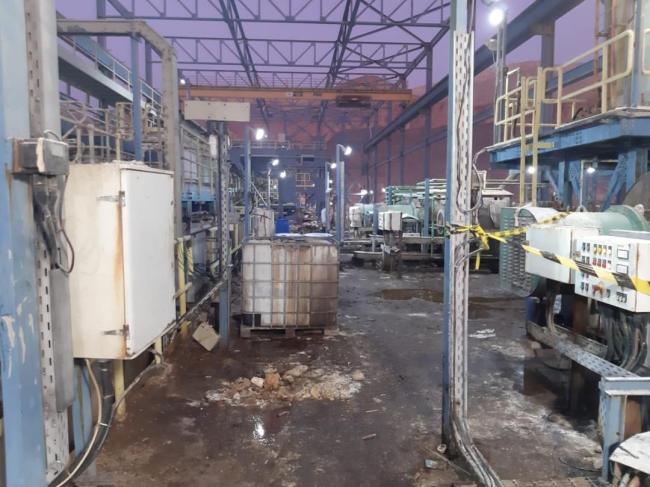

Applications:
1.
Oil&Gas
Exploration
2.
Drilling
3.
Oil
Refinery
4.
Petrochemical
Plant
5.
Power
Plant
6.
Pharmaceutical
Plant
Ordering
Information:
|
P/N |
Operating Voltage(V) |
Luminous Flux(lm) |
Power (W) |
CRI |
Color Temp. |
CCT(K) |
Temp. Classification | |
| -40℃-+55℃ | -40℃-+65℃ | |||||||
| Ex-KSL30*WM-E |
100~277 AC (141~392 DC) |
3900 | 30 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KSL30*NH-E | 4410 | 30 | 70 | Natural white | 4000±300 | T5 | T4 | |
| Ex-KSL30*NH-E | 4410 | 30 | 70 | Natural white | 5000±300 | T5 | T4 | |
| Ex-KSL30*CH-E | 4410 | 30 | 70 | Cool white | 5700±300 | T5 | T4 | |
| Ex-KSL45*WM-E | 5850 | 45 | 70 | Warm white | 3000±300 | T5 | T4 | |
| Ex-KSL45*NH-E | 6615 | 45 | 70 | Natural white | 4000±300 | T5 | T4 | |
| Ex-KSL45*NH-E | 6615 | 45 | 70 | Natural white | 5000±300 | T5 | T4 | |
| Ex-KSL45*CH-E | 6615 | 45 | 70 | Cool white | 5700±300 | T5 | T4 | |
| Ex-KSL60*WM-E | 7800 | 60 | 70 | Warm white | 3000±300 | T5 | T4 | |
| Ex-KSL60*NH-E | 8820 | 60 | 70 | Natural white | 4000±300 | T5 | T4 | |
| Ex-KSL60*NH-E | 8820 | 60 | 70 | Natural white | 5000±300 | T5 | T4 | |
| Ex-KSL60*CH-E | 8820 | 60 | 70 | Cool white | 5700±300 | T5 | T4 | |
| Ex-KSL80*WM-E | 10400 | 80 | 70 | Warm white | 3000±300 | T5 | T4 | |
| Ex-KSL80*NH-E | 11760 | 80 | 70 | Natural white | 4000±300 | T5 | T4 | |
| Ex-KSL80*NH-E | 11760 | 80 | 70 | Natural white | 5000±300 | T5 | T4 | |
| Ex-KSL80*CH-E | 11760 | 80 | 70 | Cool white | 5700±300 | T5 | T4 | |
Remarks:
1. *Stands for beam angle , including H4V4 / H5V5 / H6V6.
2. For beam angle H4V4 and H5V5,the luminous flux will be 15% less.
Candela
Distribution:
Installation
Method:
