| Price | Negotiable |
| MOQ | 1 pcs |
| Delivery Time | 3-8work days |
| Brand | KHJ |
| Place of Origin | Guangdong, China |
| Certification | ATEX,IECEx,CE,RoHS |
| Model Number | KBX05 |
| Packaging Details | Negotiable |
| Payment Terms | L/C, T/T |
| Supply Ability | 500pcs/day |
| Place of Origin | Guangdong, China | Packaging Details | Negotiable |
| Enclosure material | Stainless steel,anti-drop structure | Degree of protection | IP66 |
| Model Number | KBX05 | Supply Ability | 500pcs/day |
| Certification | ATEX,IECEx,CE,RoHS | Brand Name | KHJ |
| Payment Terms | L/C, T/T | Rated current | 6A、10A、16A |
| Price | Negotiable | Delivery Time | 3-8work days |
| Product name | KBX05 Series Explosion Proof Electrical Equipment | Ambient temperature | -40℃〜+40/45/50/55/60/65/70℃ |
| Installation method | Hanging type | Rated voltage | Max. 415V AC, 250V DC |
| Minimum Order Quantity | 1 pcs |
KBX05
Series
Explosion
Proof
Electrical
Equipment
Explosion
proof
Control
Station
Application and Features:
Technical Parameter:
| Ex marking | Gas | Il2 G Ex db eb IIC T6 Gb | Ex db eb IIC T6 Gb | Ex d e IIC T6 Gb | |||||
| Dust | II2 D Ex tb IIΙC T80℃ Db | Ex tb IIΙC T80℃ Db | Ex tD A21 IP66 | ||||||
| Conformity to standards |
IEC
60079-0,
IEC
60079-7,
IEC
60079-11,
IEC
60079-31 EN 60079-0, EN 60079-7, EN 60079-11, EN 60079-31 GB3836.1,GB3836.2,GB3836.3,GB12476.1,GB12476.5 |
||||||||
| Enclosure material | Enclosure | GRP (Polyester resin,glass fibre reinforced), antistatic | |||||||
| Rain shade |
Bended
steel
plate
surface
powder
coated
(black
color) or stainless steel 304/316, please note when needed. |
||||||||
| Color of enclosure | Black | ||||||||
| Exposed fastener | Stainless steel,anti-drop structure. | ||||||||
| Rated voltage | Max. 415V AC, 250V DC | ||||||||
| Rated current | 6A,10A,16A | ||||||||
| Wire diameter | ≤6A: 0.75～2.5mm² | ||||||||
| 6A＜I≤10A: 1.5～2.5mm² | |||||||||
| 10A＜I≤16A: 2.5mm² | |||||||||
| Degree of protection | IP66 | ||||||||
| Ambient temperature | -40℃〜+40/45/50/55/60/65/70℃ | ||||||||
| Built-in components | K0101 explosion-proof control button. | ||||||||
| K0102 explosion-proof signal lamp. | |||||||||
| K0101-S explosion-proof control switch. | |||||||||
| K0109 explosion-proof ammeter. | |||||||||
| Installation method | Hanging type | ||||||||
| Cable entries | Hanging type |
M25X1.5,G3/4 The cable gland is not available when delivery, please indicate if necessary. |
|||||||
Components and Accessories:
|
|
|
|
| K0101-Control button | K0101-A2 Two control button | K0102-Signal lamp |
K0101-A
Control
button with signal lamp |
|
|
|
|
|
| K0109-Ammeter | K0155 Switch | φ38 Operating handle |
φ65 Operating handle (padlock available) |
Square operating handle |
Note:
1.Installation
area
of
1
pcs
K0109-48
is
same
as
2
pcs
buttons;
2.Installation
area
of
1
pcsφ65
operating
handle
or
1
pcs
square
operating
handle
is
same
as
2
pcs
buttons.

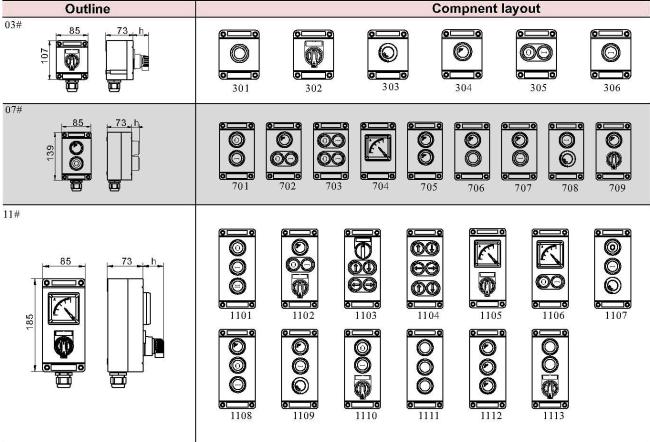

Selection Table:

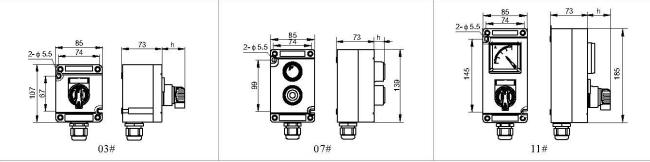

Outline and Installation Dimension(Dimensions in mm):
| Component accessories | h (mm) |
| Meter frame | 11 |
| Standard button | 20.5 |
| Double button | 21.5 |
| Button with key | 38(62) |
| Emergency stop button with self-locking | 40 |
| Mushroom head button | 32 |
| Mushroom head button with key | 45(69) |
| Component accessories | h (mm) |
| Indicator light | 23.5 |
| Illuminated control button | 20.5 |
| Control switch S1,S3 | 40 |
| Control switch S2 | 42 |
| Potentiometer (single-turn) | 27 |
| Potentiometer (multi-turn) | 40.5 |
