| Price | Negotiable |
| MOQ | 1 pcs |
| Delivery Time | 3-8work days |
| Brand | KHJ |
| Place of Origin | Guangdong, China |
| Certification | ATEX,IECEx,CE,RoHS |
| Model Number | KBDJ11 |
| Packaging Details | Negotiable |
| Payment Terms | L/C, T/T |
| Supply Ability | 500pcs/day |
| Light source | LED | Emergency working time | ≤180 min |
| Place of Origin | Guangdong, China | Charging time | ＜24h |
| Packaging Details | Negotiable | Model Number | KBDJ11 |
| Supply Ability | 500pcs/day | Certification | ATEX,IECEx,CE,RoHS |
| Brand Name | KHJ | Payment Terms | L/C, T/T |
| Price | Negotiable | Delivery Time | 3-8work days |
| Product name | KBDJ11 Series Explosion Proof LED Exit Sign | Ambient temperature | -40℃~+55℃/60℃ |
| Operating Voltage | 100~300V AC /DC;12,24,36V AC /DC | Minimum Order Quantity | 1 pcs |
| Emergency unit voltage | DC3.0~3.5V | Power | ≤6W |
KBDJ11-Series
Degree
of
protection
IP67
Explosion
Proof
LED
Exit
Sign
Emergency
Lights
Application and Features:
●
Explosion
protection
-
IECEx
(IEC)-IECEx
SEV
21.0006X
-
ATEX
(CENELEC,
EN)-SEV
21
ATEX
0521
X
-
China
Ex(GB)
●
Application
in
hazardous
area
Zone
1
and
Zone
2,
Zone
21
and
Zone
22
●
Continuous
light,with
built-in
maintenance-free
battery
pack,
automatically
charging,
and
automatically
switch
to
battery
power
supply
when
powersource
cut
off
or
in
emergency
situation.
●
LED
light
source,
low
power
consumption,
long
service
life.

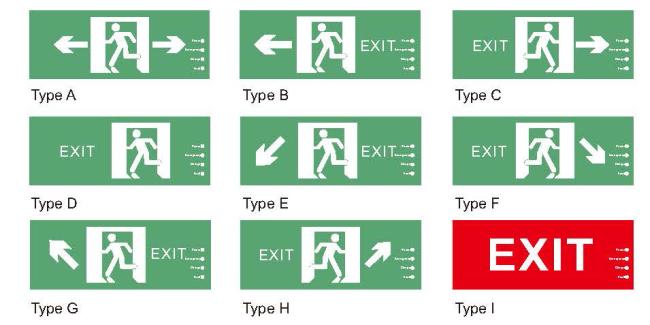

Guide sign:
Specifications:
| Ex marking | Gas | II 2 G Ex db IIB T6 Gb, | Ex db IIB T6 Gb, | Ex d IIB T6 Gb, |
| Dust | II 2 G Ex db IIB+H2 T6 Gb | Ex db IIB+H2 T6 Gb | Ex d IIB+H2 T6 Gb | |
| II 2 D Ex tb IIIC T80℃ Db | Ex tb IIIC T80℃ Db | Ex tD A21 IP66/ 67 T80℃ Db | ||
| Conformity to standards |
IEC60079-0,IEC60079-1,IEC60079-31 EN60079-0, EN60079-1, EN60079-31 GB3836.1,GB3836.2,GB12476.1,GB12476.5 |
|||
|
Structure, Material |
Enclosure | Aluminum alloy enclosure, powder coated,industrial grey with dark lines texture (RAL7035) | ||
| Transparent cover | Tempered glass, resistant to 4J impact | |||
| Guide sign | 9 signs, and customizable | |||
| Control module | With overcharge, overdischarge, short circuit protection and others. | |||
|
Self-check function |
With self-checking function, automatic discharge once per month, emergency working for 120seconds, and automatically back to main power supply.Annual self-checking function,automatically switch to emergency state and run over the battery, then automatically back to main power supply and charge the battery The fault will automatically alert with light and sound. | |||
| Exposed fastener | Stainless steel | |||
| Light source | LED | |||
| Rated voltage | 100~300V AC /DC； 12,24,36V AC /DC | |||
| Emergency unit voltage | DC3.0~3.5V | |||
| Emergency working time | ≤180 min | |||
| Charging time | ＜24h | |||
| Frequency | 50/60Hz | |||
| Rated voltage | ≤6W | |||
| Degree of protection | IP66,IP67 | |||
| Ambient temperature | -40℃~+55℃/60℃ | |||
| Terminal block | 3X1.5~4mm2 (L+N+PE) | |||
| Cable entries | M20X1.5,M25X1.5,NPT1/2,NPT3/4 | |||
| Available cable outer diameter (mm) | φ10~φ14(mm) | |||
| Weight | Wall type (B): 7kg, Ceiling type (X1): 6.6kg, Ceiling type (X2): 6.8kg, Pendant type (G): 6.6kg | |||
Outline and Installation Dimension(Dimensions in mm):
