| Price | Negotiable |
| MOQ | 1 pcs |
| Delivery Time | 3-8 work days |
| Brand | KHJ |
| Place of Origin | Guangdong, China |
| Certification | CE,RoHS |
| Model Number | KBB80,KBB100, KJF120, KJF150 |
| Packaging Details | 420*420*185mm |
| Payment Terms | L/C, T/T |
| Supply Ability | 400pcs/day |
| Place of Origin | Guangdong, China | Packaging Details | 420*420*185mm |
| Insulation Class | Ⅰ | Model Number | KBB80,KBB100, KJF120, KJF150 |
| Supply Ability | 400pcs/day | Certification | CE,RoHS |
| Weight | 10.5Kg | Brand Name | KHJ |
| Payment Terms | L/C, T/T | THD | ＜10% |
| Surge Protection | 5KV | Price | Negotiable |
| Delivery Time | 3-8 work days | Operating Voltage | 100-277 VAC，141-392 VDC |
| Minimum Order Quantity | 1 pcs | Size: | 336*336*163mm |
| Power Factor | ＞0.98 | Power | 80W/100W/120W/150W |
Brownbear Series 80W 100W 120W 150W LED Industrial Flood Light Power Factor ＞ 0.98
Features And Benefits:
1. Energy saving. Reduce the number of luminaires needed.
2. Shock and vibration-resistant tempered glass , reduces the risk of premature failure.
3. High efficacy LED source. High lumen output and high CRI.
4. High efficiency LED Driver,designed to provide reliable operation in even harshest environment.
5. High strength aluminum alloy housing, IP66, can be used in wet locations, Robust construction suitable corrosive applications.
6. Adjusting plate, customer can adjust different mounting angles.
7. 80W, 100W, 120W, 150W available. Optional luminous intensity,distribution for different applications.
8. L70 rated for >100,000 hours @25°C.
9. IK code: IK08.
10. Ambient temperature from -40°C to +65°C.
11. Life span> 50,000 hours.
12. Surge protection:5KV.
13. 5 year full performance warranty.
Specifications:
Certificate:CE,RoHS
Executive Standard:
| EN 55015:2013+A1:2015 | EN 61547:2009 | EN 60598-2-1:1989 |
| EN 61000-3-2:2014 | EN 61000-3-3:2013 | IEC 62321-5:2013 |
| EN 60598-2-1:1989 | EN 60598-1:2015 | IEC 62321-6:2015 |
| IEC 62321-7-1:2015 |
Luminaire Efficacy: 142m/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC,141-392 VDC
Power:80W/100W/120W/150W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:10.5Kg
Size:336*336*163mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0mm²(L+N+PE)
Cable Entries: 2XM25*1.5 (NPT 3/4”,M20*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

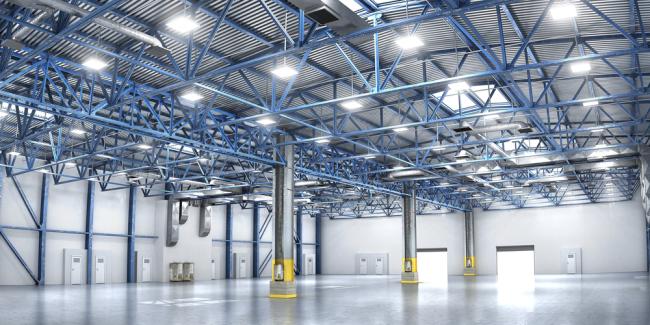

Applications:
1. Cement plants
2. Warehouse
3. Factory
4. Power Genera
5. Power Transmission
6. Shipping industry
Ordering Information:
|
P/N |
Operating Voltage(V) |
Luminous Flux(lm) |
Power(W) |
CRI |
Color Temp. |
CCT(K) |
| KBB80*WM-E |
100-277 AC (141-392 DC) |
10500 | 80 | 70 | Warm white | 3000±300 |
| KBB80*NH-E | 11340 | 80 | 70 | Natural white | 4000±300 | |
| KBB80*NH-E | 11340 | 80 | 70 | Natural white | 5000±300 | |
| KBB80*CH-E | 11340 | 80 | 70 | Cool white | 5700±300 | |
| KBB100*WM-E | 13125 | 100 | 70 | Warm white | 3000±300 | |
| KBB100*NH-E | 14175 | 100 | 70 | Natural white | 4000±300 | |
| KBB100*NH-E | 14175 | 100 | 70 | Natural white | 5000±300 | |
| KBB100*CH-E | 14175 | 100 | 70 | Cool white | 5700±300 | |
| KBB120*WM-E | 15750 | 120 | 70 | Warm white | 3000±300 | |
| KBB120*NH-E | 17010 | 120 | 70 | Natural white | 4000±300 | |
| KBB120*NH-E | 17010 | 120 | 70 | Natural white | 5000±300 | |
| KBB120*CH-E | 17010 | 120 | 70 | Cool white | 5700±300 | |
| KBB150*WM-E | 19687 | 150 | 70 | Warm white | 3000±300 | |
| KBB150*NH-E | 21262 | 150 | 70 | Natural white | 4000±300 | |
| KBB150*NH-E | 21262 | 150 | 70 | Natural white | 5000±300 | |
| KBB150*CH-E | 21262 | 150 | 70 | Cool white | 5700±300 |
Remarks:
1. * Stands for beam angle,including H5V5 / H6V6/FW.
2. For Beam angle H5V5,the luminous flux will be 15% less.
3. For Beam angle FW,the luminous flux will be 30% less.
Candela Distribution:
Installation Method:
