| Price | Negotiable |
| MOQ | 1 pcs |
| Delivery Time | 3-8work days |
| Brand | KHJ |
| Place of Origin | Guangdong, China |
| Certification | CE,RoHS |
| Model Number | KPSEW-*-ON |
| Packaging Details | 379*199*44mm |
| Payment Terms | L/C, T/T |
| Supply Ability | 500pcs/day |
| Place of Origin | Guangdong, China | Packaging Details | 379*199*44mm |
| Model Number | KPSEW-*-ON | Supply Ability | 500pcs/day |
| Weight: | 2Kg | Certification | CE,RoHS |
| Brand Name | KHJ | Payment Terms | L/C, T/T |
| Price | Negotiable | Delivery Time | 3-8work days |
| Operating Voltage | 100-277VAC,141-392VDC | Minimum Order Quantity | 1 pcs |
| Frequency | 50/60Hz | Insulation Class: | I |
| Power Factor | ＞0.98 | Lifespan | >50,000 hours |
| Ambient Temperature: | -20℃-+55℃ | Power | 6W,0.5W |
Polaris
Series
Copper
Free
Aluminium
LED
Emergency
Exit
Light
Epoxy
powder
coating
Features
And
Benefits:
1.
High
efficacy
LED
Source
with
long lifespan>50,000
hours.
2.
3-year
performance
warranty.
3.
Robust
aluminium
housing
and
strong
tempered
glass.
4.
Vibration
and
shock
resistant.
5.
Low
maintenance.
Specifications:
Certificate:CE,RoHS
Executive
Standard:
| EN 60598-1:2015 | EN 60598-2-5:2015 | IEC 62321-4:2013+AMD1:2017 |
| IEC 62321-5:2013 | EN 61547:2009 | EN 55015:2013+A1:2015 |
| EN 61000-3-2:2014 | EN 61000-3-3:2013 | IEC 62321-6:2015 |
| IEC 62321-7-1:2015 | IEC 62321-7-2:2017 | IEC 62321-8:2017 |
Lifespan:>50,000
hours
Operating
Voltage:
100-277
VAC/141-392
VDC
Power:6W(Normal);0.5W(Emergency)
Battery Rated Capacity:2.6Ah
Rated Capacity:Ni-MH
Rated Lifespan:300 Cycles
Battery Back Up:180 Min
Battery Charge Time(after full discharge):12 h
Frequency:50/60Hz
Power
Factor:
＞0.98
Insulation
Class:
Ⅰ
LED
Driver:
Over
voltage
protection/short
circuit
protection
Weight:2Kg

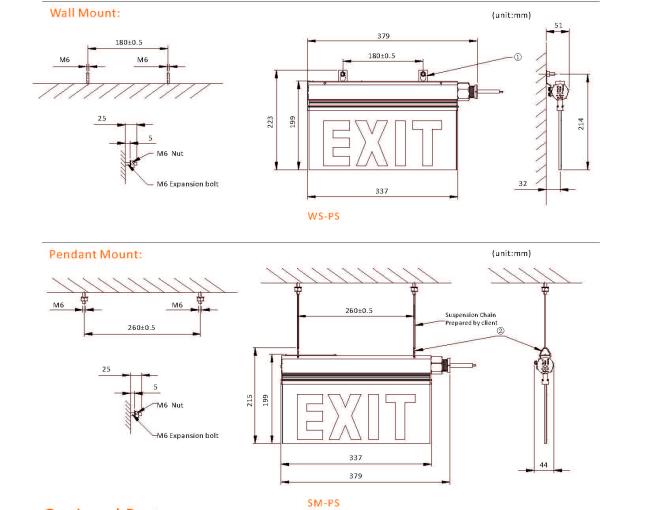

Size:379*199*44mm
Ambient
Temperature:
-20℃-+55℃
Connecting
Terminals:
3*1.0-4mm²(L+N+PE)
Cable
Entries:
1X
M25*1.5(M20*1.5,
NPT
3/4”
are
optional)
Earthing
Protection:
M4
(Internal
&
external
earth
bolts)
IP
Code:
IP54
Enclosure
Material:
Copper-free
Aluminium
Enclosure
Colour:
Grey
RAL7040
Coating:
Epoxy
powder
coating
Exposed
Fastener:
Stainless
steel
Protective
Cover:
Tempered
glass,Stand
7J
impact

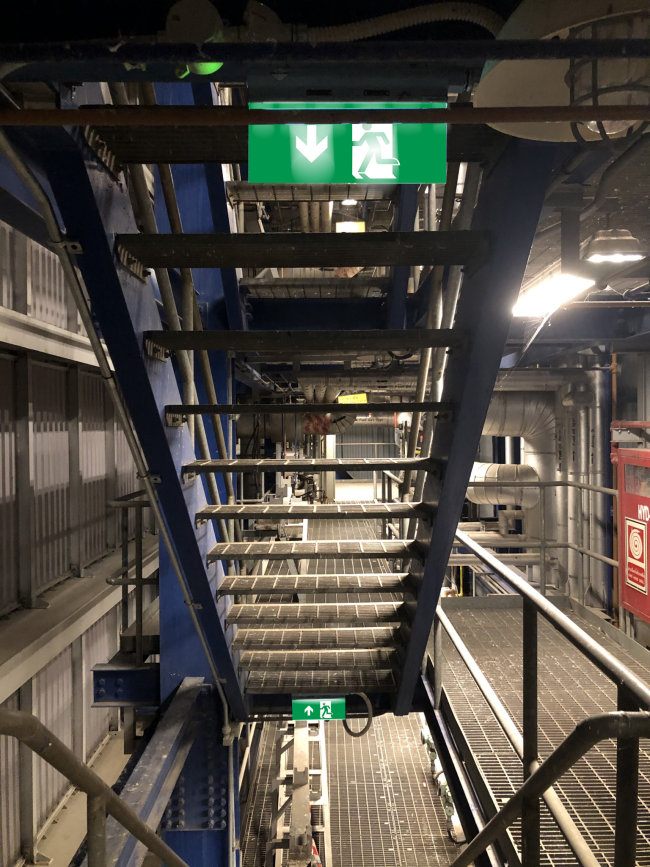

Applications:
1.
Cement
plants
2.
Warehouse
3.
Factory
4.
Power
Genera
5.
Power
Transmission
6.
Shipping
industry
Ordering
Information
:

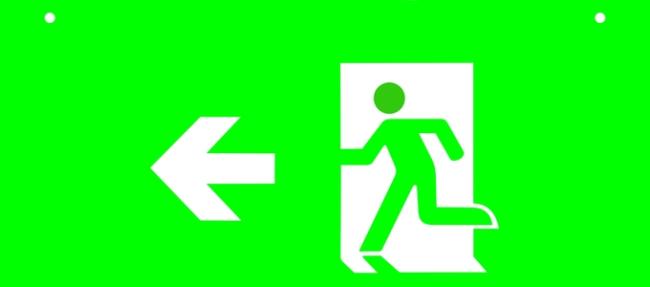

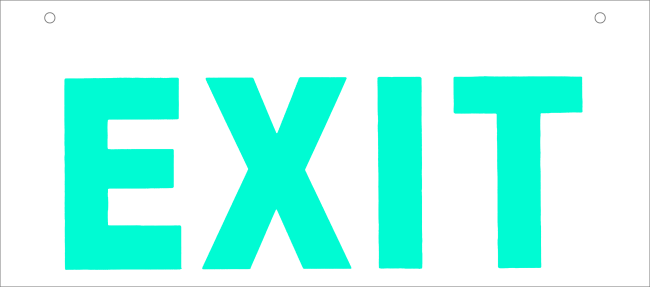

| P/N | Rated voltage(V) | Light Color | Exit Sign Designation |
|
KPSEW-GE-ON-E |
100~277 (141~392) |
White |
|
|

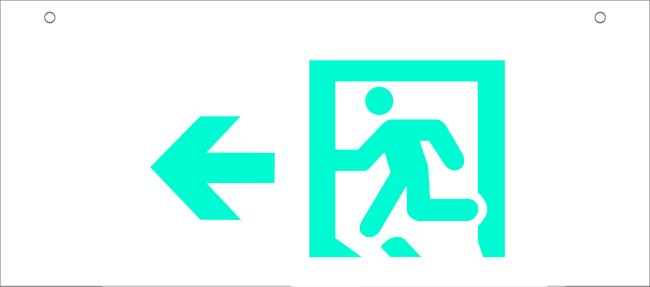

KPSEW-GHL-ON-E |
|
||
|

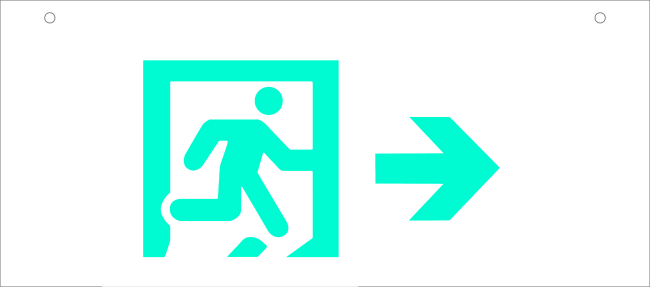

KPSEW-GHR-ON-E |
|
||
|

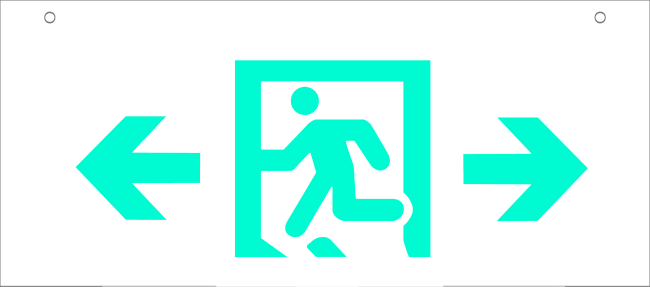

KPSEW-GHLR-ON-E |
|
||
|

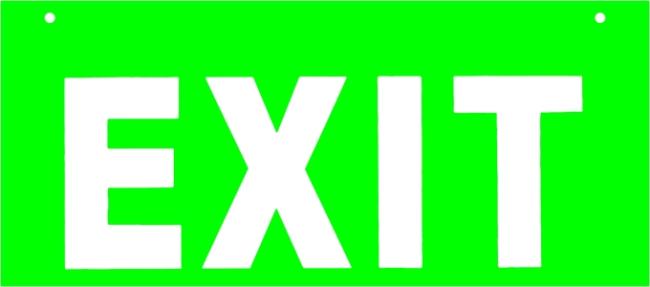

KPSEG-E-ON-E |
Green |
|
|
|
KPSEG-HL-ON-E |
|
||
|

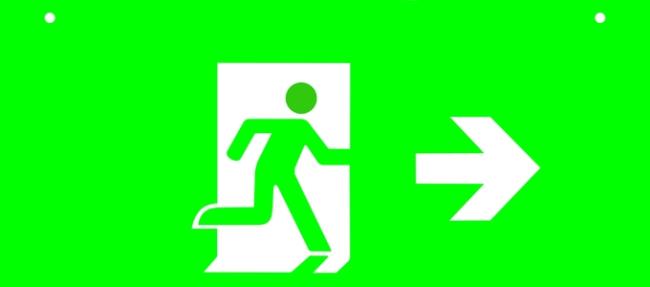

KPSEG-HR-ON-E |
|
||
|

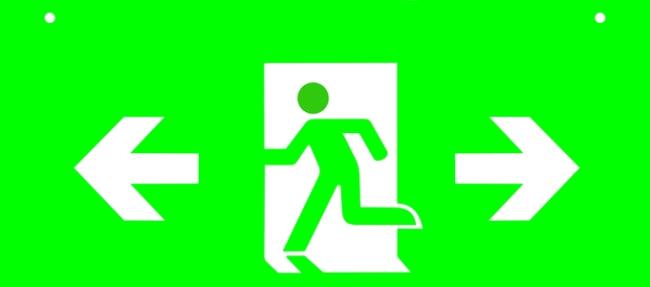

KPSEG-HLR-ON-E |
|
