| Price | negotiation |
| MOQ | 1 set |
| Delivery Time | 15-90 work days |
| Brand | JWIM |
| Place of Origin | China |
| Certification | CE，ISO，GMP |
| Model Number | GX-16-8AH |
| Packaging Details | wooden cases |
| Payment Terms | L/C, T/T |
| Supply Ability | 1 Osets per month |
| Place of Origin | China | Machine Frame | SS304 |
| Packaging Details | wooden cases | Product Name | Pesticide Filling Machine |
| Capping Heads | 8 | Air Pressure | 0.6-0.8Mpa |
| Model Number | GX-16-8AH | Supply Ability | 1 Osets per month |
| Certification | CE，ISO，GMP | Filling Heads | 16 |
| Brand Name | JWIM | Payment Terms | L/C, T/T |
| Accuracy | ≤±1g（100ml）；≤2g（200-1000ml） | Filling Range | 50ml-1000ml |
| Price | negotiation | Delivery Time | 15-90 work days |
| Capacity | 9000 BPH （100ml bottle） | Minimum Order Quantity | 1 set |
| Suitable Bottle Size | Φ30－100mm height 80-250mm | Power | 7.5kw |
9000 Bottles Per hour Pesticide Filling Machine 50ml-1000ml Range 16 Heads
Pesticide filling and capping 2 in 1 machine introduction

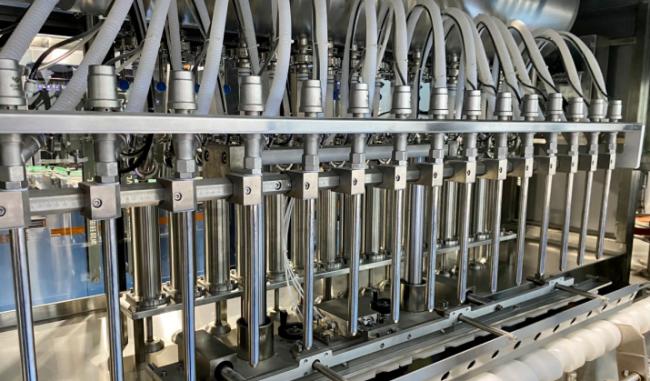

GX-16-8AH full automatic follow type filling and capping machine has horizontal structure. In the filling part, servo motor driven follow-up diving filling and volumetric metering filling principle are adopted to realize high speed and high precision of filling.
The capping part integrates bottle entry, nitrogen filling, cap sorting, capping and bottle exit all in one machine. It adpots cap grabbing, positioning screwing. In the process of capping, there is no bottle damage, no capping damage. This machine has high capping efficiency, high qualification rate and smooth operation.
Parameters of pesticide filling machine
| 1 | Filling speed | ≤9000 Bottles/hour (100ml) |
| 2 | Suitable bottle size |
Φ30－100mm
height
80-250mm
|
| 3 | Suitable cap size |
Φ20－80mm
height
20-40mm
|
| 4 | Accuracy |
≤±1g(200ml)；≤2g(200-1000ml)*water
|
| 5 | Feeding port height |
2380mm
|
| 6 | Feeding port diameter | Dn90 |
| 7 | Nozzle external diameter |
Φ18mm
|
| 8 | Minimum bottle opening inner diameter |
≥Φ22mm
|
| 9 | Air pressure |
0.6-0.8MPa
|
| 10 | Power |
～380V
50Hz/7.5KW
|
| 11 | Machine size |
5310×1790×2437mm(L×W×H)
|
| 12 | Machine weight | Around 4000kg |
Advantages
| 1 | Less worker required | Smart production line | Reduce labor intensity |
| 2 | Easy to use and fast to switch | Handle adjustment | Reduce Tools and Time |
| Calibration marking | Specification adjustment has reference | ||
| 3 | High quality and high appearance | Rotary capping | High qualified rate and good sealing |
| 4 | Safety, Environmental Protection | Safety equipment | transmission protection, electrical protection |
| Environmental protection | Stainless steel environmental protection cover, air intake, liquid tray, etc. | ||
| Strong visibility | Intelligent Production Line, High-end Upgrade |
Features of pesticide filling machine
1 High speed: the automatic follow-up and submergence filling method is adopted to complete the filling of products in the process of moving, which greatly reduces the pause time in the whole filling process. And the filling head automatically extends into the bottle for filling, no liquid overflow.
2 Double servo motors drive the filling mechanism to move up, down, left and right to ensure the continuity of the filling process
Application

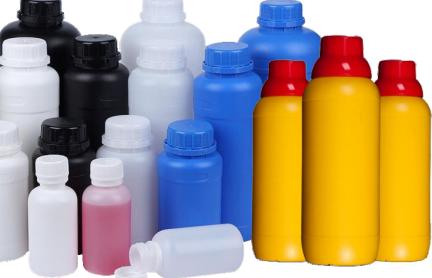

Strong versatility: widely used in pesticide, fine chemical, daily chemical, fertilizer, oil and other industries, 50-1000ml bottle automatic filling and capping.
