| Price | negotiation |
| MOQ | 1 set |
| Delivery Time | 15-90 work days |
| Brand | Jinwang |
| Place of Origin | made in China |
| Certification | CE,CO,ISO |
| Model Number | LP-D70 |
| Packaging Details | wooden cases |
| Payment Terms | L/C, T/T |
| Supply Ability | 1 Osets per month |
| Bottle Specification | L120-230mm W70-120mm H250-350mm | Speed | ≤3000 Bottles per hour |
| Place of Origin | made in China | External Dimension | without bottle elevator 3300×2315×195mm（L×W×H）mm |
| Power Source | 380V 50Hz | Packaging Details | wooden cases |
| Air Source | 0.5-0.7 Mpa stable and clean air | Model Number | LP-D70 |
| Supply Ability | 1 Osets per month | Certification | CE,CO,ISO |
| Weight | 1200kg | Name | 3-5L Square Barrel Intelligent Automatic Bottle Unscrambler |
| Brand Name | Jinwang | Payment Terms | L/C, T/T |
| Conveyor Height | 900 ±50mm(may customized) | Price | negotiation |
| Delivery Time | 15-90 work days | Minimum Order Quantity | 1 set |
| Model | LP-D70 | Power | 4.5KW |
3-5L Square Barrel Intelligent Automatic Bottle Unscrambler
This machine consists of a bottle elevator, mainframe, and conveyors. Adopts PLC control system to integrate each driving part together. Parameters can be changed by the touch screen to meet different required speeds. Different bottles are applicable just by changing the turnplate inside the bowl, and other parts can be freely adjusted. This unit meets GMP standard, which is made of SS304 and aluminum alloy. All driving areas are covered by protection doors, which makes machines safer and friendly-environmental.
Technical Parameters
| Items | performance |

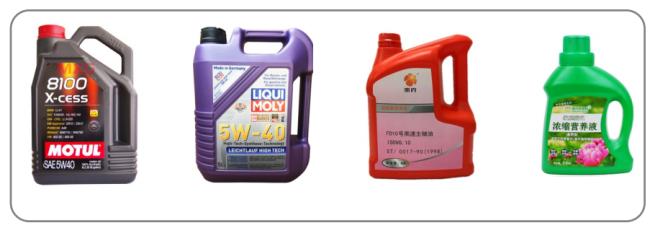

| Bottle spec. | L120-230mm W70-120mm H250-350mm |
| Speed | ≤3000 bottles per hour |
| Power supply | AC 380V, 50Hz |
| Power | 4.5 Kw |
| Conveyor height | 900mm±50mm (may be customized) |
| Machine dimension (L×W×H) | 4880mm×2430mm×2286mm |
| Machine weight | About 1200 Kg |
Applications

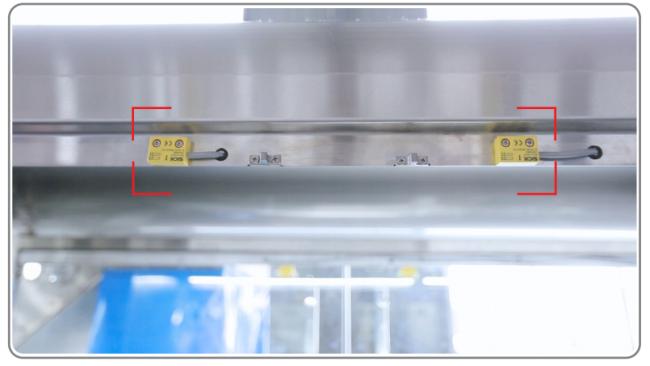

Safety Door Switch
