| Price | negotiation |
| MOQ | 1 set |
| Delivery Time | 15-90 work days |
| Brand | Jinwang |
| Place of Origin | made in China |
| Certification | CE,CO,ISO |
| Model Number | DGD-180B |
| Packaging Details | wooden cases |
| Payment Terms | L/C, T/T |
| Supply Ability | 1 Osets per month |
| Filling Err | ±1g | Place of Origin | made in China |
| External Dimension | 2766×2045×2340 (L×W×H)mm | Packing Volume | 2g-200g |
| Power Source | 380V 50Hz | Packaging Details | wooden cases |
| Air Source | 0.6-0.8 Mpa stable and clean air | Packing Speed | 2100-3300 bags per hour |
| Model Number | DGD-180B | Supply Ability | 1 Osets per month |
| Certification | CE,CO,ISO | Weight | 1900kg |
| Name | Automatic Horizontal Sachet Filling Sealing Machine | Brand Name | Jinwang |
| Payment Terms | L/C, T/T | Air Consumption | 500L/min |
| Price | negotiation | Delivery Time | 15-90 work days |
| Minimum Order Quantity | 1 set | Model | DGD-180B |
| Power | 4.5KW |

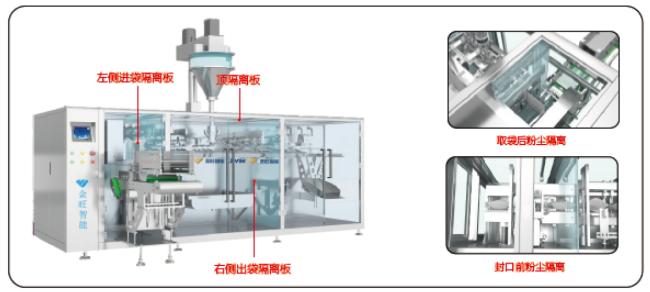

2g-200g Automatic Preformed Pouch Packaging Machine Horizontal Sachet Filling Sealing Machine
DGD-180B Automatic Horizontal Preformed Bag Packaging Machine is independently developed by our company. With more than ten years of accumulation and precipitation by industry customers, it has created a stable and reliable intelligent packaging equipment that meets GMP standards. Using the integrated programmable control system, realize the process automation of bag taking→ bag opening→ inspection→ filling, sealing, and finished products are realized. The machine has a reasonable design and a novel appearance. The automatic filling of various materials such as powder, premix, and granules can be packed on this machine by replacing the filler. Integral 304 stainless steel frame with glass door cover, good sealing performance.
Technical Parameters
| 1 | Production Capacity | 35- 55bag/min *packing speed depends on packing material |
| 2 | Applicable Bag | W80-180mm L110-250mm |
| 3 | Packing Volume | ≤200g *packing volume depends on density and packing size |
| 4 |
Filling Precision (with loadcell) |
±1g (100g) *depends on the material |
| 5 | Power | 4.5KW |
| 5 | Power Source | 3P/AC380V/50Hz |
| 6 | Duster Pipe | Φ98mm |
| 7 | Air Pressure | 0.6-0.8MPa |
| 8 | External Dimension | 2766×2045×2340mm(L×W×H) |
| 9 | Weight | 1900Kg |

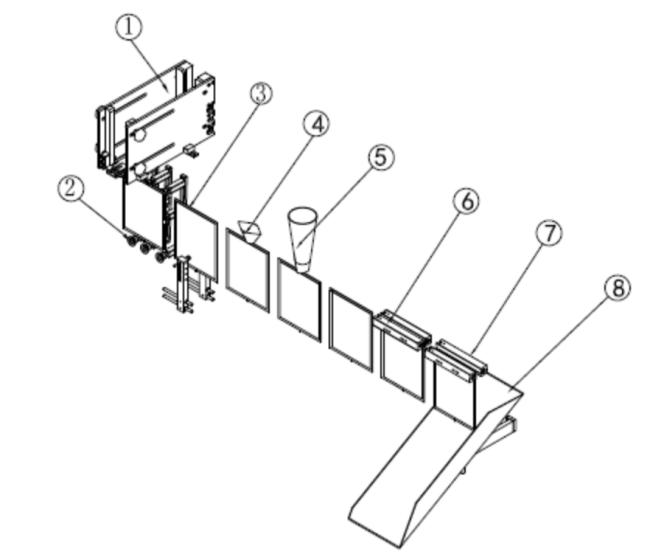

Process Flowchart
