| Price | Negotiation |
| MOQ | 1 set |
| Delivery Time | 15-90 work days |
| Brand | JWIM |
| Place of Origin | Made in China |
| Certification | CE,CO,ISO |
| Model Number | DGD-210 |
| Packaging Details | Wooden cases |
| Payment Terms | L/C, T/T |
| Supply Ability | 1 set per month |
| Place of Origin | Made in China | Warranty | 1 Year |
| Filling Precision | ±1% | Packaging Details | Wooden cases |
| Air Pressure | 0.5-0.7MPA | Packaging Capacity | ≤300g |
| Material | SUS304 | Model Number | DGD-210 |
| Supply Ability | 1 set per month | Certification | CE,CO,ISO |
| Automatic Grade | Automatic | Applicable Bag Size | W100-200mm L120-300mm |
| Brand Name | JWIM | Payment Terms | L/C, T/T |
| Equipment Size | 2766×2044×1486mm(L×W×H) | Price | Negotiation |
| Delivery Time | 15-90 work days | Minimum Order Quantity | 1 set |
| Productive Power | 40-50bags / min | Power | AC380V 50Hz/4.5KW |
5g 300g Powder Automatic Pouch Filling and Sealing Machine Liquid Sachet Packing Machine

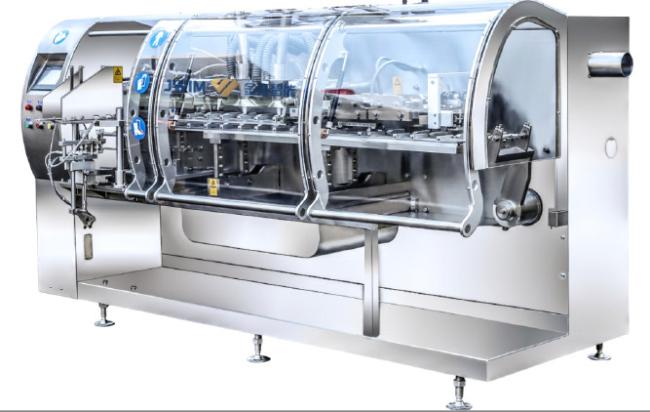

1. Description of the Granule Automatic Pouch Packaging Machine
DGD-210
full-automatic
horizontal
bag
feeding
bagging
machine
includes
a
bag-taking
mechanism,
bag
opening
detection,
air
blowing
mechanism,
filling
mechanism,
heat
sealing,
cold
sealing
shaping,
and
other
mechanisms.
The
coordinated
action
of
each
mechanism
is
completed
through
the
high-precision
imported
cam
divider,
and
the
position
signal
is
fed
back
by
the
encoder
on
the
main
shaft.
Under
the
programmable
control
of
PLC,
the
functions
of
bag-taking
→
bag
opening
→
detection
→
filling
→
sealing
→
finished
product
are
realized.
The
machine
has
a
reasonable
design,
novel
appearance,
and
large-area
arc
plexiglass
door,
which
meets
the
production
requirements
of
safety
and
environmental
protection.
At
the
same
time,
the
automatic
filling
of
powder,
particles,
and
other
materials
can
be
realized
on
the
machine
by
changing
the
filler.
It
is
applicable
to
the
packaging
production
of
all
kinds
of
prefabricated
bag
products.
2. Parameters of the Granule Automatic Pouch Packaging Machine
| Productive Power. | 40-50 bags / min * actual capacity depends on packaging materials |
| Applicable Bag Size | W100-200mm L120-300mm |
| Packaging Capacity | ≤300g |
| Filling Precision | ±1% |
| Air Pressure | 0.5-0.7MPA |
| Power | AC380V 50Hz/4.5KW |
| Equipment Size | 2766×2044×1486mm(L×W×H) |
3. Features of the Granule Automatic Pouch Packaging Machine
a) The equipment is mainly used in the production of all kinds of prefabricated bags, with beautiful packaging and molding; Good molding; Almost no waste of packaging materials and materials.
b) Unique bag opening detection function: no bag opening, filling, and heat sealing. The bag can be reused without wasting materials and saving production costs for users.
c) The original cam splitter imported from Taiwan makes the transmission precision high, stable, and reliable.
d) Large capacity bag placing mechanism: reduce bag placing frequency and improve production efficiency during equipment operation.
e) Large area arc-shaped plexiglass safety door is standard, with a beautiful appearance and large visible area. At the same time, the overall arc-shaped glass can effectively control the overflow of dust and odor generated in material packaging, so as to truly achieve safety and environmental protection.
f) The integrated control system customized by Schneider Electric of France is adopted, which has good compatibility, high temperature, and lower energy consumption.
g) Intelligent temperature control system: monitor the temperature change through touch display, so as to effectively control the heat sealing machine and ensure the sealing reliability. At the same time, further improve the beauty of the bag opening of the self-contained shaping mechanism, so as to make the packaged products easy to use and good-looking.
h) It is equipped with a small air storage tank to reduce the impact of external air pressure fluctuation on bag loading and bag opening. At the same time, the air source pressure detection system is equipped as standard.
