| Price | Negotiable |
| MOQ | 50 SHEETS |
| Delivery Time | 7-15DAYS |
| Brand | Mason |
| Place of Origin | China |
| Certification | SGS CE |
| Model Number | M-000 |
| Packaging Details | Max 1500kgs on one pallet |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10000KGS PER DAY |
| Place of Origin | China | Size | 1220*2440mm |
| Packaging Details | Max 1500kgs on one pallet | Light transmission | 92% |
| Material | 100% virgin material | Model Number | M-000 |
| Supply Ability | 10000KGS PER DAY | Certification | SGS CE |
| Brand Name | Mason | Payment Terms | T/T, Western Union |
| Thickness | 3-20mm | Packing | Film,Protect corner and pallet |
| Price | Negotiable | Delivery Time | 7-15DAYS |
| Product name | Laser Dot LED Acrylic Light Guide Plate LGP PMMA For LED Light Box | Minimum Order Quantity | 50 SHEETS |
| User Temperature | -40ºC – + 80ºC | Application | LED,advertising,sign and ect |
Laser Dot LED Acrylic Light Guide Plate LGP PMMA For
LED Light Box
Description

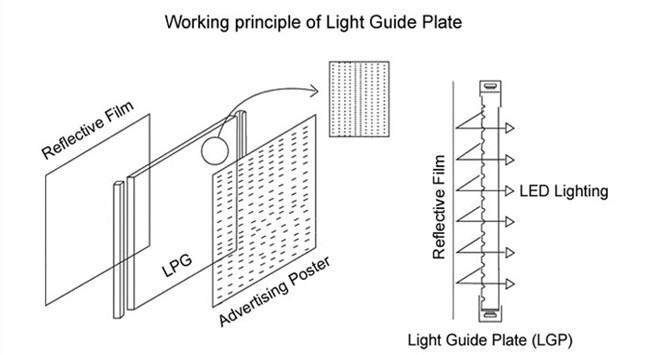

“MASON” light guide plates replace the traditional carving and silk screen process,can be cut at will and
can interpret more color combinations with LED light source to more the application more wide.The nanometer
light scattering particles are added according to different production requirements and plate thickness to change
a line source or point light source into a uniform area source.Relative to the ordinary transparent plates, the
light guide plate has more excellent color displaying efficiency.
Application
Mainly used in ultra-thin light boxes,LCD backlight,flat-type decorative lighting and luminous signboards,etc.
MASON LDP SPECIFICATION
(The specification is 3mm plate, size will decreases with the increase of thickness)
| Code | Size with rubber edge | Size after cut edge |
| Q | 1250*1850mm | 1210*1820mm |
| L0 | 1250*2450mm | 1210*2420mm |
| L1 | 1270*2490mm | 1220*2440mm |
| L2 | 1310*2530mm | 1270*2490mm |
| L3 | 1350*2570mm | 1310*2530mm |
| N | 1550*3050mm | 1510*3020mm |
| M | 2050*3050mm | 2010*3010mm(Include Frosted) |
Product Display
100% VIRGIN PMMA
No printing ink and environmentally friendly.
Lighting uniformity can be 90% or above. Dot matrix is designed accordingly.
APPLICATION
FAQS
1.
What's
your
MOQ?
MOQ
is
flexible,if
items
we
have
stock,will
no
need
MOQ,if
not
stock,MOQ
with
one
rack.
2. How can we get samples?
Free samples can be send to you after all details confirmed. Freight collect.
3.Do you test all your goods before delivery?
Yes, we have 100% test before delivery
