| Price | Negotiable |
| MOQ | 100 |
| Delivery Time | 10-30 works day |
| Place of Origin | China |
| Model Number | SS-M2-8F-FL-D |
| Payment Terms | T/T, L/C |
| Supply Ability | 100.000 pcs per month |
| Place of Origin | China | Outlet/instrument | flange |
| Gasket/Packing | PTFE OR Graphite | Media | oil, gas, water |
| Material | Stainless steel | Model Number | SS-M2-8F-FL-D |
| Supply Ability | 100.000 pcs per month | Max. working pressure | 6000 psi |
| Payment Terms | T/T, L/C | Max. working temperature | 200℃ |
| Price | Negotiable | Delivery Time | 10-30 works day |
| Product name | Two-valve manifold | Minimum Order Quantity | 100 |
| Test/Vent | 1/4 female NPT | Inlet/process | 1/2 female NPT |

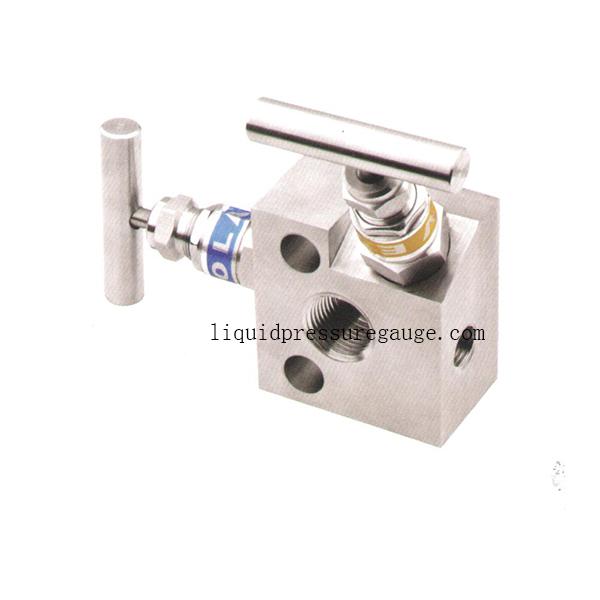

1/4 Female NPT 3000 Psi Instrument Manifold Valve 200℃ 2 Way Manifold
Instrument manifold, gauge valve, two-valve manifold, stainless steel, max. working pressure 6000 psi
Features:
- Material: Stainless steel
- Max. working temperature: 200℃
- Max. working pressure gauge: 6000 psi
- Inlet / process: 1/2 female NPT
- Outlet / instrument: Flange
- Gasket / packing: PTFE OR Graphite
| Material | stainless steel |
| Max. working temperature | 200℃ |
| Max. working pressure | 6000 psi |
| Inlet/process | 1/2 female NPT |
| Outlet/instrument | flange |
| Test/Vent | 1/4 female NPT |
| Gasket/Packing | PTFE OR Graphite |
| Seat/seal material | PTFE OR Graphite |
