| Price | Negotiable |
| MOQ | 1000 pcs |
| Delivery Time | 20-40 work days |
| Place of Origin | China |
| Model Number | YN-60 ( 0-40 bar ) |

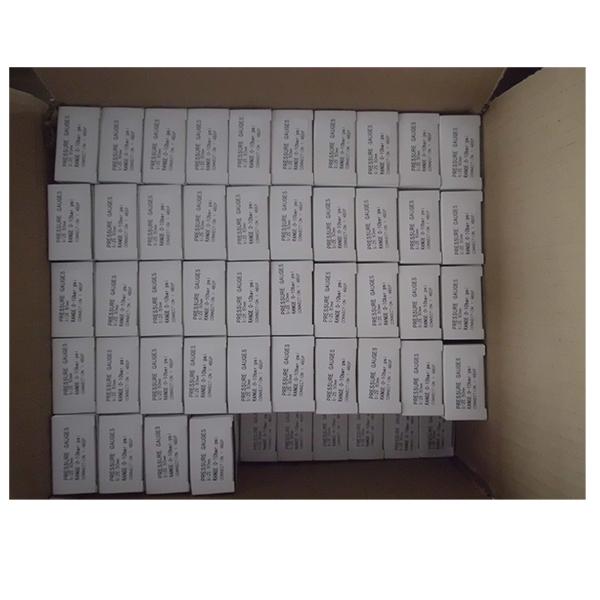

| Packaging Details | Inner paper box for each pressure gauge |
| Payment Terms | T/T, L/C |
| Supply Ability | 400,000 pcs per month |
| Place of Origin | China | Packaging Details | Inner paper box for each pressure gauge |
| Product Name | liquid filled Pressure gauge | Connection | 1/4" NPT/BSP/BSPT or made according to customers' request |
| Mount | Lower mount | Model Number | YN-60 ( 0-40 bar ) |
| Range | 0-40 bar | Supply Ability | 400,000 pcs per month |
| Connetion & socket: | Brass | Case | Stainless steel |
| Payment Terms | T/T, L/C | Accuracy | 2.5% |
| Price | Negotiable | Delivery Time | 20-40 work days |
| Minimum Order Quantity | 1000 pcs | Liquid filled | glycerine, silicone oil |

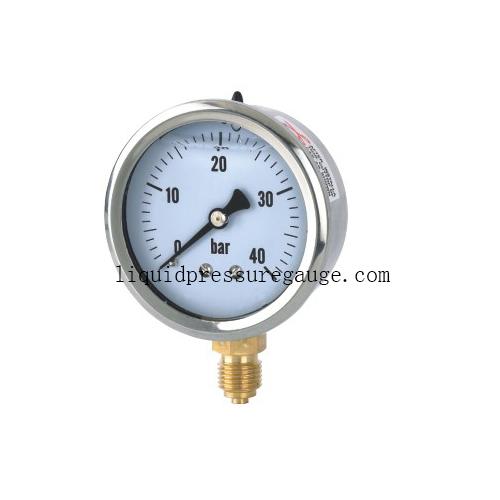

2-1/2 inch Pressure Gauge, glycerine, 0-40 bar, 1/4 BSP lower mount, stainless steel case and brass internal
Features:
- Single daul: bar
- Range:from vacuum to 15,000 psi
- Stainless steel case
- Brass connection
- 1/4 BSP lower mount
| Product name | Liquid filled pressure gauge |
| Application | It is used for measuring pressure of air, gas or liquid which does not corrode copper alloy. It can be used for measuring media pressure with vibration or pulsation. |
| Face dia | 2", 2-1/2" |
| Case | stainless steel |
| Ring | stainless steel |
| Connetion & socket: | brass |
| Movement | brass |
| Pointer and dial | aluminum |
| Window | safety glass |
| Liquid | glycerine, silicone oil |
| Range | Vacuum, compound, 0-15,000 psi |
| Mount | Lower mount |
| Accuracy | ±2.5% |
| Opitional 1 | with flange |
| Opitional 2 | U-clamp |
