| Price | Negotiable |
| MOQ | 1pc |
| Delivery Time | 3-5 workdays |
| Brand | OLYCOM |
| Place of Origin | Shenzhen, China |
| Certification | CE, ROHS |
| Model Number | IM-FS041600GW |
| Packaging Details | 1pc in box |
| Payment Terms | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Supply Ability | 600pcs per month |
| Place of Origin | Shenzhen, China | Packaging Details | 1pc in box |
| Product Name | 16 Port Industrial Ethernet Switch | Network Ports | 16pcs |
| Dimension | 1U (483x 275 x 44.5mm) | Model Number | IM-FS041600GW |
| Supply Ability | 600pcs per month | Certification | CE, ROHS |
| Brand Name | OLYCOM | Payment Terms | T/T, Western Union, L/C, D/A, D/P, MoneyGram |
| Fiber Ports | 4pcs | Price | Negotiable |
| Delivery Time | 3-5 workdays | Minimum Order Quantity | 1pc |
| Warranty Time | 3years | Managed | L2 |
16 Port Industrial Ethernet Switch Managed L2 With 4pcs SFP Fiber Ports
Introduction
IM-FS041600GW series is the 10/100/1000M 16 Port Industrial Ethernet Switch , operating temperature-40 ℃ to + 85℃, support wide voltage dual power input, meet IP30 protection degree and EMC industrial grade requirements, support many managed functions, include RSTP IGMP, VLAN, Qos, IPV6, Loop protection, ERPS, RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP and so on. pass through dangerous environmental certification and comply with FCC and CE standards.
Key Features
4 x 1000Mbps SFP fiber ports
Support cable diagnosis and can locate the fault point
Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services
Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
Support IGMP agent report, MLD snooping
Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
Spectification
Product Name: 16 Port Industrial Ethernet Switch (4F+16TP)
Model No.: IM-FS041600GW
Port: 4 x 1000Mpbs SFP ports (Port FX3 and FX4 are COMBO port), 16 x10/100/1000M UTP RJ45
Standard: IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID: 4096
Jumbo Frame: 9.6KB
MAC Address Table Size: 8K
Transmission Mode: storage and forward
System Bandwidth: 48Gbps (non-traffic jam)
Network Media: 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m), 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m), SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs: Power, network, fiber
Power supply: Input voltage:DC 9-36V(support Non-polar power input).
Working Temperature: -40°～ 85°C
Working Humidity: 5%～95%,non-condensing
Safety Class: IP30
Dimension: 483x 275 x 44.5mm
Replacement within 1year; 5 years repairing
Application

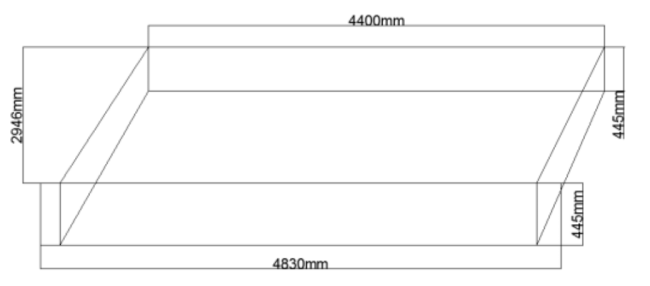

Product Dimension
