| Price | 0.4~0.6 USD/PC |
| MOQ | 1000PCS |
| Delivery Time | 10 Workdays |
| Brand | AMPFORT |
| Place of Origin | DONGGUAN,GUANGDONG,CHINA |
| Certification | UL,CSA |
| Model Number | R3-13 |
| Packaging Details | Bulk,10pcs per bag |
| Payment Terms | T/T |
| Supply Ability | 100,000,000PCS PER MONTH |
| Place of Origin | DONGGUAN,GUANGDONG,CHINA | Size | 6.3X30mm AND 6.3X32mm |
| Packaging Details | Bulk,10pcs per bag | Insulation Resistance: | DC 500V 100M ohm Min. |
| Model Number | R3-13 | Supply Ability | 100,000,000PCS PER MONTH |
| Terminal | Nickel-plated copper alloy, solder type | Certification | UL,CSA |
| Name | Fuse Holder R3-13 | Ratings | 10A 250V AC |
| Brand Name | AMPFORT | Payment Terms | T/T |
| Insulating Boby | Bakelite | Mounting | Panel Mount |
| Price | 0.4~0.6 USD/PC | Delivery Time | 10 Workdays |
| Minimum Order Quantity | 1000PCS | Contact Resistance | 50m ohm Max. |
Nut
Mounting
Quick
Connect
3AG
6.35x30mm
Glass
Fuse
Holder
R3-13
10A
250V
Description
Of
The Fuse
Holder
R3-13
10A
250V
Panel
mount fuse
holder
R3-9
designed
for
6.3x30/6.3x32mm
cartridge
fuse
both
ceramic
and
glass
type
,
max
rating
is
10A
250VAC.
Features Of
The
Fuse
Holder
R3-13
10A
250V
*
Electrical:Rated
at
10A
250V
AC
*
Insulating
Boby:Bakelite
*
Konb:Finger-grip
fuse
extractor
type
with
nickel-plated
copper
alloy
insert.Spring
loaded.
*
Terminals:Nickel-plated
copper
alloy,
solder
type
* Contact Resistance:50m ohm Max.
* Insulation Resistance:DC 500V 100M ohm Min.
* Dielectric
Strength:AC
1500V
1minute.
Application Of The Fuse Holder R3-13 10A 250V
Used
to
increase
the
car
power
outlet,
achieve
nondestructive
electric
effect.
Simple
to
troubleshoot
for
your
car.An
essential
tool
for
car
owner.
Example:Car
alarms,GPS,Car
Recorder,Cell
phone
charger,DVD
player,Satellite
radio,etc.

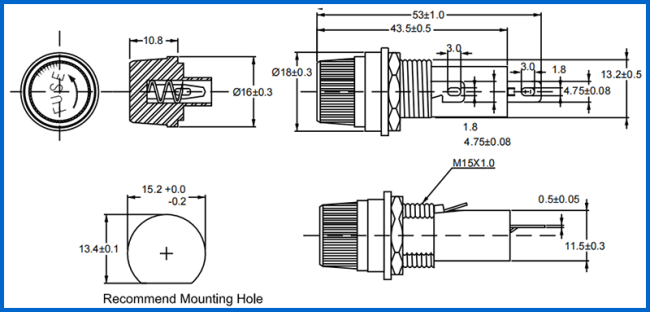

Dimensional
Drawing Of
The
Fuse
Holder
R3-13
10A
250V
Main
Parameters Of
The
Fuse
Holder
R3-13
10A
250V
| Product Type | Fuse holder |
| P/N | R3-13 |
| Body Material | Bakelite |
| Nominal voltage | 250V AC |
| Nominal current | 10A |
| Connection | Faston |
| Mounting | Panel Mount |
| Suitable For | Micro fuse 6x30mm |
| Number of fuses | 1 |
| Terminal | Nickel-plated copper alloy, solder type |
R3
Series
Fuse
Holder
Summary
FUSE
HOLDERS
-
AC
RATING
| P/N | Fuse Size | Ratings | Cap Type | Safety Approved |
| R3-9 |
R3-9A φ 6.4*30mm φ6.35*31.8mm R3-9C φ6.4*30mm φ6.35*31.8mm R3-9CO φ6.4*30mm φ6.35*31.8mm |
15A 250V AC | Bayonet Screw | UL/CSA |
| R3-11 |
R3-11 φ5.0*20mm R3-11B φ5.0*20mm |
10A 250V AC | Bayonet Screw | UL/CSA |
| R3-12 | φ 5.0*20mm | 10A 250V AC | Screw | UL/CUL/CSA |
| R3-12E | φ 5.0*20mm | 10A 250V AC | Screw | UL/CUL/CSA |
| R3-13 |
φ
6.0*30mm φ 6.35*31.8mm |
10A 250V AC | Screw | UL/CUL/CSA |
| R3-13E |
φ
6.0*30mm φ 6.35*31.8mm |
10A 250V AC | Screw | UL/CUL/CSA |
| R3-14A |
R3-14A φ 6.0*30mm φ 6.35*31.8mm R3-14A2 φ 6.4*30mm φ 6.35*31.8mm |
R3-14A 10A 250V AC R3-14A2 30A 250V AC |
Bayonet | UL/CUL/CSA |
| R3-14C |
φ
6.0*30mm φ 6.35*31.8mm |
10A 250V AC | Bayonet | UL/CUL/CSA |
| R3-14D |
φ
6.0*30mm φ 6.35*31.8mm |
10A 250V AC | Bayonet | UL/CUL/CSA |
| R3-21A | φ 6.0*30mm | 10A 250V AC | Bayonet | UL |
| R3-22A |
φ
6.0*30mm φ 6.35*31.8mm |
10A 250V AC | Screw | UL/CSA |
| R3-26 | φ 5.0*20mm | 10A 250V AC | Screw | UL |
| R3-28A |
φ
6.0*30mm φ 6.35*31.8mm |
15A 250V AC | Bayonet | UL/CSA |
| R3-28C |
φ
6.0*30mm φ 6.35*31.8mm |
15A 250V AC | Bayonet | CUL/CSA |
| R3-44 |
R3-44AA φ 6.35*31.8mm φ 6.0*30mm R3-44BA φ 5.0*20mm R3-44CA φ 6.35*31.8 φ 6.0*30mm |
15A 250V AC |
Bayonet Bayonet Screw |
CUL/CSA |
| R3-45 |
R3-45A φ 5.0*20mm R3-45B φ 6.0*30mm φ 6.35*31.8mm |
R3-45A 8A 125/250V AC R3-45B 15A 125V AC 10A 250V AC |
UL/CSA | |
| R3-46 |
R3-46A φ 6.0*30mm φ 6.35*31.8mm R3-46B φ 5.0*20mm R3-46C φ 6.35*31.8mm φ 6.0*30mm |
15A 250V AC |
Bayonet Bayonet Screw |
CUL/CSA |
| R3-49 |
R3-49A φ 6.35*31.8mm φ 6.0*30mm R3-49C φ 6.35*31.8mm φ 6.0*30mm |
10A 250V AC |
Bayonet Screw |
UL |
| R3-53 |
φ
6.4*30mm φ 6.35*31.8mm |
15A 250V AC | Screw | UL/CUL |
| R3-54 | φ 5.0*20mm |
6.3A
250V
AC 10A 125V AC |
Screw | UL/CUL/VDE |
| R3-54B | φ 5.0*20mm |
6.3A
250V
AC 10A 125V AC |
Screw | UL/CUL/VDE |
| R3-55A |
φ
6.34*30mm φ 6.35*31.8mm |
20A 250V AC | Screw | CUL |
| R3-55B |
φ
6.0*30mm φ 6.35*31.8mm |
20A 250V AC | Screw | CUL |
| R3-57 | φ 5.2*20mm | 10A 250V AC | Bayonet | |
| R3-61 |
φ
6.35*30mm φ 6.35*31.8mm |
10A
250VAC 10A 12V DC |
Screw | |
| R3-62-AC |
φ
6.0*30mm φ 6.35*31.8mm |
15A
125V
AC 10A 250V AC |
||
| R3-63B-01-1 |
φ
6.0*30mm φ 6.35*31.8mm |
20A 250V AC | Screw | CUL |
| R3-66 |
φ
6.35*30mm φ 6.35*31.8mm |
10A 250VAC | Screw | |
| R3-71 | φ5.0*20mm |
10A
250V
AC 10A 12V DC |
Screw | |
| R3-74A |
φ
6.35*31.8
mm φ 6.0*30 mm |
10A 250V AC | Bayonet | CUL |
| R3-78 | φ 5*20 mm | 10A 250V AC | Bayonet | CUL |
FUSE
HOLDERS
-
HEAVY
DUTY
| P/N | FUSE SIZE | RATINGS | CAP TYPE | Safety Approved |
|
R3-18 |
φ 10.3*38.1mm | 30A 600V AC | Bayonet | CUL/CSA |
|
R3-41 |
φ 10.3*38.1mm | 30A 600V AC | Screw | UL |
| R3-72 | MAXI FUSE | 60A max 12/24/32V DC | Screw | |
| R3-75 |
φ10.3(41")
*
38.1mm(1.5") Class CC |
30A 600V AC | Screw |
FUSE
HOLDERS
-
PCB
MOUNT
| P/N | FUSE SIZE | RATINGS | CAP TYPE | Safety Approved |
|
R3-24 |
φ 5.0*20mm | 10A 250V AC | Bayonet | UL/CUL |
FUSE
HOLDERS
-
DC
RATING
| P/N | FUSE SIZE | RATINGS | CAP TYPE | Safety Approved |
| R3-52 | MAX- BLADE FUSE | 20A 24V DC | ||
| R3-62-DC |
φ
6.35*31.8
mm φ 6.0*30 mm |
10A 12V/24V DC |
||
| R3-63B-01-1L |
φ
6.35*31.8
mm φ 6.0*30 mm |
20A 32V DC | Screw | CUL |
| R3-67 |
ATO
BLADE
FUSE MTA FUSE |
30A 12V/24V DC |
