| Price | 0.4~0.6 USD/PC |
| MOQ | 1000PCS |
| Delivery Time | 10 Workdays |
| Brand | AMPFORT |
| Place of Origin | DONGGUAN,GUANGDONG,CHINA |
| Certification | UL,CSA |
| Model Number | R3-11 |
| Packaging Details | Bulk,10pcs per bag |
| Payment Terms | T/T |
| Supply Ability | 100,000,000PCS PER MONTH |
| Fuses application | Cylindrical fuses | Panel thickness | max. 4.5mm |
| Place of Origin | DONGGUAN,GUANGDONG,CHINA | Size | 5x20mm |
| Gross weight | 6.5g | Packaging Details | Bulk,10pcs per bag |
| Electrical Ratings | 10A 250V AC | Model Number | R3-11 |
| Supply Ability | 100,000,000PCS PER MONTH | Certification | UL,CSA |
| Name | Fuse Holder R3-11 | Brand Name | AMPFORT |
| Payment Terms | T/T | Insulating Boby | Bakelite |
| Mounting | on panel | Cap | bayonet |
| Price | 0.4~0.6 USD/PC | Delivery Time | 10 Workdays |
| Minimum Order Quantity | 1000PCS | Mounting hole diameter | Ø12.5mm |
Bayonet
Cap
Bakelite
2AG
Fuse
Holder
R3-11
10A
250V
For
5x20mm
Cylindrical
Fuse
Link
Description
Of
The 2AG
Fuse
Holder
R3-11
Panel
mount fuse
holder
R3-11 designed
for
for
5
x
20mm
fuses.
The
fuse
holder
is
secured
to
the
panel
by
a
nut
and
has
solder
tag
connections.
Features Of
The
2AG
Fuse
Holder
R3-11
*
Connections:
Solder
tags
*
Length:
33mm
*
Diameter
Ø:
15mm
*
Max.
temperature:
+85°C
*
Min.
temperature:
-25°C
*
Mounting
type:
Panel-mount
*
Nominal
current:
10A
*
Nominal
voltage:
250V
AC
*
Protection
type:
IP40
*
Suitable
for:
Micro
fuse
5
x
20mm
*
AMPFORT
Type
R3-11

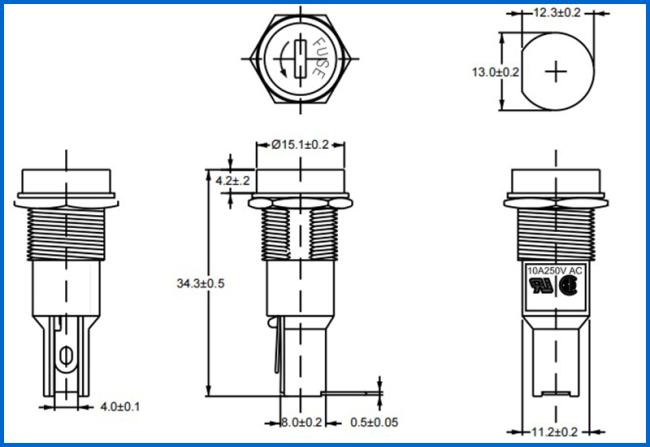

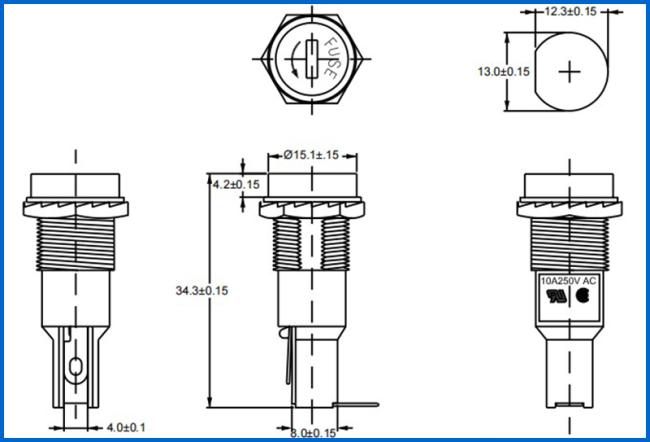

Dimensional
Drawing Of
The
2AG
Fuse
Holder
R3-11
Metal
Nut
Type
Plastic Nut Type
Main
Parameters Of
The
2AG
Fuse
Holder
R3-11
| Voltage | 250V |
| Colour | Black |
| Panel Cut Out | 12mm x 12.7mm |
| Fixing | Screw |
| Termination | Solder Terminals |
| Flame Retardancy | UL94 V0 (Higher) |
| Panel Thickness | 0.0-4.5mm |
| Current Rating | 10A |
| Product Type | Panel Mount Fuse Holders |
R3
Series
Fuse
Holder
Summary
FUSE
HOLDERS
-
AC
RATING
| P/N | Fuse Size | Ratings | Cap Type | Safety Approved |
| R3-9 |
R3-9A φ 6.4*30mm φ6.35*31.8mm R3-9C φ6.4*30mm φ6.35*31.8mm R3-9CO φ6.4*30mm φ6.35*31.8mm |
15A 250V AC | Bayonet Screw | UL/CSA |
| R3-11 |
R3-11 φ5.0*20mm R3-11B φ5.0*20mm |
10A 250V AC | Bayonet Screw | UL/CSA |
| R3-12 | φ 5.0*20mm | 10A 250V AC | Screw | UL/CUL/CSA |
| R3-12E | φ 5.0*20mm | 10A 250V AC | Screw | UL/CUL/CSA |
| R3-13 |
φ
6.0*30mm φ 6.35*31.8mm |
10A 250V AC | Screw | UL/CUL/CSA |
| R3-13E |
φ
6.0*30mm φ 6.35*31.8mm |
10A 250V AC | Screw | UL/CUL/CSA |
| R3-14A |
R3-14A φ 6.0*30mm φ 6.35*31.8mm R3-14A2 φ 6.4*30mm φ 6.35*31.8mm |
R3-14A 10A 250V AC R3-14A2 30A 250V AC |
Bayonet | UL/CUL/CSA |
| R3-14C |
φ
6.0*30mm φ 6.35*31.8mm |
10A 250V AC | Bayonet | UL/CUL/CSA |
| R3-14D |
φ
6.0*30mm φ 6.35*31.8mm |
10A 250V AC | Bayonet | UL/CUL/CSA |
| R3-21A | φ 6.0*30mm | 10A 250V AC | Bayonet | UL |
| R3-22A |
φ
6.0*30mm φ 6.35*31.8mm |
10A 250V AC | Screw | UL/CSA |
| R3-26 | φ 5.0*20mm | 10A 250V AC | Screw | UL |
| R3-28A |
φ
6.0*30mm φ 6.35*31.8mm |
15A 250V AC | Bayonet | UL/CSA |
| R3-28C |
φ
6.0*30mm φ 6.35*31.8mm |
15A 250V AC | Bayonet | CUL/CSA |
| R3-44 |
R3-44AA φ 6.35*31.8mm φ 6.0*30mm R3-44BA φ 5.0*20mm R3-44CA φ 6.35*31.8 φ 6.0*30mm |
15A 250V AC |
Bayonet Bayonet Screw |
CUL/CSA |
| R3-45 |
R3-45A φ 5.0*20mm R3-45B φ 6.0*30mm φ 6.35*31.8mm |
R3-45A 8A 125/250V AC R3-45B 15A 125V AC 10A 250V AC |
UL/CSA | |
| R3-46 |
R3-46A φ 6.0*30mm φ 6.35*31.8mm R3-46B φ 5.0*20mm R3-46C φ 6.35*31.8mm φ 6.0*30mm |
15A 250V AC |
Bayonet Bayonet Screw |
CUL/CSA |
| R3-49 |
R3-49A φ 6.35*31.8mm φ 6.0*30mm R3-49C φ 6.35*31.8mm φ 6.0*30mm |
10A 250V AC |
Bayonet Screw |
UL |
| R3-53 |
φ
6.4*30mm φ 6.35*31.8mm |
15A 250V AC | Screw | UL/CUL |
| R3-54 | φ 5.0*20mm |
6.3A
250V
AC 10A 125V AC |
Screw | UL/CUL/VDE |
| R3-54B | φ 5.0*20mm |
6.3A
250V
AC 10A 125V AC |
Screw | UL/CUL/VDE |
| R3-55A |
φ
6.34*30mm φ 6.35*31.8mm |
20A 250V AC | Screw | CUL |
| R3-55B |
φ
6.0*30mm φ 6.35*31.8mm |
20A 250V AC | Screw | CUL |
| R3-57 | φ 5.2*20mm | 10A 250V AC | Bayonet | |
| R3-61 |
φ
6.35*30mm φ 6.35*31.8mm |
10A
250VAC 10A 12V DC |
Screw | |
| R3-62-AC |
φ
6.0*30mm φ 6.35*31.8mm |
15A
125V
AC 10A 250V AC |
||
| R3-63B-01-1 |
φ
6.0*30mm φ 6.35*31.8mm |
20A 250V AC | Screw | CUL |
| R3-66 |
φ
6.35*30mm φ 6.35*31.8mm |
10A 250VAC | Screw | |
| R3-71 | φ5.0*20mm |
10A
250V
AC 10A 12V DC |
Screw | |
| R3-74A |
φ
6.35*31.8
mm φ 6.0*30 mm |
10A 250V AC | Bayonet | CUL |
| R3-78 | φ 5*20 mm | 10A 250V AC | Bayonet | CUL |
FUSE
HOLDERS
-
HEAVY
DUTY
| P/N | FUSE SIZE | RATINGS | CAP TYPE | Safety Approved |
|
R3-18 |
φ 10.3*38.1mm | 30A 600V AC | Bayonet | CUL/CSA |
|
R3-41 |
φ 10.3*38.1mm | 30A 600V AC | Screw | UL |
| R3-72 | MAXI FUSE | 60A max 12/24/32V DC | Screw | |
| R3-75 |
φ10.3(41")
*
38.1mm(1.5") Class CC |
30A 600V AC | Screw |
FUSE
HOLDERS
-
PCB
MOUNT
| P/N | FUSE SIZE | RATINGS | CAP TYPE | Safety Approved |
|
R3-24 |
φ 5.0*20mm | 10A 250V AC | Bayonet | UL/CUL |
FUSE
HOLDERS
-
DC
RATING
| P/N | FUSE SIZE | RATINGS | CAP TYPE | Safety Approved |
| R3-52 | MAX- BLADE FUSE | 20A 24V DC | ||
| R3-62-DC |
φ
6.35*31.8
mm φ 6.0*30 mm |
10A 12V/24V DC |
||
| R3-63B-01-1L |
φ
6.35*31.8
mm φ 6.0*30 mm |
20A 32V DC | Screw | CUL |
| R3-67 |
ATO
BLADE
FUSE MTA FUSE |
30A 12V/24V DC |
