| Price | 0.25~0.35 USD/PC |
| MOQ | 1000PCS |
| Delivery Time | 20 Workdays |
| Brand | AMPFORT |
| Place of Origin | Dongguan,Guangdong,China |
| Certification | REACH,ROHS |
| Model Number | NSC10750JC-4200 |
| Packaging Details | Bulk,500pcs/bag |
| Payment Terms | T/T,Paypal |
| Supply Ability | 1,000,000pcs per month |
| Inner diameter | 3.0～3.2mm | Operating Temperature | -40 ～ +160℃ |
| Place of Origin | Dongguan,Guangdong,China | Shape | Ring |
| Packaging Details | Bulk,500pcs/bag | R80 | 74.6-90.6 ohm |
| Model Number | NSC10750JC-4200 | R50 | 216-264 ohm |
| Supply Ability | 1,000,000pcs per month | Certification | REACH,ROHS |
| Name | Ring NTC Thermistor | Brand Name | AMPFORT |
| Payment Terms | T/T,Paypal | Stroage temp | - 10 ℃ / + 40 ℃ |
| R25 | 728-764 ohm | Price | 0.25~0.35 USD/PC |
| Delivery Time | 20 Workdays | Minimum Order Quantity | 1000PCS |
| R100 | 40.6-48.6 ohm | Outer diameter | 5.9～6.3mm |
High Accuracy Ring NTC Thermistor 6mm For Vehicles Yachts Ship Meters Water Temperature Sensors
Description Of The Ring NTC Thermistor
Negative temperature coefficient (NTC) thermistors are among the most common devices used to monitor ECU temperatures. The NTC is a passive resistor, and the resistance of an NTC varies with temperature. More specifically, as the ambient temperature around an NTC increases, the resistance of the NTC decreases.The coolant temperature sensor has a built-in NTC resistor. The resistance of a Negative Temperature Coefficient (NTC) resistor decreases when the temperature increases. The resistor in the sensor together with a resistor in the ECU forms a voltage divider which is fed by a 5 V power supply.
Features Of The Ring NTC Thermistor
1:
Small
size,strong
power,strong
capability
of
surge
current
protection
2:
Fast
response
to
surge
corrent
3:
Big
material
constant(B
value),small
remain
resistance
4:
Longevity
of
service,high
reliability
5:
Integral
series,extensive
operating
range
6:
Thermistor
disk
with
lapped
Coplanar
front
surfaces
7:
Front
surfaces
silver-plated
for
clamp
contacting
8:
Options
available
on
requestAlternative
resistance
ratings
9:
Custom
Specifications
10:
Rated
temperatures
and
tolerances
available
Application Of The Ring NTC Thermistor
*
Automotive
electronics
*
Measurement
of
cooling
water
and
*
Measurement
of
oil
temperature
What advantage does a thermocouple have over the NTC thermistor?
The
thermocouple
has
high
accuracy
as
compared
to
the
thermistor.
The
thermistor
has
lead
whose
resistance
reduces
their
accuracy.
The
temperature
measuring
ranges
of
the
thermistor
is
-50°C
to
250°C
whereas
that
of
the
thermocouple
is
-200°C
to
1250°C.
Parameters Of The Ring NTC Thermistor
| Name | Ring NTC Thermistor |
| Shape | Ring |
| Outer diameter | 5.9~6.3mm |
| Inner diameter | 3.0~3.2mm |
| Operating Temperature Range | -40 ～ +160℃ |
|
Max. Permissible Current |
100mA |
| Max. Operation Current | 10mA |
| MOQ | 1000PCS |
| MPQ | 500PCS PER BAG |
| PACKAGE | BULK |
Dimension Of The Ring NTC Thermistor (mm)
| Disc | Tolerance |
| Φ | 6.1±0.2mm |
| Φ1 | 3.1±0.1mm |
Resistance Range Of The Ring NTC Thermistor
| NO. | R25 | R50 | R60 | *R80 | R100 | R108 | R110 | R113 | R115 | R120 |
| Resistance Range(Ohms) | 728-764 | 216-264 | 148.5-180.5 | 74.6-90.6 | 40.6-48.6 | 34-38 | 32-36 | 30-34 | 25.7-31.7 | 23-27 |

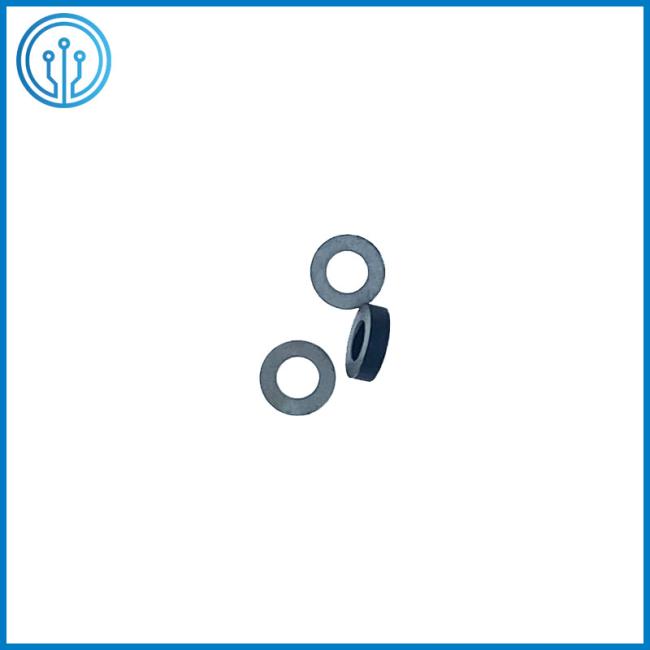

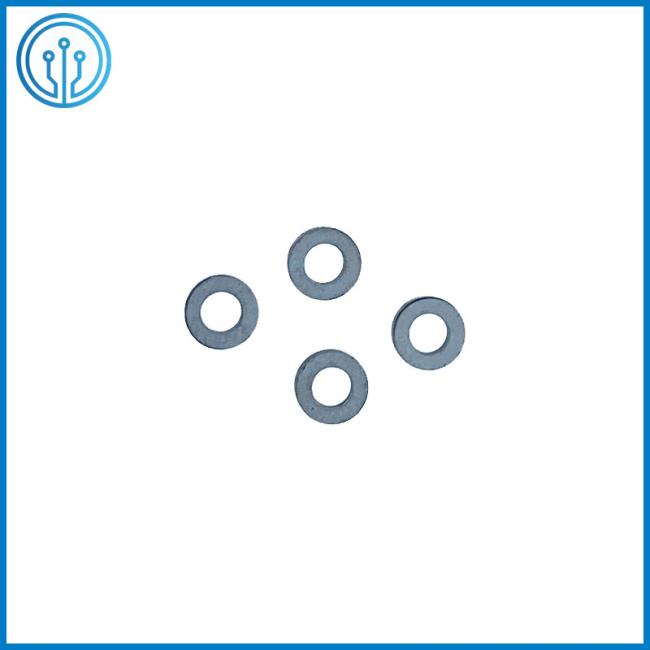

Actual Photos Of The Ring NTC Thermistor
