| Price | 1~1.2 USD/PC |
| MOQ | 2000PCS |
| Delivery Time | 7 workdays |
| Brand | AMPFORT |
| Place of Origin | Dongguan,China |
| Certification | CUL,CUL,REACH,ROHS |
| Model Number | 5T2050 |
| Packaging Details | Tape,1000/1500/2000pcs per reel |
| Payment Terms | Telegraphic Transfer |
| Supply Ability | 500,000,000PCS Per Month |
| Speed | Slow blow | Operating Temperature | -55°C to 125°C |
| Place of Origin | Dongguan,China | UL File Number | E340427 |
| Packaging Details | Tape,1000/1500/2000pcs per reel | Standard | UL 248-14 |
| Model Number | 5T2050 | Supply Ability | 500,000,000PCS Per Month |
| Certification | CUL,CUL,REACH,ROHS | Name | Surface Mount Brick Fuse |
| Brand Name | AMPFORT | Payment Terms | Telegraphic Transfer |
| Small size | 20.5mm*5.06mm | Price | 1~1.2 USD/PC |
| Delivery Time | 7 workdays | Minimum Order Quantity | 2000PCS |
| Max. Voltage | 700V | Current range | 200mA-60A |
| Min. Voltage | 32V | Breaking Capacity | 1000A Max. |
5x20mm One Time Square Ceramic Surface Mount Brick Fuse 5T NANO2 200mA-60A With UL CUL Certificates
Description Of The Surface Mount Brick Fuse 5T
AMPFORT New product-2050 series Time-Lag square Surface Mount fuses are ceramic tube/end cap constructions,RoHS compliant, Halogen Free and lead(Pb) exempts of the requirements of RoHS Directive(2002/95/EC), with U.S. (UL/CUL) safety agency approvals. Provide board level primary and secondary circuit protection in a wide variety of applications. With excellent inrush current withstanding capability, excellent reliability for thermal and mechanic shock, also have a high reliability and stable solder ability, end caps are available in gold/silver/nickel plated.
Features Of The Surface Mount Brick Fuse 5T
• Time-Lag ( Slow blow )
• Small size(20.5mm*5.06mm)
• Wide range of current rating 200mA-60a available
•
-55°C
to
125°C
operating
temperature
range
•
Low
temperature
de-rating
•
RoHS
compliant
•
Tape
and
Reel
for
automatic
placement
• Conflict free metals
• Surface mount high current fuse
• Fully compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly
• Standards:In accordance with UL 248-14.
• High melting i2t
• Enhanced thermal cycling endurance
Main Specification Of The Surface Mount Brick Fuse 5T
| Category | Circuit Protection Fuses |
| Mfr | AMPFORT |
| Series | 5T2050 |
| Package | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Response Time | Slow Blow |
| Current Range | 200mA-60A |
| Voltage range | 32V-700V |
| Package / Case | 20.5mm*5.06mm |
| Breaking Capacity @ Rated Voltage | 1000A |
| Operating Temperature | -55°C ~ 125°C |
| ECCN | EAR99 |
| HTSUS | 8536.10.0040 |
| RoHS Status | ROHS3 Compliant |
Application Of The Surface Mount Brick Fuse 5T
■ Voltage regulator module for PC server
■ Cooling fan system for PC server
■ Storage system power
■ Basestation power supply
■ LED lighting
■ Notebook PC
■ Battery devices
■
LCD/PDP
devices
■
LCD
backlight
inverter
■ Portable Devices
■ Power supply
■
Networking
devices
■
PC
server
■ Cooling fan system
■ Storage system
■
Telecom
system
■
Wireless
base
station
■ White goods
■ Game console
■
Office
equipment
■
Digital
camera
■ Industrial equipment
■ Medical equipment
■ Automotive devices

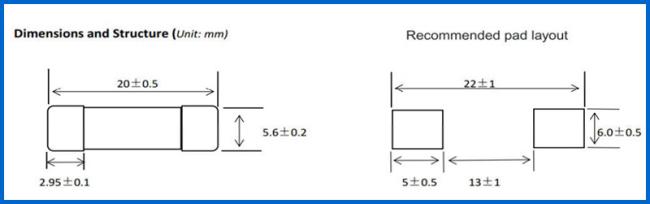

Dimension Of The Surface Mount Brick Fuse 5T (mm)

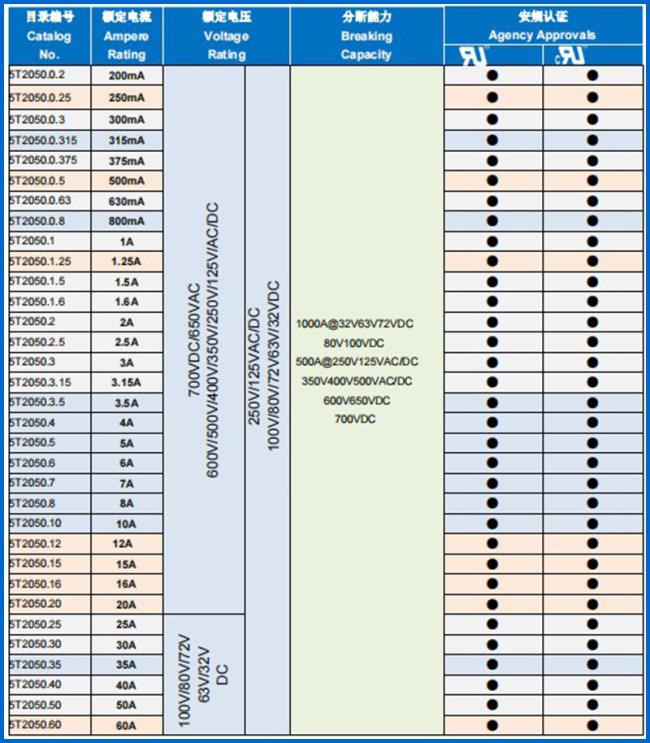

Selection Table Of The Surface Mount Brick Fuse 5T
Certifications Of The Surface Mount Brick Fuse 5T
