| Price | 0.78~0.9USD/PC |
| MOQ | 1000PCS |
| Delivery Time | 10 workdays |
| Brand | AMPFORT |
| Place of Origin | Dongguan,China |
| Certification | ROHS,REACH,UL |
| Model Number | WBXH-XFS05 |
| Packaging Details | Bulk |
| Payment Terms | T/T IN ADVANCE |
| Supply Ability | 900,000,000PCS PER MONTH |
| Place of Origin | Dongguan,China | Packaging Details | Bulk |
| Color | Black or yellow | Cable length | Customized |
| Material | Modify PVC/Nylon/H62 Copper | Model Number | WBXH-XFS05 |
| Supply Ability | 900,000,000PCS PER MONTH | Certification | ROHS,REACH,UL |
| Name | In-line Fuse Holders | Brand Name | AMPFORT |
| Payment Terms | T/T IN ADVANCE | Price | 0.78~0.9USD/PC |
| Delivery Time | 10 workdays | Rated voltage | 250V/600V |
| Minimum Order Quantity | 1000PCS | Suitable Fuse | 5x20mm |
| Suitable cable | 22-30# | Waterproof level | IP68 |
| Max current | 20A | Plating mateiral | Nickel |
IP68 Waterproof 5x20mm In-line Fuse Holders 20A For Roadway And Street Lighting Applications
Description Of The IP68 Waterproof 5x20mm In-line Fuse Holders
Superior circuit protection in roadway and street lighting applications is key to keeping the lights reliable and safe.
Using
in-line
fuse
holders that
can
adequately
withstand
the
lighting
environment
can
make
it easier
to
apply
superior
circuit
protection.
In
fact,
breakaway
capability
and
submersibility
are
quickly
becoming
preferred
features.
Many
countries
already
mandate breakaway
fuse
holders
in
roadway
lighting
applications
to
ensure safe
disconnection
in
the
event
of
a
knockdown
or
if
maintenance
is required.
Submersibility
and
waterproof
requirements
have
also
been enforced
as
street
lighting
is
prone
to
wet
conditions.
Features Of The IP68 Waterproof 5x20mm In-line Fuse Holders
• 250V 600V Rated
• Up to 20 Amp
• Wide range of solid or stranded copper wire sizes
•
Extensive
wire
terminations
available
to
meet
both
new
installations
and
retrofit/repair
applications
•
Insulating
boots
for
submersibility
come
standard
• Stable, the contact resistance of the product is very small, and it will not affect the normal circuit. The internal terminals are gold-plated to ensure maximum product stability.

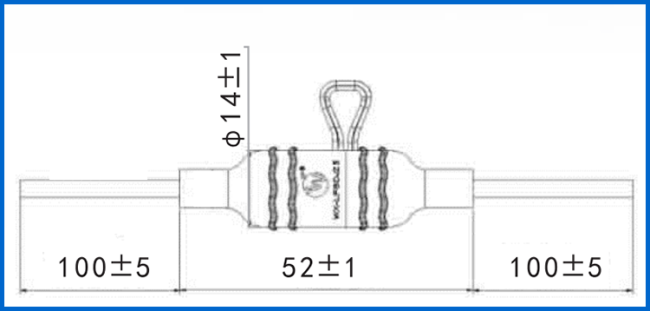

Dimension Of The IP68 Waterproof 5x20mm In-line Fuse Holders (mm)
Main Specification Of The IP68 Waterproof 5x20mm In-line Fuse Holders
| Name | Fuse Holder |
| Fuse Size | 5x20mm |
| Current Range | 1-20A |
| Rated Voltage | 250V/600V |
| Housing Material | Modify PVC/Nylon |
| Contacts | H62 Brass |
| Cable Gauge | 22-30# |
| Plating material | Nickel |
| Waterproof Level | IP68 |
| Model Number | WBXH-XFS05 |
Typical Street Lighting Application Of The IP68 Waterproof 5x20mm In-line Fuse Holders
Fuse holder can be applied to the following products:
1: High current power modules (such as electric vehicles, industrial inverters...)
2: Led outdoor street light, this product can be better waterproof, the product maintenance cost is low, and it can protect the Led light from overheating and overcurrent to the greatest extent.
3: Outdoor outdoor equipment.
Certifications Of The IP68 Waterproof 5x20mm In-line Fuse Holders
