| Name | Thin Film NTC Thermistor | Brand Name | AMPFORT |
| Payment Terms | T/T IN ADVANCE | Price | 0.06~0.2 USD/PC |
| Delivery Time | 10 workdays | Minimum Order Quantity | 5000PCS |
| Standard Beta | 3435/3950/3470 | Temperature range | -40°C to 125°C |
| Resistance tolerance | 1%, 2%, 3%, 5% | Application | Battery pack |
Thin Film NTC Thermistor 10K 50K 100K 11mm 15mm 20mm 25mm 36mm 44mm 45mm 50mm 75mm
Description Of The Thin Film NTC Thermistor 10K 50K 100K
Thin Film Thermistors are flexible, low profile, accurate, and reliable temperature sensors custom tailored to your application. Thin Film Thermistors are encapsulated in flexible polyimide.MF55 thin film temperature measurement type NTC thermistor is a small volume thin film NTC thermistor produced with new materials and new technology, which has the advantages of high precision and fast response.
Features Of The Thin Film NTC Thermistor 10K 50K 100K
1. It adopts imported polyimide package, no air bubbles in the head-up view, and the package is good;
2.
Phosphor
copper
pins,
good
elasticity,
fast
heat
conduction,
2.
It
is
suitable
for
space
temperature
detection
in
flat
and
narrow
areas
(computer
motherboard)
3.
Good
resistance
consistency
and
strong
interchangeability
4.
Other
electrical
parameters
and
sizes
can
be
made
according
to
your
needs
5. Common parameters: 10K, 50K, 100K; common B values: 3435, 3950
6.
Suittable
for
narrow
space
7.
Rapid
response
time
8.
Elastic
and
solder
easily
Application Of The Thin Film NTC Thermistor 10K 50K 100K
CPU temperature detection, battery temperature control, charger, power tube temperature protection, hand warmer and other small appliances temperature control,Battery pack,Printer,Medical devices
Benefits Of The Thin Film NTC Thermistor 10K 50K 100K
*
Perfect
for
temperature
monitoring
in
tight
spaces
such
as
battery
packs,
mobile
devices
and
wearable
tech.
*
100%
tested
during
sensor
chip
manufacturing
and
after
final
assembly
to
ensure
quality
and
reliability
in
the
field.
*
Customizable
with
wire
leads
that
are
soldered
leads
to
the
TF
thermistor
tabs.

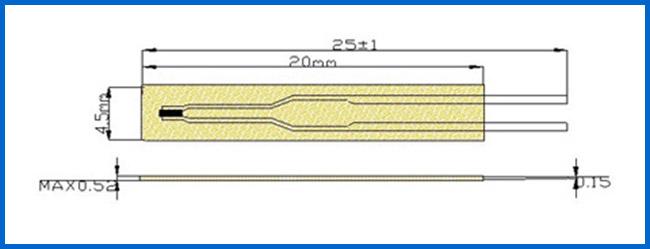

Dimension Of The Thin Film NTC Thermistor 10K 50K 100K (mm)
Main Parameters Of The Thin Film NTC Thermistor 10K 50K 100K
| R(25): | 10k/50k/100k |
| Tolerance: | 1%, 2%, 3%, 5%, 10% |
| B value (25/85): | 3435/3950/3470 |
| Insulation resistance: | ≥100MΩ |
| Thermal time constant: | ≤5s |
| Heat dissipation constant: | ≥3.5mw/℃ |
| Operating temperature range: | -40°C-+ 120°C |
| Model: | MF55/TJ |
| Packing: | Bulk,1000PCS/bag |
| Lead-free: | RoHS compliant,REACH,H/F |
Series Selection Table Of The Thin Film NTC Thermistor 10K 50K 100K
| Model | Rated resistance value | B value | Precision | Operating temperature | ||
| R25 (KΩ) | Precision | (25/50℃) | (25/85℃) | (℃) | ||
| (K) | ||||||
| MF55□502□3270A | 5 | ±1％ ±2％ ±3％ ±5％ | 3270 | / | ±1％ ±2％ | -40～120 |
| MF55□502□3470A | 5 | 3470 | / | |||
| MF55□103□3380A | 10 | 3380 | / | |||
| MF55□103□3435B | 10 | / | 3435 | |||
| MF55□103□3470B | 10 | / | 3470 | |||
| MF55□103□3950A | 10 | 3950 | / | |||
| MF55□103□3975B | 10 | / | 3975 | |||
| MF55□203□3950A | 20 | 3950 | / | |||
| MF55□303□3950A | 30 | 3950 | / | |||
| MF55□473□3950A | 47 | 3950 | / | |||
| MF55□503□3950A | 50 | 3950 | / | |||
| MF55□104□3950A | 100 | 3950 | / | |||
