| Price | 0.07 US$/PC |
| MOQ | 1500PCS |
| Delivery Time | 7 Days |
| Brand | Jingqin |
| Place of Origin | Guangdong,China |
| Certification | TUV,UL,CQC |
| Model Number | 4032K431 |
| Packaging Details | Tape,1500pcs per reel,6 reel per carton,MEAS:42x42x20cm |
| Payment Terms | T/T, Western Union,Paypal |
| Supply Ability | 1,000,000pcs per day |
| Place of Origin | Guangdong,China | UL File No | E523420 |
| Size | 4032(11*8.2mm) | Packaging Details | Tape,1500pcs per reel,6 reel per carton,MEAS:42x42x20cm |
| TUV File No | B 112025 0002 | Model Number | 4032K431 |
| Mounting Type | Surface Mount | Supply Ability | 1,000,000pcs per day |
| Certification | TUV,UL,CQC | Name | Multilayer Varistor MLV 4032 |
| MPQ | 1500PCS PER REEL | Brand Name | Jingqin |
| Payment Terms | T/T, Western Union,Paypal | Price | 0.07 US$/PC |
| Delivery Time | 7 Days | Package Case | 2-SMD, J-Lead |
| Minimum Order Quantity | 1500PCS | Storage Temperature | -40 ~ +125℃ |
KEMET VP4032K122R275 Equivalent SMD Zinc Oxide Multilayer Varistor MLV 4032 10D431K
Applications Of The SMD Zinc Oxide Multilayer Varistor MLV 4032 10D431K
Typical applications include medical instruments, integrated circuits and transistors, mobile communication, white goods, entertainment electronics, lighting ballast, as well as protection of low and medium voltage boards, remote control and electrical counters and applications that are exposed to humidity.
Applicable Standards Of The SMD Zinc Oxide Multilayer Varistor MLV 4032 10D431K
| 1. | UL1449 |
| 2. | IEC61051-1,-2,-2-2,IEC60950-1 Annex Q |
| 3. | GB/T10193,GB/T10194,GB4943.1,GB8898 |
| 4 | IEC61000-4-5 |
Overview Of The SMD Zinc Oxide Multilayer Varistor MLV 4032 10D431K
AMPFORT's 4032 series of low and medium voltage plasticencapsulated varistors are designed to protect electronic equipment against high voltage surges in the low and medium voltage region. They offer direct surface mount equivalents to leaded disc varistors of 10 mm sizes. The thermoplastic encapsulation is non-flammable according to the standard UL 94 V–0. Contacts are made of tinned copper sheet. These transient voltage suppressors cover an operating voltage Vrms from 130 V to 460 V, featuring maximum surge currents from 2,500 A..
Electrical Characteristics Of The SMD Zinc Oxide Multilayer Varistor MLV 4032 10D431K
| P/N | Varistor Voltage | Max. Continuous Voltage | Max. Clamping Voltage |
Max. Surge Current |
Max. Energy10/1000μs | Rated Power |
Ref. Capacitance @1KHZ |
||
| (@1mA DC) | 8/20μs | 8/20μs | |||||||
| V1mA | VAC | VDC | Ip | Vp | I max | W max | P | C(pF) | |
| (V) | (V) | (V) | (A) | (V) | (A) | (J) | (W) | ||
| 4032K201 | 200(180-220) | 130 | 170 | 25 | 340 | 2500 | 25 | 0.4 | 500 |
| 4032K221 | 220(198-242) | 140 | 180 | 25 | 360 | 2500 | 27 | 0.4 | 450 |
| 4032K241 | 240(216-264) | 150 | 200 | 25 | 395 | 2500 | 30 | 0.4 | 420 |
| 4032K271 | 270(243-297) | 175 | 225 | 25 | 455 | 2500 | 35 | 0.4 | 370 |
| 4032K301 | 300(270-330) | 195 | 250 | 25 | 500 | 2500 | 40 | 0.4 | 330 |
| 4032K331 | 330(297-363) | 210 | 275 | 25 | 550 | 2500 | 42 | 0.4 | 300 |
| 4032K361 | 360(324-396) | 230 | 300 | 25 | 595 | 2500 | 45 | 0.4 | 280 |
| 4032K391 | 390(351-429) | 250 | 320 | 25 | 650 | 2500 | 50 | 0.4 | 260 |
| 4032K431 | 430(387-473) | 275 | 350 | 25 | 710 | 2500 | 55 | 0.4 | 230 |
| 4032K471 | 470(423-517) | 300 | 385 | 25 | 775 | 2500 | 60 | 0.4 | 210 |
| 4032K511 | 510(459-561) | 320 | 410 | 25 | 845 | 2500 | 67 | 0.4 | 200 |
| 4032K561 | 560(504-616) | 350 | 450 | 25 | 930 | 2500 | 69 | 0.4 | 180 |
| 4032K621 | 620(558-682) | 395 | 510 | 25 | 1020 | 2500 | 70 | 0.4 | 160 |
| 4032K681 | 680(612-748) | 420 | 560 | 25 | 1120 | 2500 | 72 | 0.4 | 150 |
| 4032K751 | 750(675-825) | 460 | 615 | 25 | 1235 | 2500 | 75 | 0.4 | 130 |
Note:
*1.
UL1449
4th
file
on:
E523420
*2.
TUV:
IEC
61051
file
no:
B
112025
0002
REV.00
Package Of The SMD Zinc Oxide Multilayer Varistor MLV 4032 10D431K
MPQ:1500PCS
PER
REEL
6
REEL
PER
CARTON,TOTAL
QUANTITY
IS
9000PCS.
CARTON
MEAS
:
42x42x20cm

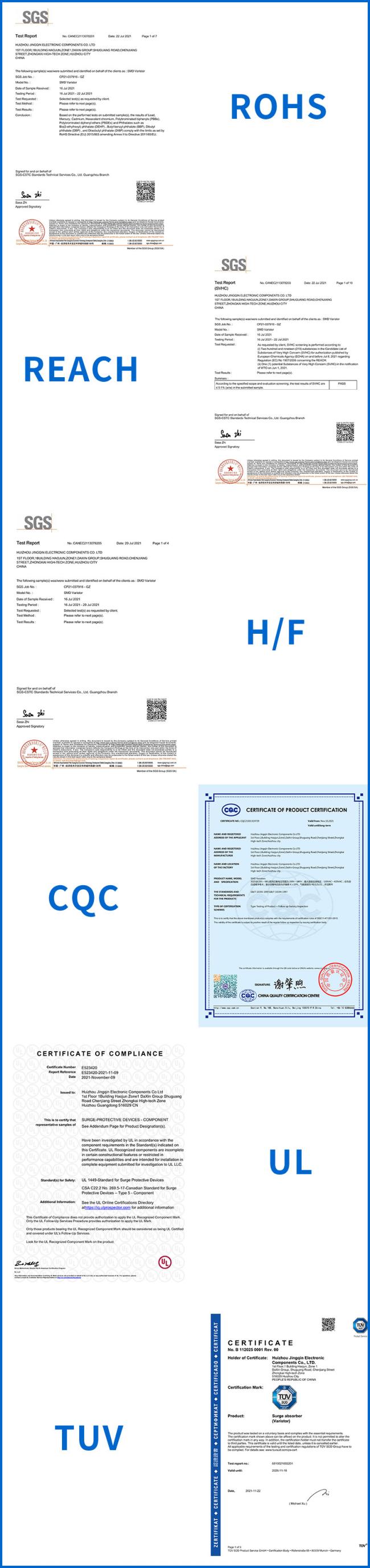

Agency Approvals Of The SMD Zinc Oxide Multilayer Varistor MLV 4032 10D431K
