Plastic Housing MOV MYG Block Metal Oxide Varistor Ceramic High Energy MOV

High Duty Plastic Housing Block Metal Oxide Varistor MOV MYG MYE20-911A 20KA 910V

Description Of The Block Metal Oxide Varistor MOV MYG MYE20-911A

The MYE varistor is a series of varistors designed for heavy-duty industrial electrical products that require extremely high surge withstand capabilities and poor working environment. They consist of a zinc oxide varistor with a larger diameter and a flame-retardant shell. The internal potting is composed of flame-retardant insulation and explosion-proof materials, which can provide excellent surge protection. With reliable lead-out terminals, it is widely used in automatic industrial equipment, power control, power transmission, communication equipment, water supply systems, petroleum equipment, mining equipment, railway signal systems, etc.

Structural features and packaging methods Of The Block Metal Oxide Varistor MOV MYG MYE20-911A

- Varistor structure: The varistor with high-strength screw holes is installed in a flame-retardant plastic shell;
- Encapsulation materials: filled with flame-retardant, insulating, and explosion-proof potting materials, the shell and filling materials are in compliance with UL94V-0;
- Electrode lead: tinned copper plate;
- Packing method: boxed

- Safety certificate:UL, CE and other safety certifications

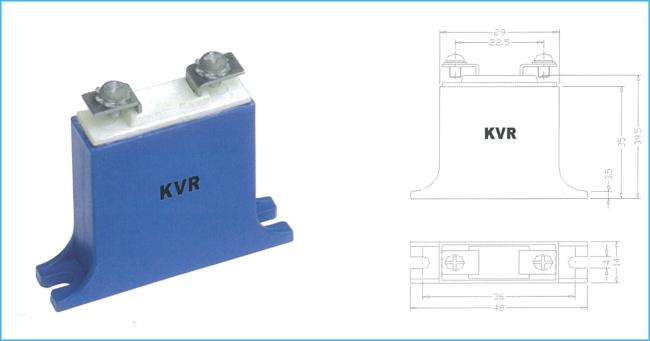

Dimension Of The Block Metal Oxide Varistor MOV MYG MYE20-911A (mm)

Electrical Specifications Of The Block Metal Oxide Varistor MOV MYG MYE20-911A

MYE Series Overview Of The Block Metal Oxide Varistor MOV MYG MYE20-911A

Series	Max pulse current (8/20μs) Imax	Varistor voltage VN	Physical map

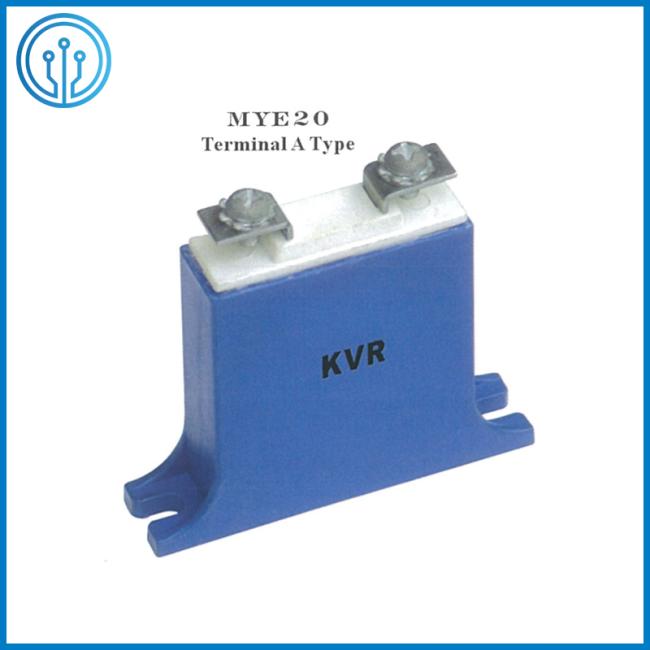

MYE/E20	20KA	200 ~ 1200V

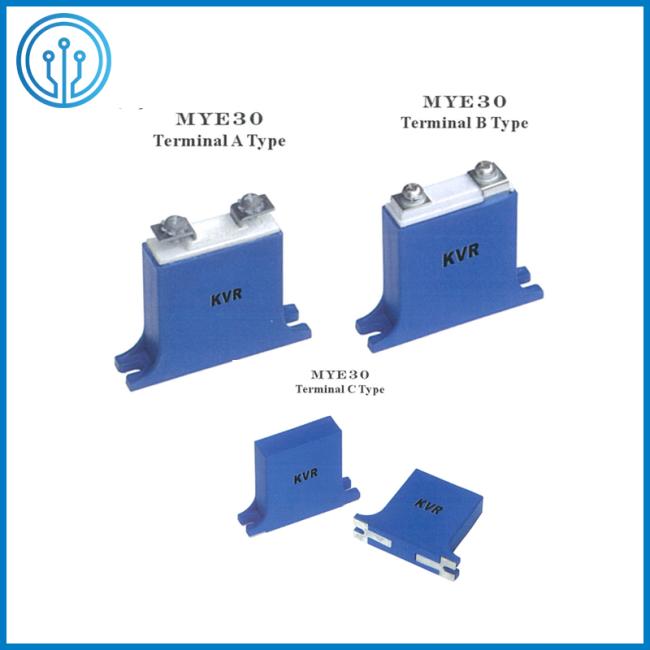

MYE/E30	30KA	200～1200V

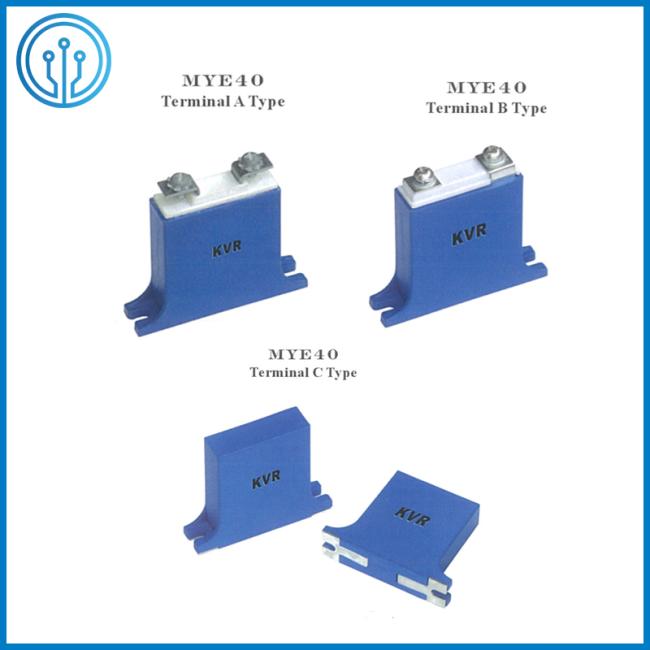

MYE/E40	40KA	200～1200V

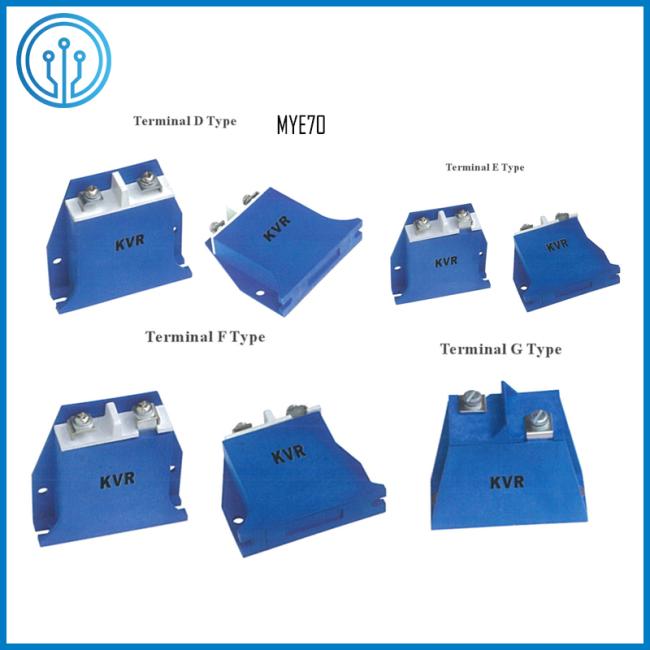

MYE/E70	70KA	200～1200V

Some Ampfort Varistor Cross Reference List
