Ceramic Cartridge Type 5x20mm Fast Blow 500V Surface Mount Fuses 1A 2A

5x20mm Fast Blow High Breaking Capacity Ceramic Cartridge Fuse 500V 1A 2A 3.15A

Description Of The High Breaking Capacity Ceramic Cartridge Fuse 500V 1A 2A 3.15A

5x20mm ceramic cartridge fuses which are designed to prevent damage to electrical equipment. These fuses allow an electric current to flow through until the current goes over the fuses rating then it will blow and stop the flow of electricity. This range of ceramic cartridge fuses are 5 x 20mm with a F speed rating.5.500 series designed for circuit protection in the area of high energy applications.With its DC and AC characteristics, the 5.500 Series is well suited for high energy or power efficient applications and 3-phase power supplies protection respectively.

Application Of The High Breaking Capacity Ceramic Cartridge Fuse 500V 1A 2A 3.15A

Cartridge fuses are a relatively cheap way of protecting electrical equipment from short circuits and overcurrent and can be used to protect electrical appliances such as motors air-conditions, refrigerator, pumps etc. They can be found in the following areas:

- Input of 3 phase Power Supplies
- Inverter in LCD backlight unit
- DC side of air-conditioner unit

- High energy and power efficient applications.

- Industrial Power Supplies LEAD FREE

- DC/DC modules

- Industrial
- Commercial
- Home/Residential
- Automotive

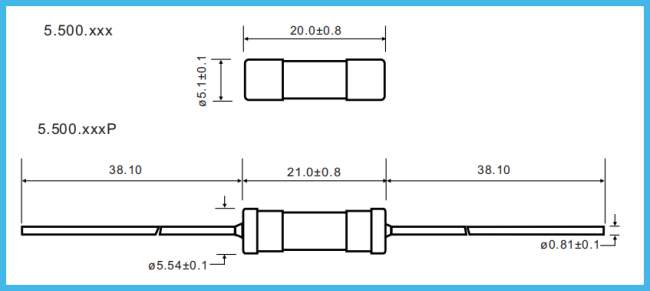

Dimension Of The High Breaking Capacity Ceramic Cartridge Fuse 500V 1A 2A 3.15A  (mm)

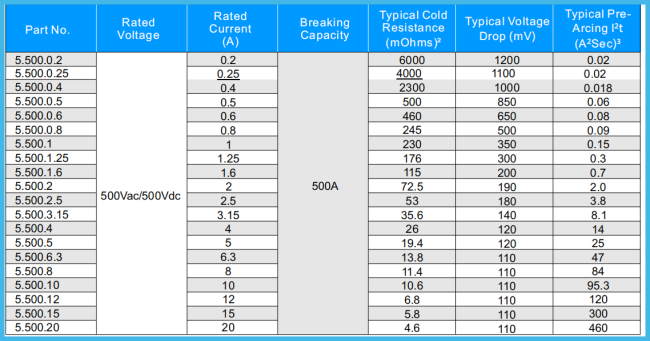

Electrical Characteristcs Of The High Breaking Capacity Ceramic Cartridge Fuse 500V 1A 2A 3.15A

Agency Approvals Of The High Breaking Capacity Ceramic Cartridge Fuse 500V 1A 2A 3.15A

Ordering Info Of The High Breaking Capacity Ceramic Cartridge Fuse 500V 1A 2A 3.15A

Features Of The High Breaking Capacity Ceramic Cartridge Fuse 500V 1A 2A 3.15A

- Fast Acting, high breaking capacity under 500Vac/500Vdc

- Available in cartridge and pigtail axial lead

- Full compliance with EU Directive 2011/65/EU and amending directive 2015/863

- Designed to International (IEC) Standard for use globally.

- Follow the IEC 60127-2, Sheet 5 specification for fast blow fuses

- Available in cartridge and axial lead form

- Ceramic cartridge
- F Speed rated
- 5mm x 20mm cartridge size

- Fast Acting, high breaking capacity under 500Vac/500Vdc
- Ceramic tube, Silver plated copper cap construction
- Designed to UL 248-1
- Lead free and Halogen free material

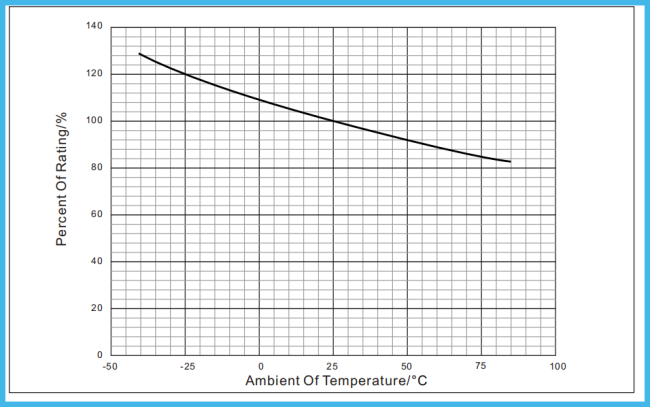

Temperature Derating Curve Of The High Breaking Capacity Ceramic Cartridge Fuse 500V 1A 2A 3.15A

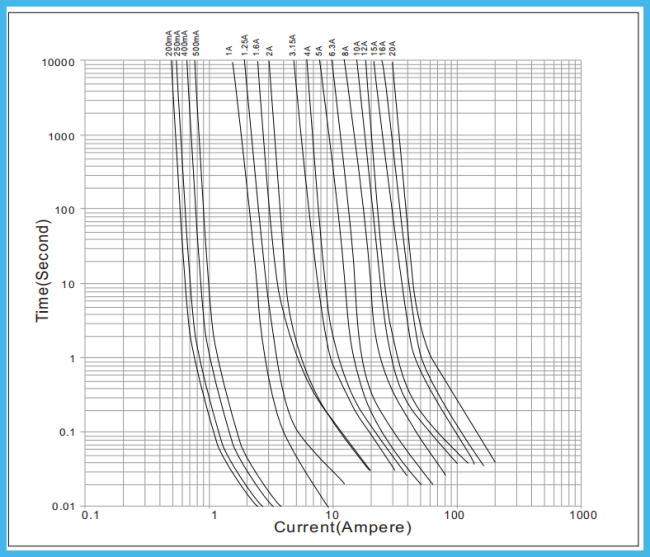

Time Current Curve Of The High Breaking Capacity Ceramic Cartridge Fuse 500V 1A 2A 3.15A

Additional Information Of The High Breaking Capacity Ceramic Cartridge Fuse 500V 1A 2A 3.15A

What size is it?
5x20 mm is a standard cartridge size and it measures approximately 20 mm long by 5 mm in diameter. They are popular in board and panel protection and will fit a compatible 5x20 fuse holder.

What Speed is it?
This particular fuse is “T” speed rated which means it is a slow acting fuse, sometimes referred to as anti-surge. It is able to tolerate higher levels for a short period, without shorting. Therefore, if a sudden change occurs, this fuse will not blow immediately. They are suitable for applications where a sudden flow of high current is required.

What are fuses used for?
• For the protection of components and equipment from costly damage caused by over-current.
• To isolate sub-systems from the main system once a fault has appeared

What is an over-current?
It is a setting where a circuit experiences a current that is higher than the normal operating current.

What is Breaking Capacity?
Breaking capacity is the level of current that the fuse can safely handle without exploding or rupturing. The breaking capacity of your fuse should be greater than the fault current of your electronic circuit. This particular fuse is HBC (High Breaking Capacity).
