1000V Ceramic Tube Surface Mount Fuses

Price	Negotiable
MOQ	800 Pieces
Delivery Time	7-10 Workdays
Brand	AMPFORT
Place of Origin	Dongguan,Guangdong,China
Certification	UL,CUL
Model Number	6.000
Packaging Details	Bulk 200 pcs in per poly bag;10 poly bags in per inner box; 4 inner boxes in per outer carton
Payment Terms	T/T,Paypal, MoneyGram
Supply Ability	8,000,000 Pieces Per Month

Product Details

Product Specification

Speed	Fast Acting	Place of Origin	Dongguan,Guangdong,China
Size	6.35x32mm	Voltage Rating	250~1000V
Packaging Details	Bulk 200 pcs in per poly bag;10 poly bags in per inner box; 4 inner boxes in per outer carton	Product Name	UL CUL Fast Acting Ceramic Fuse 6.35x32mm 1000V 1A
Fuse Type	Ceramic Tube Fuse	Model Number	6.000
Supply Ability	8,000,000 Pieces Per Month	Certification	UL,CUL
Brand Name	AMPFORT	Payment Terms	T/T,Paypal, MoneyGram
Cap	Nickel Plated Brass	Price	Negotiable
Delivery Time	7-10 Workdays	Ampere range	100mA ~ 30A
Minimum Order Quantity	800 Pieces	Application	DC Digital Multi Meter

Product Description

Fast Acting Ceramic Fuse 6.35x32mm 1000V 1A Brass Cap For DC Digital Multi Meter

Description Of The Fast Acting Ceramic Fuse 6.35x32mm 1000V 1A Brass Cap

High voltage ceramic fuse made of ceramic tube , alloy wire and nickel plated brass cap, can be cartridge fuse or axial leaded fuse based on customer requirements. Voltage range from 250V to 1000V,current from 100mA to 30A , UL CUL certificated, suitable for various kinds of electronic devices’ circuit over current protection. Widely used in industrial of Lighting, Power supply, Instrument, Digital multimeter and Adapter applications, etc.

Features Of The Fast Acting Ceramic Fuse 6.35x32mm 1000V 1A Brass Cap

* Rated 1A 1000V DC fast acting / fast blow ceramic cartridge fuse
* End caps constructed of high conductivity nickel-plated brass
* 6.3 x 32mm (1/4" x 1-1/4") overall dimensions
* UL/CSA 248-14 compliant design ensures low breaking capacity
* Compatible with Klein multi meters. Also compatible with a variety of other digital multi meter (DMM) fuses

* Replacement fuse for use with Klein Tools' MM600 and MM700 Multimeters

* Provides longer lasting performance and greater safety

* Fast-acting ceramic fuse

* Reduces the possibility of internal arc flashes

* Breaking Capacity:
1000A@1000V/DC (100mA~30A);
10000A@1000V AC/DC (100mA~12A);

Cutoff Time Standard Of The Fast Acting Ceramic Fuse 6.35x32mm 1000V 1A Brass Cap

% of Ampere Rating(In)	Blowing Time
100%* In	4 hours Min
200%* In	60 sec Max

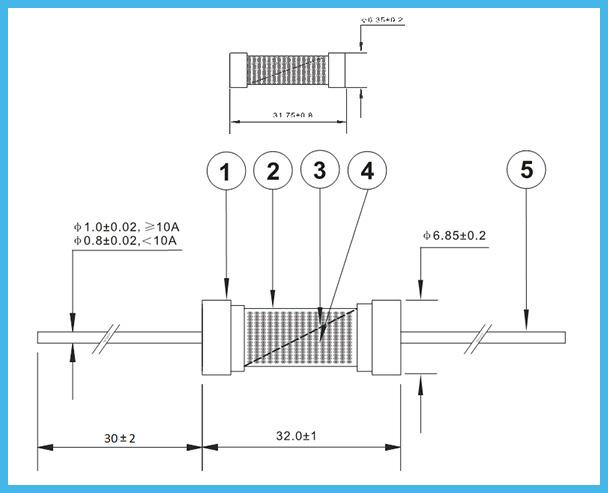

Dimension Of The Fast Acting Ceramic Fuse 6.35x32mm 1000V 1A Brass Cap

Specification Of The Fast Acting Ceramic Fuse 6.35x32mm 1000V 1A Brass Cap

Part No.	Ampere Rating	Voltage Rating	Breaking Capacity	I2TMelting Integral(A2.S)	Agency Approvals
Part No.	Ampere Rating	Voltage Rating	Breaking Capacity	I2TMelting Integral(A2.S)
6.000.0100A	100mA	1000V	1000A@1000V/DC (100mA~30A); 10000A@1000V AC/DC (100mA~12A); ; 1000A@1000V/DC (100mA~30A); 10000A@1000V AC/DC (100mA~12A);	0.003	●	●	○	○
6.000.0160A	160mA	1000V		0.008	●	●	○	○
6.000.0200A	200mA	1000V		0.02	●	●	○	○
6.000.0250A	250mA	1000V		0.026	●	●	○	○
6.000.0300A	300mA	1000V		0.047	●	●	○	○
6.000.0315A	315mA	1000V		0.055	●	●	○	○
6.000.0350A	350mA	1000V		0.072	●	●	○	○
6.000.0400A	400mA	1000V		0.10	●	●	○	○
6.000.0500A	500mA	1000V		0.16	●	●	○	○
6.000.0600A	600mA	1000V		0.25	●	●	○	○
6.000.0630A	630mA	1000V		0.28	●	●	○	○
6.000.0750A	750mA	1000V		0.49	●	●	○	○
6.000.0800A	800mA	1000V		0.60	●	●	○	○
6.000.1100A	1A	1000V		0.8	●	●	○	○
6.000.1125A	1.25A	1000V		1.6	●	●	○	○
6.000.1150A	1.5A	1000V		2.5	●	●	○	○
6.000.1160A	1.6A	1000V		3.2	●	●	○	○
6.000.1200A	2A	1000V		5.6	●	●	○	○
6.000.1250A	2.5A	1000V		7.6	●	●	○	○
6.000.1300A	3A	1000V		14	●	●	○	○
6.000.1315A	3.15A	1000V		19	●	●	○	○
6.000.1350A	3.5A	1000V		20	●	●	○	○
6.000.1400A	4A	1000V		25	●	●	○	○
6.000.1500A	5A	1000V		42	●	●	○	○
6.000.1600A	6A	1000V		80	●	●	○	○
6.000.1630A	6.3A	1000V		96	●	●	○	○
6.000.1800A	8A	1000V		200	●	●	○	○
6.000.2100A	10A	1000V		320	●	●	○	○
6.000.2120A	12A	1000V		470	●	●	○	○
6.000.2150A	15A	1000V		650	●	●	○	○
6.000.2160A	16A	1000V		680	●	●	○	○
6.000.2200A	20A	1000V		870	●	●	○	○
6.000.2250A	25A	1000V		1320	●	●	○	○
6.000.2300A	30A	1000V		1720	●	●	○	○

High Voltage Ceramic Fuse Family

High Voltage Ceramic Fuse Family
Series	Fuse Type	Size	Blow Type	Current Range	Voltage	Approvals	End cap
5.300.F	Ceramic Fuse	5x20mm	Fast Blow	100mA ~ 30A	300V	UL/cUL	Nickel Plated Brass
5.300.T	Ceramic Fuse	5x20mm	Slow Blow	100mA ~ 30A	300V	UL/cUL	Nickel Plated Brass
5.500.F	Ceramic Fuse	5x20mm	Fast Blow	100mA ~ 20A	500V	UL/cUL	Nickel Plated Brass
5.500.T	Ceramic Fuse	5x20mm	Slow Blow	100mA ~ 20A	500V	UL/cUL	Nickel Plated Brass
5.500.F	Ceramic Fuse	5x20mm	Fast Blow	100mA ~ 20A	700V	UL/cUL	Nickel Plated Brass
5.500.T	Ceramic Fuse	5x20mm	Slow Blow	100mA ~ 20A	700V	UL/cUL	Nickel Plated Brass
6.300.F	Ceramic Fuse	6.35x32mm	Fast Acting	100mA ~ 50A	300V	UL/cUL	Nickel Plated Brass
6.300.T	Ceramic Fuse	6.35x32mm	Time-Lag	100mA ~ 50A	300V	UL/cUL	Nickel Plated Brass
6.500.F	Ceramic Fuse	6.35x32mm	Quick Acting	100mA ~ 30A	500V	UL/cUL	Nickel Plated Brass
6.500.T	Ceramic Fuse	6.35x32mm	Time Delay	100mA ~ 30A	500V	UL/cUL	Nickel Plated Brass
6.600.F	Ceramic Fuse	6.35x32mm	Quick Acting	100mA ~ 30A	600V	UL/cUL	Nickel Plated Brass
6.600.T	Ceramic Fuse	6.35x32mm	Time Delay	100mA ~ 30A	600V	UL/cUL	Nickel Plated Brass
6.750.F	Ceramic Fuse	6.35x32mm	Quick Acting	100mA ~ 30A	750V	UL/cUL	Nickel Plated Brass
6.750.T	Ceramic Fuse	6.35x32mm	Time Delay	100mA ~ 30A	750V	UL/cUL	Nickel Plated Brass
6.000.F	Ceramic Fuse	6.35x32mm	Quick Acting	100mA ~ 30A	1000V	UL/cUL	Nickel Plated Brass
6.000.T	Ceramic Fuse	6.35x32mm	Time Delay	100mA ~ 30A	1000V	UL/cUL	Nickel Plated Brass

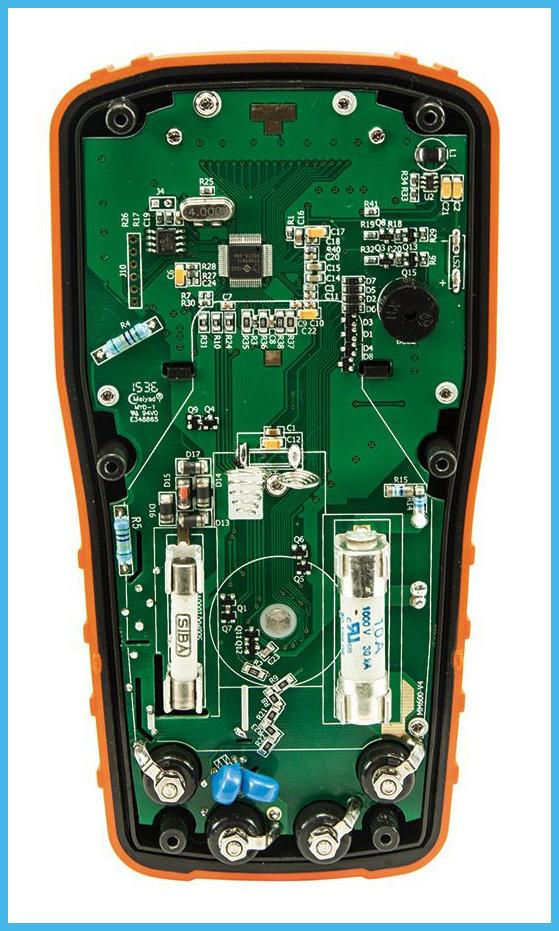

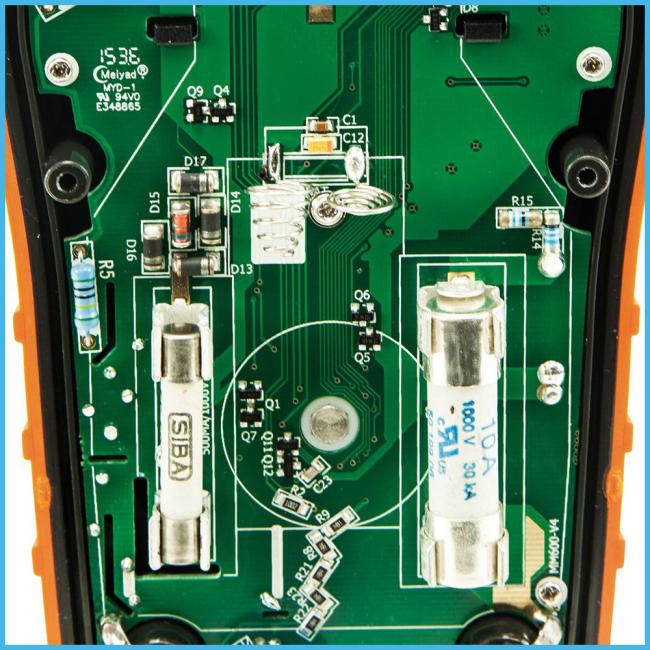

Application Example Photo Of The Fast Acting Ceramic Fuse 6.35x32mm 1000V 1A Brass Cap
