Spring Inside Quick Acting Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven
Description Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven
AFT720 series high voltage fuse designed as IEC-60127-2/Ⅳ standard, fast acting and voltage can up to 5000V , mainly used in over-current protection circuits of microwave oven.It can be cartridge fuse or axial leaded fuse , also suitable fuse holder available here.
Features Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven
• High voltage fuse, mainly used for microwave ovens
• Glass tube, nickel plated end caps

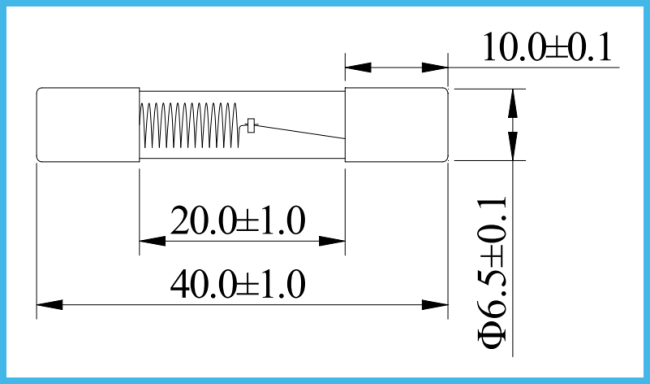

• 6.5mm x 40mm physical dimensions
• TUV Certificated
• Voltage is up to 5000V
• Current range 400mA to 1A
• Operating Temperature -55℃ to +125℃
• Protection against harmful over-currents in primary and secondary applications.
• Lead-free, Halogen-free, RoHS compliant
• Designed compliant to IEC-60127-2/Ⅳ
MECHANICAL SPECIFICATIONS Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven
| P/N | AFT720 |
| Time - current features | Fast-Acting(F) |
| Standard | IEC-60127-2/Ⅳ |
| Solderability | 260℃,≤10s,(Wave) 350℃,≤3s, (manual) |
| Spring | silver plated brass |
| Metal cap | nickel plated brass amplitude |
| Fuse Body | glass tube |
| Acceleration | 60-2000 hz in 10 g acceleration |
| Operating Temperature: | -55°C to 125°C |
| Storage Conditions: | +10℃ to +60℃ |
| Relative humidity: | ≤ 75% yearly average without dew, maximum 30 days at 95% |
| Vibration Resistance: | 24 cycles at 15 min. each (60068-6) 10-60Hz at 0.75mm amplitude 60-2000Hz at 10g acceleration |
Time vs Current Characteristics: IEC-60127-2/Ⅳ Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven
| Rated current | 115% | 150% | 200% | 275% | 400% | 1000% |
| 400mA~1A | >4hour | <300sec | <20sec | 20ms~1500ms | 8ms~400ms | ≤80ms |
Electrical Characteristics Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven
| Rated current | Voltage Rating | Voltage Drop(mV) Max | Nominal Melting I²t(A²sec) |
TUV Y / N |
| 400mA | 5,000V | 1500 | 0.70 | N |
| 500mA | 5,000V | 1500 | 0.76 | N |
| 550mA | 5,000V | 1500 | 0.81 | N |
| 600mA | 5,000V | 1500 | 0.96 | Y |
| 650mA | 5,000V | 1500 | 1.00 | Y |
| 700mA | 5,000V | 1500 | 0.90 | Y |
| 750mA | 5,000V | 1500 | 1.56 | Y |
| 800mA | 5,000V | 1000 | 1.69 | Y |
| 850mA | 5,000V | 1000 | 1.90 | Y |
| 900mA | 5,000V | 1000 | 2.22 | Y |
| 1,000mA | 5,000V | 1000 | 2.34 | N |
Note: Permissible continuous operating current is ≤100% at ambient temperature of 23°C (73.4°F)

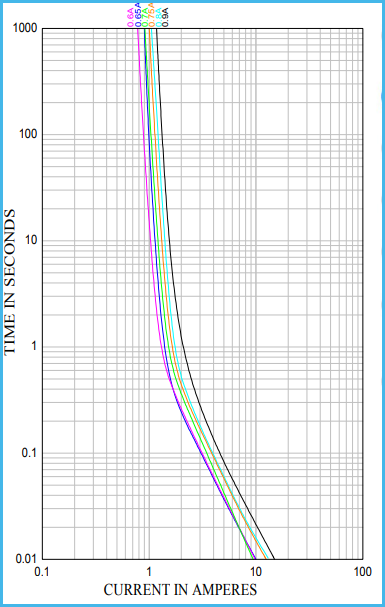

Average Time Current (I-T Curves) Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven

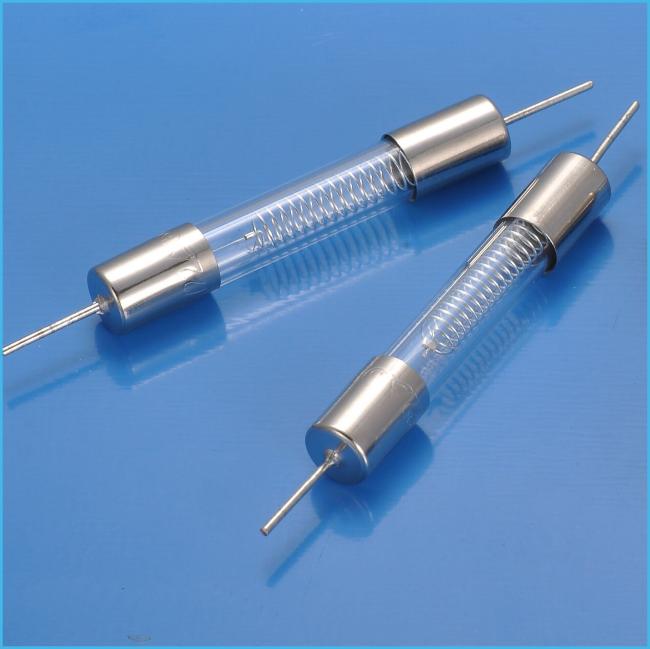

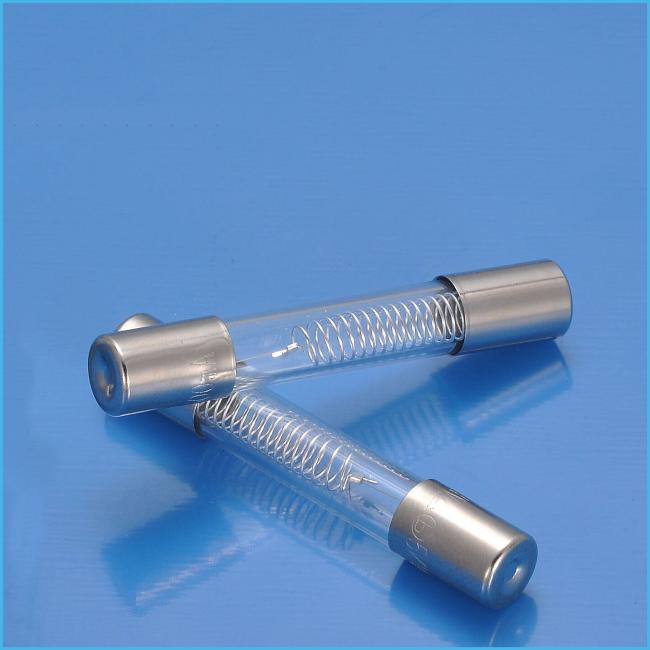

Actual Product Image Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven

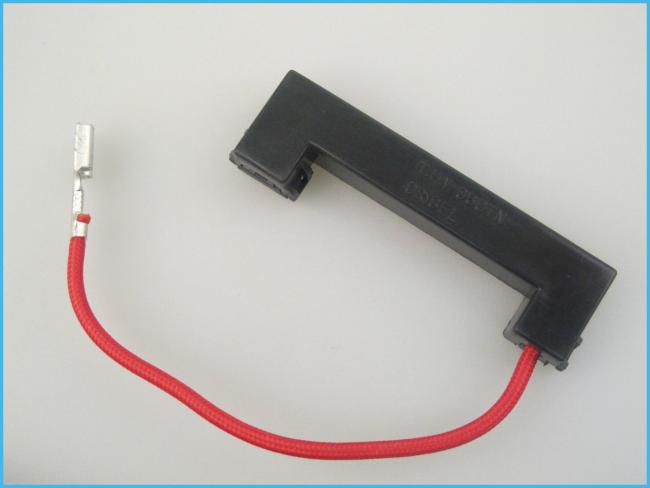

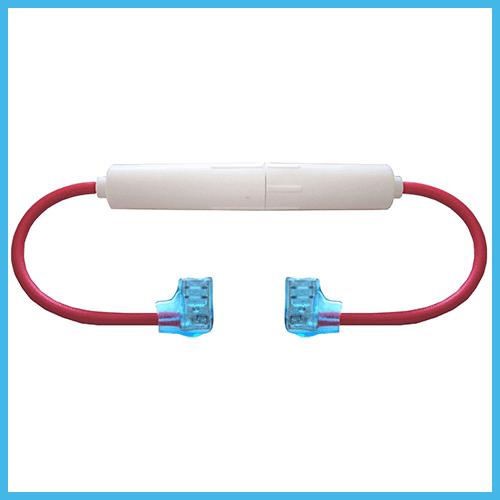

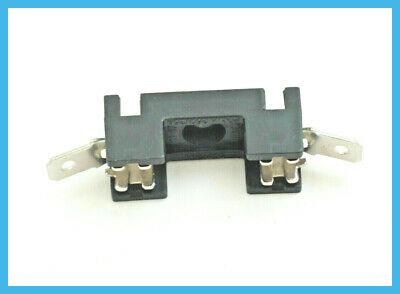

Suitable Fuse Holder Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven

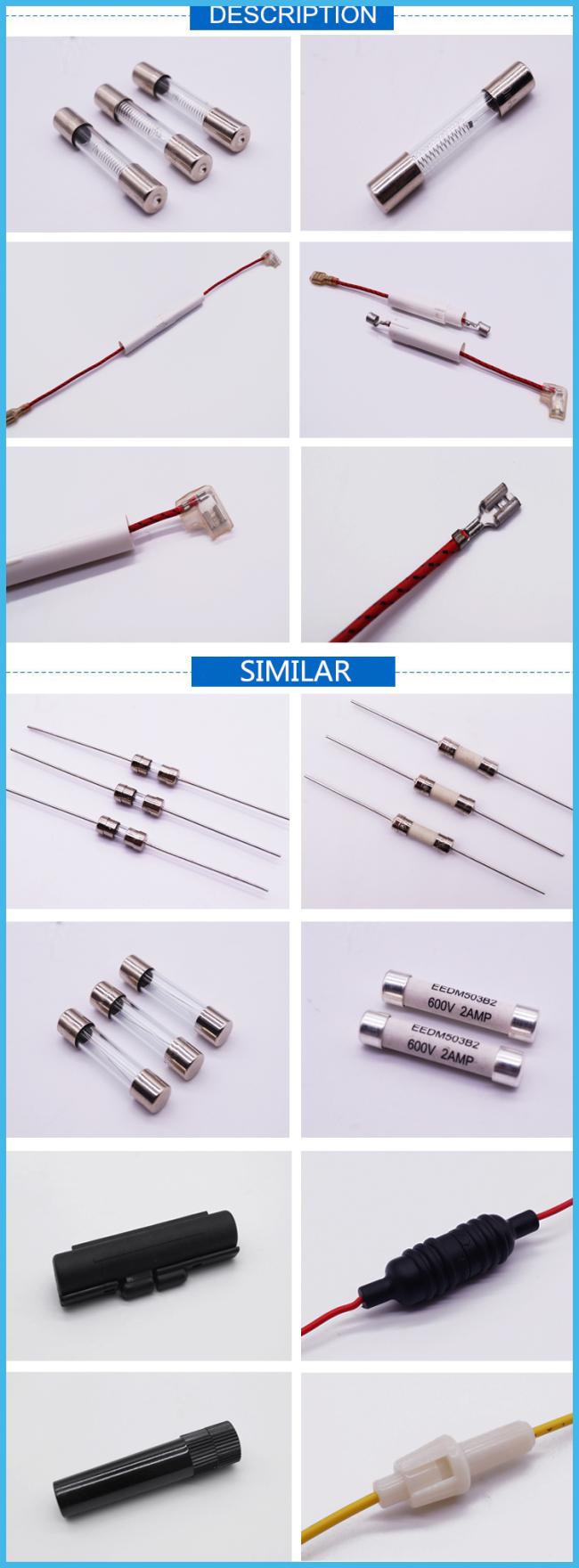

More Product Of The Glass Tube Cartridge Fuse 5KV 6.5x40mm For Microwave Oven
